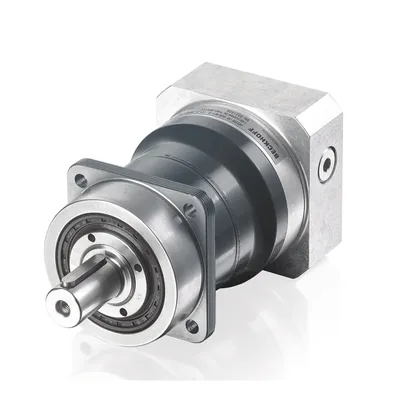

AG2300-+SP140S Parts
Compare AG2300-+SP140S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP140S-MC1-10 | high-speed MC | 195 Nm | 380 Nm | 10 | ≤ 4/2 arcmin |
| AG2300-+SP140S-MC1-3 | high-speed MC | 127 Nm | 310 Nm | 3 | ≤ 4/2 arcmin |
| AG2300-+SP140S-MC1-4 | high-speed MC | 195 Nm | 480 Nm | 4 | ≤ 4/2 arcmin |
| AG2300-+SP140S-MC1-5 | high-speed MC | 182 Nm | 480 Nm | 5 | ≤ 4/2 arcmin |
| AG2300-+SP140S-MC1-7 | high-speed MC | 187 Nm | 480 Nm | 7 | ≤ 4/2 arcmin |
| AG2300-+SP140S-MC2-100 | high-speed MC | 304 Nm | 380 Nm | 100 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-16 | high-speed MC | 277 Nm | 480 Nm | 16 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-20 | high-speed MC | 297 Nm | 480 Nm | 20 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-25 | high-speed MC | 298 Nm | 480 Nm | 25 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-28 | high-speed MC | 328 Nm | 480 Nm | 28 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-35 | high-speed MC | 329 Nm | 480 Nm | 35 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-40 | high-speed MC | 364 Nm | 480 Nm | 40 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-50 | high-speed MC | 367 Nm | 480 Nm | 50 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MC2-70 | high-speed MC | 304 Nm | 480 Nm | 70 | ≤ 6/4 arcmin |
| AG2300-+SP140S-MF1-10 | standard MF | 327 Nm | 636 Nm | 10 | ≤ 3/1 arcmin |
| AG2300-+SP140S-MF1-3 | standard MF | 202 Nm | 468 Nm | 3 | ≤ 3/1 arcmin |
| AG2300-+SP140S-MF1-4 | standard MF | 355 Nm | 792 Nm | 4 | ≤ 3/1 arcmin |
| AG2300-+SP140S-MF1-5 | standard MF | 333 Nm | 792 Nm | 5 | ≤ 3/1 arcmin |
| AG2300-+SP140S-MF1-7 | standard MF | 319 Nm | 792 Nm | 7 | ≤ 3/1 arcmin |
| AG2300-+SP140S-MF2-100 | standard MF | 466 Nm | 583 Nm | 100 | ≤ 5/3 arcmin |
| AG2300-+SP140S-MF2-16 | standard MF | 461 Nm | 726 Nm | 16 | ≤ 5/3 arcmin |
| AG2300-+SP140S-MF2-20 | standard MF | 493 Nm | 726 Nm | 20 | ≤ 5/3 arcmin |
| AG2300-+SP140S-MF2-25 | standard MF | 489 Nm | 670 Nm | 25 | ≤ 5/3 arcmin |
| AG2300-+SP140S-MF2-28 | standard MF | 545 Nm | 726 Nm | 28 | ≤ 5/3 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
