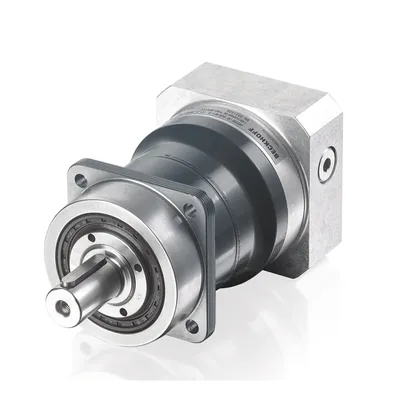

AG2300-+SP210S Parts
Compare AG2300-+SP210S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP210S-MC1-10 | high-speed MC | 960 Nm | 1200 Nm | 10 | ≤ 4/2 arcmin |
| AG2300-+SP210S-MC1-4 | high-speed MC | 1260 Nm | 2000 Nm | 4 | ≤ 4/2 arcmin |
| AG2300-+SP210S-MC1-5 | high-speed MC | 1141 Nm | 2000 Nm | 5 | ≤ 4/2 arcmin |
| AG2300-+SP210S-MC1-7 | high-speed MC | 1169 Nm | 1700 Nm | 7 | ≤ 4/2 arcmin |
| AG2300-+SP210S-MC2-100 | high-speed MC | 960 Nm | 1200 Nm | 100 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-16 | high-speed MC | 898 Nm | 1680 Nm | 16 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-20 | high-speed MC | 728 Nm | 1800 Nm | 20 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-25 | high-speed MC | 910 Nm | 2000 Nm | 25 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-28 | high-speed MC | 744 Nm | 1680 Nm | 28 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-35 | high-speed MC | 929 Nm | 1920 Nm | 35 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-40 | high-speed MC | 787 Nm | 1040 Nm | 40 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-50 | high-speed MC | 984 Nm | 1300 Nm | 50 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MC2-70 | high-speed MC | 1360 Nm | 1700 Nm | 70 | ≤ 5/4 arcmin |
| AG2300-+SP210S-MF1-10 | standard MF | 1708 Nm | 2280 Nm | 10 | ≤ 3/1 arcmin |
| AG2300-+SP210S-MF1-4 | standard MF | 1895 Nm | 3000 Nm | 4 | ≤ 3/1 arcmin |
| AG2300-+SP210S-MF1-5 | standard MF | 1767 Nm | 3000 Nm | 5 | ≤ 3/1 arcmin |
| AG2300-+SP210S-MF1-7 | standard MF | 1731 Nm | 2880 Nm | 7 | ≤ 3/1 arcmin |
| AG2300-+SP210S-MF2-100 | standard MF | 1634 Nm | 2043 Nm | 100 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-16 | standard MF | 1274 Nm | 2880 Nm | 16 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-20 | standard MF | 1266 Nm | 3000 Nm | 20 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-25 | standard MF | 1567 Nm | 3000 Nm | 25 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-28 | standard MF | 1294 Nm | 2880 Nm | 28 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-35 | standard MF | 1599 Nm | 2880 Nm | 35 | ≤ 5/3 arcmin |
| AG2300-+SP210S-MF2-40 | standard MF | 1358 Nm | 2840 Nm | 40 | ≤ 5/3 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
