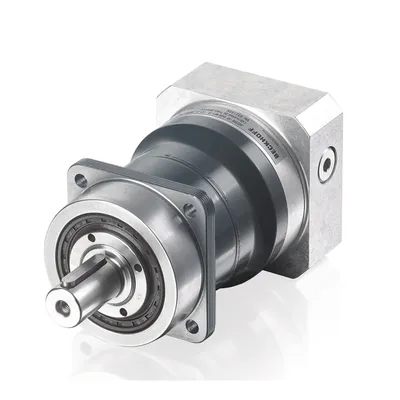

AG2300-+SP240S Parts
Compare AG2300-+SP240S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP240S-MC1-10 | high-speed MC | 1440 Nm | 1800 Nm | 10 | ≤ 4/2 arcmin |
| AG2300-+SP240S-MC1-4 | high-speed MC | 2029 Nm | 3500 Nm | 4 | ≤ 4/2 arcmin |
| AG2300-+SP240S-MC1-5 | high-speed MC | 1861 Nm | 3600 Nm | 5 | ≤ 4/2 arcmin |
| AG2300-+SP240S-MC1-7 | high-speed MC | 1910 Nm | 2700 Nm | 7 | ≤ 4/2 arcmin |
| AG2300-+SP240S-MC2-100 | high-speed MC | 1440 Nm | 1800 Nm | 100 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-16 | high-speed MC | 1950 Nm | 3500 Nm | 16 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-20 | high-speed MC | 1803 Nm | 3500 Nm | 20 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-25 | high-speed MC | 2266 Nm | 3600 Nm | 25 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-28 | high-speed MC | 1867 Nm | 2900 Nm | 28 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-35 | high-speed MC | 2694 Nm | 3600 Nm | 35 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-40 | high-speed MC | 1344 Nm | 1680 Nm | 40 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-50 | high-speed MC | 1680 Nm | 2100 Nm | 50 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-70 | high-speed MC | 2160 Nm | 2700 Nm | 70 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MF1-10 | standard MF | 2735 Nm | 4000 Nm | 10 | ≤ 3/1 arcmin |
| AG2300-+SP240S-MF1-4 | standard MF | 3038 Nm | 5400 Nm | 4 | ≤ 3/1 arcmin |
| AG2300-+SP240S-MF1-5 | standard MF | 2872 Nm | 5400 Nm | 5 | ≤ 3/1 arcmin |
| AG2300-+SP240S-MF1-7 | standard MF | 2737 Nm | 5160 Nm | 7 | ≤ 3/1 arcmin |
| AG2300-+SP240S-MF2-100 | standard MF | 2914 Nm | 3642 Nm | 100 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-16 | standard MF | 2658 Nm | 5400 Nm | 16 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-20 | standard MF | 2596 Nm | 5400 Nm | 20 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-25 | standard MF | 3198 Nm | 5400 Nm | 25 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-28 | standard MF | 2667 Nm | 5400 Nm | 28 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-35 | standard MF | 3283 Nm | 5400 Nm | 35 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-40 | standard MF | 2803 Nm | 4400 Nm | 40 | ≤ 5/3 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
