AM8562 Parts

Beckhoff

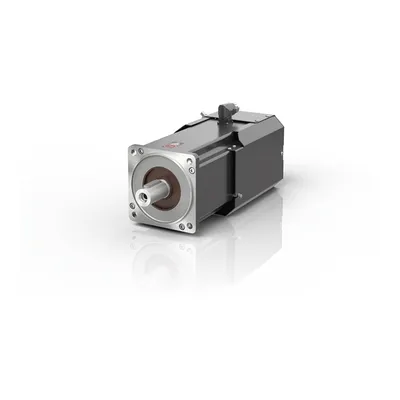

Servomotor with increased moment of inertia 28.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 29.9 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 29.9 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 21.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 21.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 21.1 Nm (M0), F6 (142 mm)

Compare AM8562

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Rated torque	Rated speed	Rated power	Standstill current	Torque constant
AM8562-wRyz	13.4 Nm	5000 min-1	7.00 kW	28.7 A	1.00 Nm/A
AM8562-wNyz	22.2 Nm	3000 min-1	7.00 kW	17.4 A	1.70 Nm/A
AM8562-wKyz	26.4 Nm	1400 min-1	3.87 kW	8.70 A	3.40 Nm/A
AM8562-wPyz	6.50 Nm	5000 min-1	3.40 kW	20.3 A	1.03 Nm/A
AM8562-wLyz	15.2 Nm	3000 min-1	4.78 kW	12.4 A	1.70 Nm/A
AM8562-wJyz	18.5 Nm	1500 min-1	2.91 kW	6.20 A	3.39 Nm/A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Rotor moment of inertia	57.1 kgcm²
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
