AM8561 Parts

Beckhoff

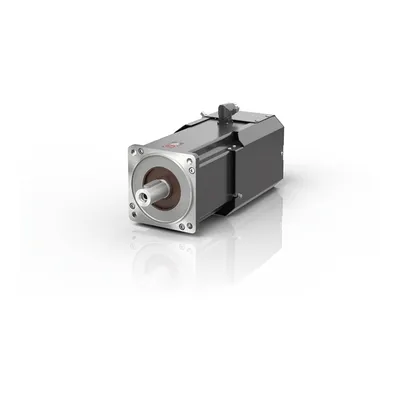

Servomotor with increased moment of inertia 15.5 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 17.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 17.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 12.8 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor with increased moment of inertia 12.8 Nm (M0), F6 (142 mm)

Beckhoff

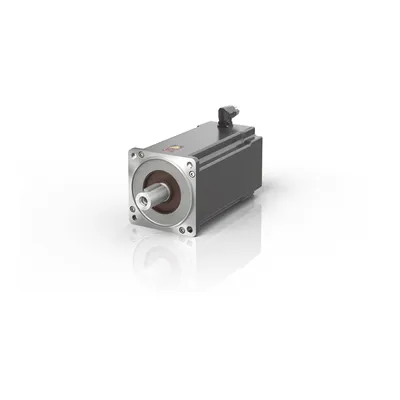

Servomotor with increased moment of inertia 12.8 Nm (M0), F6 (142 mm)

Compare AM8561

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Rated torque	Rated speed	Rated power	Standstill current	Torque constant
AM8561-wNyz	10.7 Nm	5000 min-1	5.60 kW	15.8 A	0.97 Nm/A
AM8561-wLyz	14.7 Nm	3000 min-1	4.60 kW	10.1 A	1.64 Nm/A
AM8561-wHyz	16.1 Nm	1400 min-1	2.36 kW	5.20 A	3.30 Nm/A
AM8561-wMyz	9.00 Nm	5000 min-1	4.71 kW	13.1 A	0.97 Nm/A
AM8561-wJyz	11.0 Nm	3000 min-1	3.46 kW	7.80 A	1.63 Nm/A
AM8561-wGyz	12.1 Nm	1500 min-1	1.90 kW	4.00 A	3.19 Nm/A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Peak torque	37.1 Nm
Rotor moment of inertia	48.2 kgcm²
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Design form	flange-mounted according to IM B5, IM V1, IM V3
