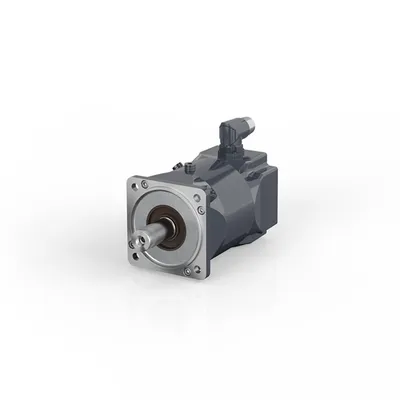

AM8354 Parts
Compare AM8354
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated torque | Rated speed | Rated power | Standstill current | Peak current |
|---|---|---|---|---|---|
| AM8354-wNyz | 34.7 Nm | 1800 min-1 | 6.54 kW | 16.0 A | 37.6 A |
| AM8354-wRyz | 36.6 Nm | 3800 min-1 | 14.6 kW | 32.0 A | 75.3 A |
| AM8354-wTyz | 29.5 Nm | 6500 min-1 | 20.1 kW | 42.2 A | 117 A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 7.86 kgcm² |
| Cooling | water cooling |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
