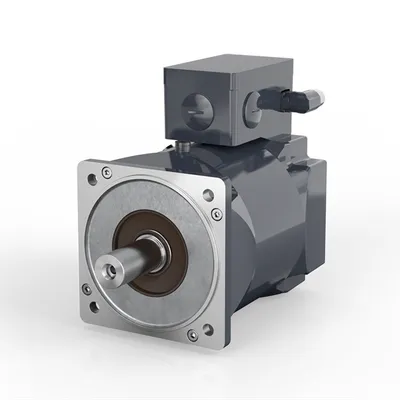

AM8373 Parts
Compare AM8373
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated torque | Rated speed | Rated power | Standstill current | Peak current |
|---|---|---|---|---|---|
| AM8373-wTyz | 177 Nm | 850 min-1 | 15.7 kW | 38.0 A | 51.3 A |
| AM8373-wXyz | 136 Nm | 3000 min-1 | 42.8 kW | 125 A | 180 A |
| AM8373-wUyz | 183 Nm | 1500 min-1 | 28.7 kW | 72.1 A | 97.4 A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 135 kgcm² |
| Cooling | water cooling |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
