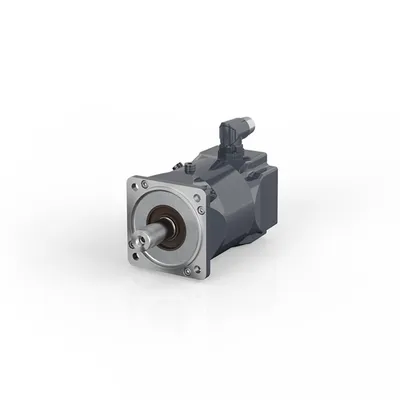

AM8353 Parts
Compare AM8353
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated speed | Rated power | Standstill current | Peak current | Torque constant |
|---|---|---|---|---|---|
| AM8353-wTyz | 6300 min-1 | 17.7 kW | 38.1 A | 89.7 A | 0.756 Nm/A |
| AM8353-wQyz | 3500 min-1 | 9.82 kW | 21.6 A | 50.9 A | 1.33 Nm/A |
| AM8353-wLyz | 1700 min-1 | 4.63 kW | 11.4 A | 26.9 A | 2.53 Nm/A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 28.8 Nm |
| Peak torque | 53.1 Nm |
| Rotor moment of inertia | 5.93 kgcm² |
| Cooling | water cooling |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
