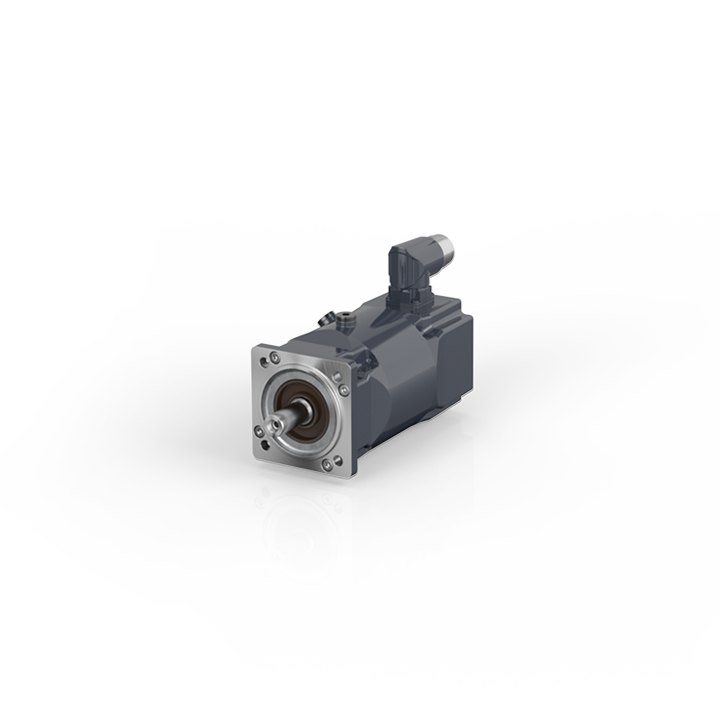

AM8333 Parts
Compare AM8333
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated torque | Rated speed | Rated power | Standstill current | Peak current |
|---|---|---|---|---|---|
| AM8333-wHyz | 7.90 Nm | 2300 min-1 | 1.90 kW | 5.70 A | 12.9 A |
| AM8333-wLyz | 7.97 Nm | 4500 min-1 | 3.76 kW | 10.4 A | 24.6 A |
| AM8333-wNyz | 7.33 Nm | 8000 min-1 | 6.14 kW | 15.7 A | 39.8 A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 1.23 kgcm² |
| Cooling | water cooling |
| Connection technology | M23 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
