AM8063 Parts

Beckhoff

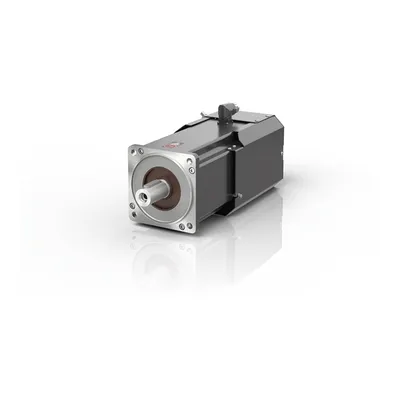

Servomotor 40.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 41.4 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 41.4 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 29.0 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 29.0 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 29.0 Nm (M0), F6 (142 mm)

Compare AM8063

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Rated speed	Rated power	Standstill current
AM8063-wTyz	40.1 Nm	15.1 Nm	4000 min-1	6.30 kW	39.8 A
AM8063-wQyz	41.4 Nm	25.5 Nm	3000 min-1	8.00 kW	24.0 A
AM8063-wLyz	41.4 Nm	33.9 Nm	1400 min-1	4.97 kW	11.6 A
AM8063-wRyz	29.0 Nm	6.10 Nm	4000 min-1	2.56 kW	29.5 A
AM8063-wNyz	29.0 Nm	13.2 Nm	3000 min-1	4.15 kW	17.2 A
AM8063-wKyz	29.0 Nm	22.3 Nm	1500 min-1	3.50 kW	8.70 A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Peak torque	111 Nm
Rotor moment of inertia	29.0 kgcm²
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
