AM8062 Parts

Beckhoff

Servomotor 28.1 Nm (M0), F6 (142 mm)

Beckhoff

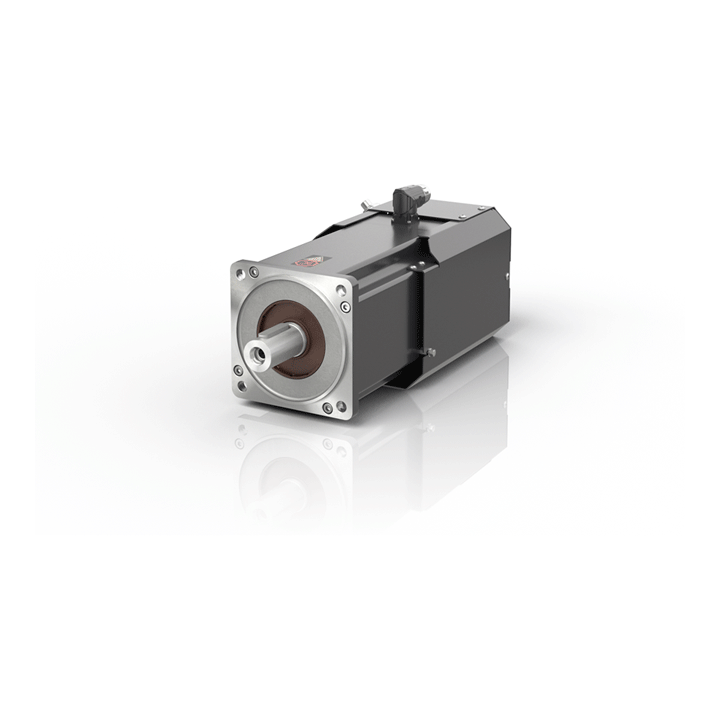

Servomotor 29.9 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 29.9 Nm (M0), F6 (142 mm)

Beckhoff

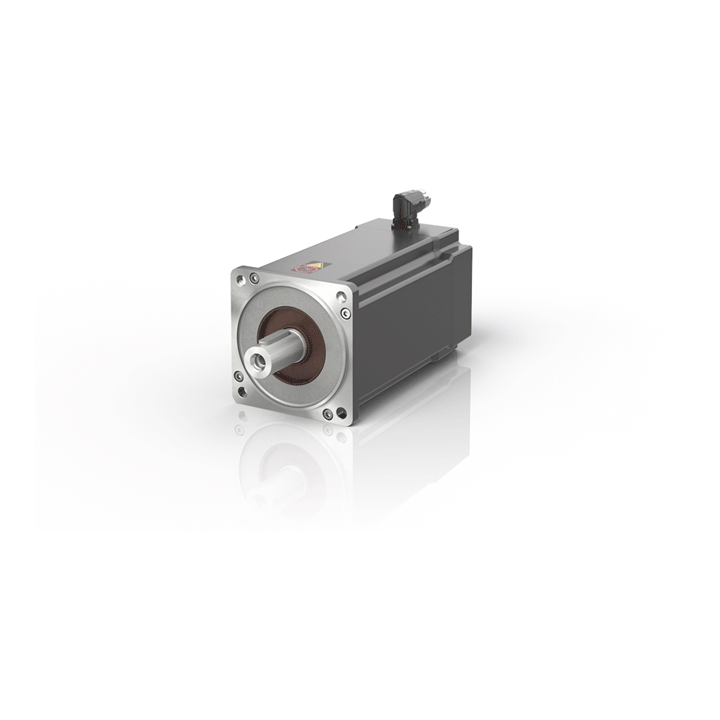

Servomotor 21.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 21.1 Nm (M0), F6 (142 mm)

Beckhoff

Servomotor 21.1 Nm (M0), F6 (142 mm)

Compare AM8062

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Rated speed	Rated power	Standstill current
AM8062-wRyz	28.1 Nm	13.4 Nm	5000 min-1	7.00 kW	28.7 A
AM8062-wNyz	29.9 Nm	22.2 Nm	3000 min-1	7.00 kW	17.4 A
AM8062-wKyz	29.9 Nm	26.4 Nm	1400 min-1	3.87 kW	8.70 A
AM8062-wPyz	21.1 Nm	6.50 Nm	5000 min-1	3.40 kW	20.3 A
AM8062-wLyz	21.1 Nm	15.2 Nm	3000 min-1	4.78 kW	12.4 A
AM8062-wJyz	21.1 Nm	18.5 Nm	1500 min-1	2.91 kW	6.20 A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Rotor moment of inertia	20.0 kgcm²
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
