AM8051 Parts

Beckhoff

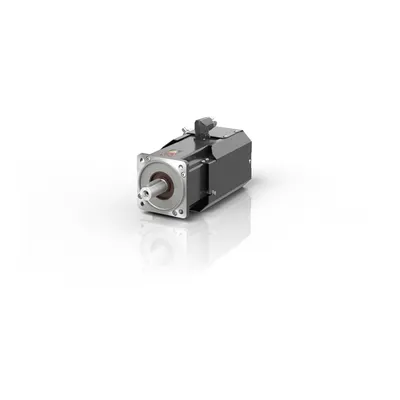

Servomotor 6.30 Nm (M0), F5 (104 mm)

Beckhoff

Servomotor 6.30 Nm (M0), F5 (104 mm)

Beckhoff

Servomotor 6.20 Nm (M0), F5 (104 mm)

Beckhoff

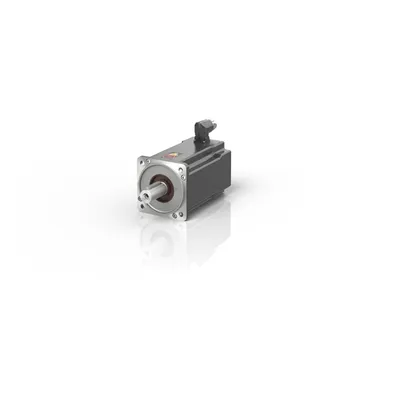

Servomotor 4.90 Nm (M0), F5 (104 mm)

Beckhoff

Servomotor 4.90 Nm (M0), F5 (104 mm)

Beckhoff

Servomotor 4.80 Nm (M0), F5 (104 mm)

Compare AM8051

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Rated speed	Rated power	Standstill current
AM8051-wLyz	6.30 Nm	3.60 Nm	8000 min-1	3.02 kW	11.1 A
AM8051-wJyz	6.30 Nm	5.50 Nm	4750 min-1	2.74 kW	5.80 A
AM8051-wFyz	6.20 Nm	5.80 Nm	2500 min-1	1.52 kW	3.50 A
AM8051-wKyz	4.90 Nm	3.90 Nm	8000 min-1	3.27 kW	8.50 A
AM8051-wGyz	4.90 Nm	4.40 Nm	5000 min-1	2.30 kW	4.75 A
AM8051-wEyz	4.80 Nm	4.60 Nm	2500 min-1	1.20 kW	2.70 A

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Rotor moment of inertia	2.25 kgcm²
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
