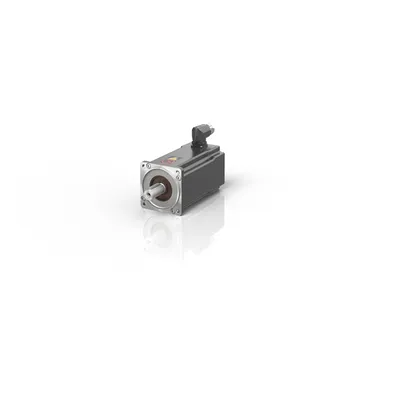

AM8042 Parts
Compare AM8042
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated torque | Rated speed | Rated power | Standstill current | Peak current |
|---|---|---|---|---|---|
| AM8042-wJyz | 3.10 Nm | 8000 min-1 | 2.60 kW | 6.90 A | 37.6 A |
| AM8042-wFyz | 3.70 Nm | 5000 min-1 | 1.94 kW | 4.10 A | 22.7 A |
| AM8042-wEyz | 3.90 Nm | 2500 min-1 | 1.02 kW | 2.15 A | 11.8 A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 4.10 Nm |
| Peak torque | 18.9 Nm |
| Rotor moment of inertia | 1.98 kgcm² |
| Cooling | convection |
| Connection technology | M23 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
