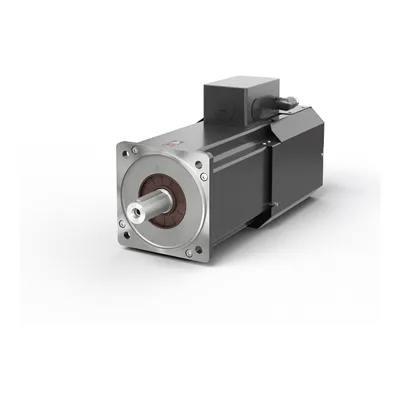

AM8074 Parts
Compare AM8074
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated torque | Rated speed | Rated power | Standstill current | Torque constant |
|---|---|---|---|---|---|
| AM8074-wTy0 | 19.1 Nm | 2500 min-1 | 5.00 kW | 49.8 A | 1.85 Nm/A |
| AM8074-wRy0 | 34.0 Nm | 2000 min-1 | 7.12 kW | 34.9 A | 2.60 Nm/A |
| AM8074-wNy0 | 67.0 Nm | 1000 min-1 | 7.02 kW | 17.9 A | 5.10 Nm/A |
| AM8074-wRyZ | 93.3 Nm | 1000 min-1 | 9.77 kW | 25.8 A | 4.99 Nm/A |
| AM8074-wTyZ | 51.7 Nm | 2000 min-1 | 10.83 kW | 49.4 A | 2.61 Nm/A |
| AM8074-wUyZ | 24.5 Nm | 3000 min-1 | 7.70 kW | 69.2 A | 1.86 Nm/A |
| AM8074-wNy1 | 67.0 Nm | 1000 min-1 | 7.02 kW | 17.9 A | 5.10 Nm/A |
| AM8074-wRy1 | 34.0 Nm | 2000 min-1 | 7.12 kW | 34.9 A | 2.60 Nm/A |
| AM8074-wTy1 | 19.1 Nm | 2500 min-1 | 5.00 kW | 49.8 A | 1.85 Nm/A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 180 kgcm² |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
