AMP8051 Parts

Beckhoff

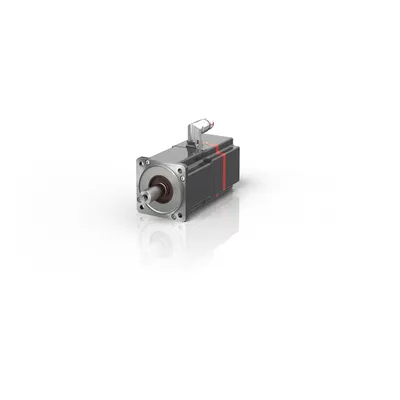

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.40 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.40 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.40 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive 4.40 Nm (M0), F5 (104 mm)

Compare AMP8051

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Peak torque	Rated speed	Rated power
AMP8051-Ex1z	4.60 Nm	4.50 Nm	17.7 Nm	2500 min-1	1.18 kW
AMP8051-Ex2z	4.60 Nm	4.50 Nm	17.7 Nm	2500 min-1	1.18 kW
AMP8051-Ex3z	4.60 Nm	4.50 Nm	17.7 Nm	2500 min-1	1.18 kW
AMP8051-Ex4z	4.60 Nm	4.50 Nm	17.7 Nm	2500 min-1	1.18 kW
AMP8051-Gx1z	4.60 Nm	3.90 Nm	16.4 Nm	5000 min-1	2.04 kW
AMP8051-Gx2z	4.60 Nm	3.90 Nm	16.4 Nm	5000 min-1	2.04 kW
AMP8051-Gx3z	4.60 Nm	3.90 Nm	16.4 Nm	5000 min-1	2.04 kW
AMP8051-Gx4z	4.60 Nm	3.90 Nm	16.4 Nm	5000 min-1	2.04 kW
AMP8051-Kx1z	4.40 Nm	2.50 Nm	10.7 Nm	8000 min-1	2.09 kW
AMP8051-Kx2z	4.40 Nm	2.50 Nm	10.7 Nm	8000 min-1	2.09 kW
AMP8051-Kx3z	4.40 Nm	2.50 Nm	10.7 Nm	8000 min-1	2.09 kW
AMP8051-Kx4z	4.40 Nm	2.50 Nm	10.7 Nm	8000 min-1	2.09 kW

DC link voltage	0…848 V DC
Rotor moment of inertia	2.25 kgcm²
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cULus, TÜV Süd
