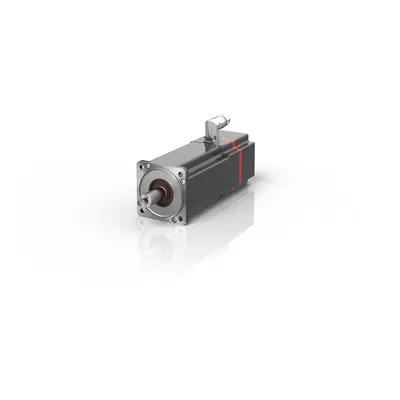

AMP8053 Parts
Compare AMP8053
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Peak torque | Rated speed | Rated power |
|---|---|---|---|---|---|
| AMP8053-Gx1z | 10.2 Nm | 8.20 Nm | 41.6 Nm | 2000 min-1 | 1.72 kW |
| AMP8053-Gx2z | 10.2 Nm | 8.20 Nm | 41.6 Nm | 2000 min-1 | 1.72 kW |
| AMP8053-Gx3z | 10.2 Nm | 8.20 Nm | 41.6 Nm | 2000 min-1 | 1.72 kW |
| AMP8053-Gx4z | 10.2 Nm | 8.20 Nm | 41.6 Nm | 2000 min-1 | 1.72 kW |
| AMP8053-Jx1z | 10.2 Nm | 7.00 Nm | 31.1 Nm | 3000 min-1 | 2.20 kW |
| AMP8053-Jx2z | 10.2 Nm | 7.00 Nm | 31.1 Nm | 3000 min-1 | 2.20 kW |
| AMP8053-Jx3z | 10.2 Nm | 7.00 Nm | 31.1 Nm | 3000 min-1 | 2.20 kW |
| AMP8053-Jx4z | 10.2 Nm | 7.00 Nm | 31.1 Nm | 3000 min-1 | 2.20 kW |
| AMP8053-Kx1z | 9.60 Nm | 6.00 Nm | 24.9 Nm | 4000 min-1 | 2.51 kW |
| AMP8053-Kx2z | 9.60 Nm | 6.00 Nm | 24.9 Nm | 4000 min-1 | 2.51 kW |
| AMP8053-Kx3z | 9.60 Nm | 6.00 Nm | 24.9 Nm | 4000 min-1 | 2.51 kW |
| AMP8053-Kx4z | 9.60 Nm | 6.00 Nm | 24.9 Nm | 4000 min-1 | 2.51 kW |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 5.93 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
