AMP8031 Parts

Beckhoff

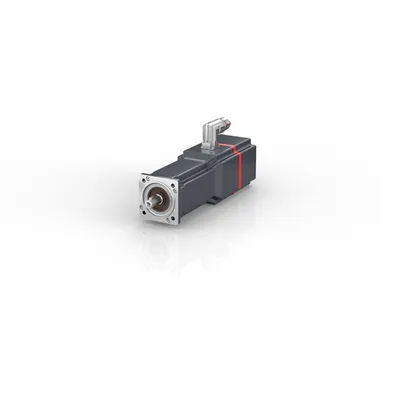

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.38 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.36 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.36 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.36 Nm (M0), F3 (72 mm)

Beckhoff

Distributed servo drive 1.36 Nm (M0), F3 (72 mm)

Compare AMP8031

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Peak torque	Rated speed	Rated power
AMP8031-Cx1z	1.38 Nm	1.36 Nm	6.10 Nm	3000 min-1	0.43 kW
AMP8031-Cx2z	1.38 Nm	1.36 Nm	6.10 Nm	3000 min-1	0.43 kW
AMP8031-Cx3z	1.38 Nm	1.36 Nm	6.10 Nm	3000 min-1	0.43 kW
AMP8031-Cx4z	1.38 Nm	1.36 Nm	6.10 Nm	3000 min-1	0.43 kW
AMP8031-Dx1z	1.38 Nm	1.34 Nm	6.07 Nm	6000 min-1	0.84 kW
AMP8031-Dx2z	1.38 Nm	1.34 Nm	6.07 Nm	6000 min-1	0.84 kW
AMP8031-Dx3z	1.38 Nm	1.34 Nm	6.07 Nm	6000 min-1	0.84 kW
AMP8031-Dx4z	1.38 Nm	1.34 Nm	6.07 Nm	6000 min-1	0.84 kW
AMP8031-Fx1z	1.36 Nm	1.30 Nm	6.07 Nm	9000 min-1	1.23 kW
AMP8031-Fx2z	1.36 Nm	1.30 Nm	6.07 Nm	9000 min-1	1.23 kW
AMP8031-Fx3z	1.36 Nm	1.30 Nm	6.07 Nm	9000 min-1	1.23 kW
AMP8031-Fx4z	1.36 Nm	1.30 Nm	6.07 Nm	9000 min-1	1.23 kW

DC link voltage	0…848 V DC
Rotor moment of inertia	0.470 kgcm²
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cULus, TÜV Süd
