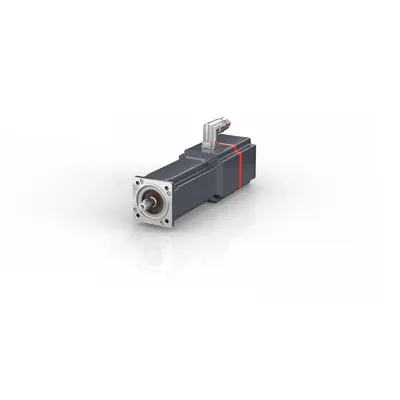

AMP8032 Parts
Compare AMP8032
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Peak torque | Rated speed | Rated power |
|---|---|---|---|---|---|
| AMP8032-Dx1z | 2.37 Nm | 2.27 Nm | 11.7 Nm | 3000 min-1 | 0.71 kW |
| AMP8032-Dx2z | 2.37 Nm | 2.27 Nm | 11.7 Nm | 3000 min-1 | 0.71 kW |
| AMP8032-Dx3z | 2.37 Nm | 2.27 Nm | 11.7 Nm | 3000 min-1 | 0.71 kW |
| AMP8032-Dx4z | 2.37 Nm | 2.27 Nm | 11.7 Nm | 3000 min-1 | 0.71 kW |
| AMP8032-Ex1z | 2.37 Nm | 2.05 Nm | 11.7 Nm | 6000 min-1 | 1.29 kW |
| AMP8032-Ex2z | 2.37 Nm | 2.05 Nm | 11.7 Nm | 6000 min-1 | 1.29 kW |
| AMP8032-Ex3z | 2.37 Nm | 2.05 Nm | 11.7 Nm | 6000 min-1 | 1.29 kW |
| AMP8032-Ex4z | 2.37 Nm | 2.05 Nm | 11.7 Nm | 6000 min-1 | 1.29 kW |
| AMP8032-Hx1z | 2.35 Nm | 0.80 Nm | 8.27 Nm | 9000 min-1 | 0.75 kW |
| AMP8032-Hx2z | 2.35 Nm | 0.80 Nm | 8.27 Nm | 9000 min-1 | 0.75 kW |
| AMP8032-Hx3z | 2.35 Nm | 0.80 Nm | 8.27 Nm | 9000 min-1 | 0.75 kW |
| AMP8032-Hx4z | 2.35 Nm | 0.80 Nm | 8.27 Nm | 9000 min-1 | 0.75 kW |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 0.850 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
