Beckhoff

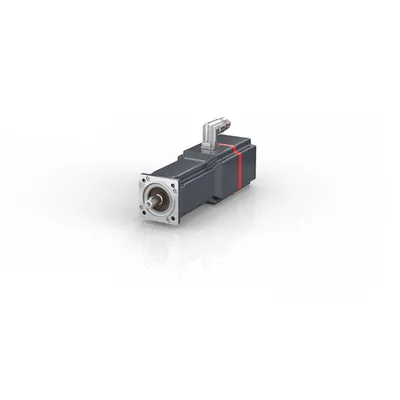

AMP8531-Cx1zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
AMP8531 Parts
Beckhoff
AMP8531-Cx2zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Cx3zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Cx4zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Dx1zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Dx2zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Dx3zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Dx4zDistributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Fx1zDistributed servo drive with increased rotor moment of inertia 1.36 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Fx2zDistributed servo drive with increased rotor moment of inertia 1.36 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Fx3zDistributed servo drive with increased rotor moment of inertia 1.36 Nm (M0), F3 (72 mm)
Beckhoff
AMP8531-Fx4zDistributed servo drive with increased rotor moment of inertia 1.36 Nm (M0), F3 (72 mm)
Compare AMP8531
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Peak torque | Rated speed | Rated power |
|---|---|---|---|---|---|
| AMP8531-Cx1z | 1.38 Nm | 1.36 Nm | 6.10 Nm | 3000 min-1 | 0.43 kW |
| AMP8531-Cx2z | 1.38 Nm | 1.36 Nm | 6.10 Nm | 3000 min-1 | 0.43 kW |
| AMP8531-Cx3z | 1.38 Nm | 1.36 Nm | 6.10 Nm | 3000 min-1 | 0.43 kW |
| AMP8531-Cx4z | 1.38 Nm | 1.36 Nm | 6.10 Nm | 3000 min-1 | 0.43 kW |
| AMP8531-Dx1z | 1.38 Nm | 1.34 Nm | 6.07 Nm | 6000 min-1 | 0.84 kW |
| AMP8531-Dx2z | 1.38 Nm | 1.34 Nm | 6.07 Nm | 6000 min-1 | 0.84 kW |
| AMP8531-Dx3z | 1.38 Nm | 1.34 Nm | 6.07 Nm | 6000 min-1 | 0.84 kW |
| AMP8531-Dx4z | 1.38 Nm | 1.34 Nm | 6.07 Nm | 6000 min-1 | 0.84 kW |
| AMP8531-Fx1z | 1.36 Nm | 1.30 Nm | 6.07 Nm | 9000 min-1 | 1.23 kW |
| AMP8531-Fx2z | 1.36 Nm | 1.30 Nm | 6.07 Nm | 9000 min-1 | 1.23 kW |
| AMP8531-Fx3z | 1.36 Nm | 1.30 Nm | 6.07 Nm | 9000 min-1 | 1.23 kW |
| AMP8531-Fx4z | 1.36 Nm | 1.30 Nm | 6.07 Nm | 9000 min-1 | 1.23 kW |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 1.67 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
