Beckhoff

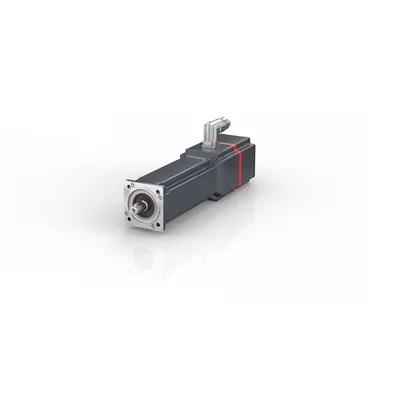

AMP8533-Ex1zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
AMP8533 Parts
Beckhoff
AMP8533-Ex2zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Ex3zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Ex4zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Fx1zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Fx2zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Fx3zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Fx4zDistributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Jx1zDistributed servo drive with increased rotor moment of inertia 3.10 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Jx2zDistributed servo drive with increased rotor moment of inertia 3.10 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Jx3zDistributed servo drive with increased rotor moment of inertia 3.10 Nm (M0), F3 (72 mm)
Beckhoff
AMP8533-Jx4zDistributed servo drive with increased rotor moment of inertia 3.10 Nm (M0), F3 (72 mm)
Compare AMP8533
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Peak torque | Rated speed | Rated power |
|---|---|---|---|---|---|
| AMP8533-Ex1z | 3.15 Nm | 2.95 Nm | 17.2 Nm | 3000 min-1 | 0.93 kW |
| AMP8533-Ex2z | 3.15 Nm | 2.95 Nm | 17.2 Nm | 3000 min-1 | 0.93 kW |
| AMP8533-Ex3z | 3.15 Nm | 2.95 Nm | 17.2 Nm | 3000 min-1 | 0.93 kW |
| AMP8533-Ex4z | 3.15 Nm | 2.95 Nm | 17.2 Nm | 3000 min-1 | 0.93 kW |
| AMP8533-Fx1z | 3.15 Nm | 2.55 Nm | 14.36 Nm | 6000 min-1 | 1.60 kW |
| AMP8533-Fx2z | 3.15 Nm | 2.55 Nm | 14.36 Nm | 6000 min-1 | 1.60 kW |
| AMP8533-Fx3z | 3.15 Nm | 2.55 Nm | 14.36 Nm | 6000 min-1 | 1.60 kW |
| AMP8533-Fx4z | 3.15 Nm | 2.55 Nm | 14.36 Nm | 6000 min-1 | 1.60 kW |
| AMP8533-Jx1z | 3.10 Nm | 0.50 Nm | 9.37 Nm | 8000 min-1 | 0.42 kW |
| AMP8533-Jx2z | 3.10 Nm | 0.50 Nm | 9.37 Nm | 8000 min-1 | 0.42 kW |
| AMP8533-Jx3z | 3.10 Nm | 0.50 Nm | 9.37 Nm | 8000 min-1 | 0.42 kW |
| AMP8533-Jx4z | 3.10 Nm | 0.50 Nm | 9.37 Nm | 8000 min-1 | 0.42 kW |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 2.44 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
