Beckhoff

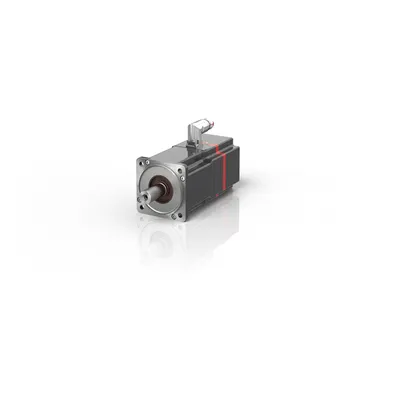

AMP8551-Ex1zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
AMP8551 Parts
Beckhoff
AMP8551-Ex2zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Ex3zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Ex4zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Gx1zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Gx2zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Gx3zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Gx4zDistributed servo drive with increased rotor moment of inertia 4.60 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Kx1zDistributed servo drive with increased rotor moment of inertia 4.40 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Kx2zDistributed servo drive with increased rotor moment of inertia 4.40 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Kx3zDistributed servo drive with increased rotor moment of inertia 4.40 Nm (M0), F5 (104 mm)
Beckhoff
AMP8551-Kx4zDistributed servo drive with increased rotor moment of inertia 4.40 Nm (M0), F5 (104 mm)
Compare AMP8551
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Peak torque | Rated speed | Rated power |
|---|---|---|---|---|---|
| AMP8551-Ex1z | 4.60 Nm | 4.50 Nm | 17.7 Nm | 2500 min-1 | 1.18 kW |
| AMP8551-Ex2z | 4.60 Nm | 4.50 Nm | 17.7 Nm | 2500 min-1 | 1.18 kW |
| AMP8551-Ex3z | 4.60 Nm | 4.50 Nm | 17.7 Nm | 2500 min-1 | 1.18 kW |
| AMP8551-Ex4z | 4.60 Nm | 4.50 Nm | 17.7 Nm | 2500 min-1 | 1.18 kW |
| AMP8551-Gx1z | 4.60 Nm | 3.90 Nm | 16.4 Nm | 5000 min-1 | 2.04 kW |
| AMP8551-Gx2z | 4.60 Nm | 3.90 Nm | 16.4 Nm | 5000 min-1 | 2.04 kW |
| AMP8551-Gx3z | 4.60 Nm | 3.90 Nm | 16.4 Nm | 5000 min-1 | 2.04 kW |
| AMP8551-Gx4z | 4.60 Nm | 3.90 Nm | 16.4 Nm | 5000 min-1 | 2.04 kW |
| AMP8551-Kx1z | 4.40 Nm | 2.50 Nm | 10.7 Nm | 8000 min-1 | 2.09 kW |
| AMP8551-Kx2z | 4.40 Nm | 2.50 Nm | 10.7 Nm | 8000 min-1 | 2.09 kW |
| AMP8551-Kx3z | 4.40 Nm | 2.50 Nm | 10.7 Nm | 8000 min-1 | 2.09 kW |
| AMP8551-Kx4z | 4.40 Nm | 2.50 Nm | 10.7 Nm | 8000 min-1 | 2.09 kW |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 8.75 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
