AMP8553 Parts

Beckhoff

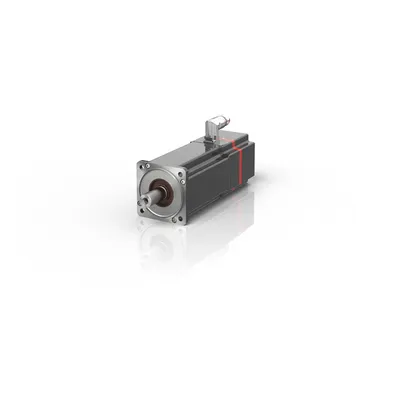

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 10.2 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 9.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 9.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 9.60 Nm (M0), F5 (104 mm)

Beckhoff

Distributed servo drive with increased rotor moment of inertia 9.60 Nm (M0), F5 (104 mm)

Compare AMP8553

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Standstill torque	Rated torque	Peak torque	Rated speed	Rated power
AMP8553-Gx1z	10.2 Nm	8.20 Nm	41.6 Nm	2000 min-1	1.72 kW
AMP8553-Gx2z	10.2 Nm	8.20 Nm	41.6 Nm	2000 min-1	1.72 kW
AMP8553-Gx3z	10.2 Nm	8.20 Nm	41.6 Nm	2000 min-1	1.72 kW
AMP8553-Gx4z	10.2 Nm	8.20 Nm	41.6 Nm	2000 min-1	1.72 kW
AMP8553-Jx1z	10.2 Nm	7.00 Nm	31.1 Nm	3000 min-1	2.20 kW
AMP8553-Jx2z	10.2 Nm	7.00 Nm	31.1 Nm	3000 min-1	2.20 kW
AMP8553-Jx3z	10.2 Nm	7.00 Nm	31.1 Nm	3000 min-1	2.20 kW
AMP8553-Jx4z	10.2 Nm	7.00 Nm	31.1 Nm	3000 min-1	2.20 kW
AMP8553-Kx1z	9.60 Nm	6.00 Nm	24.9 Nm	4000 min-1	2.51 kW
AMP8553-Kx2z	9.60 Nm	6.00 Nm	24.9 Nm	4000 min-1	2.51 kW
AMP8553-Kx3z	9.60 Nm	6.00 Nm	24.9 Nm	4000 min-1	2.51 kW
AMP8553-Kx4z	9.60 Nm	6.00 Nm	24.9 Nm	4000 min-1	2.51 kW

DC link voltage	0…848 V DC
Rotor moment of inertia	12.4 kgcm²
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cULus, TÜV Süd
