AMP8543-Hx1zDistributed servo drive with increased rotor moment of inertia 5.30 Nm (M0), F4 (87 mm)
AMP8543 Parts
Beckhoff
AMP8543-Hx2zDistributed servo drive with increased rotor moment of inertia 5.30 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Hx3zDistributed servo drive with increased rotor moment of inertia 5.30 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Hx4zDistributed servo drive with increased rotor moment of inertia 5.30 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Ex1zDistributed servo drive with increased rotor moment of inertia 5.40 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Ex2zDistributed servo drive with increased rotor moment of inertia 5.40 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Ex3zDistributed servo drive with increased rotor moment of inertia 5.40 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Ex4zDistributed servo drive with increased rotor moment of inertia 5.40 Nm (M0), F4 (87 mm)
Beckhoff

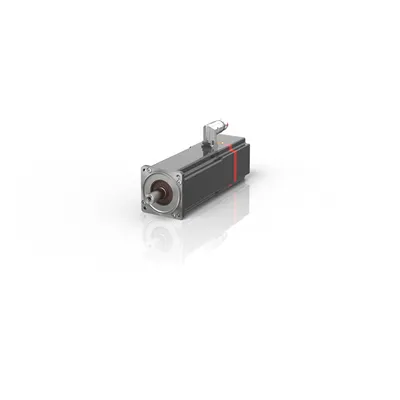

AMP8543-Kx1zDistributed servo drive with increased rotor moment of inertia 4.70 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Kx2zDistributed servo drive with increased rotor moment of inertia 4.70 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Kx3zDistributed servo drive with increased rotor moment of inertia 4.70 Nm (M0), F4 (87 mm)
Beckhoff
AMP8543-Kx4zDistributed servo drive with increased rotor moment of inertia 4.70 Nm (M0), F4 (87 mm)
Compare AMP8543
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Rated speed | Rated power | Motor feedback |
|---|---|---|---|---|---|
| AMP8543-Hx1z | 5.30 Nm | 3.40 Nm | 5000 min-1 | 1.78 kW | single-turn absolute encoder |
| AMP8543-Hx2z | 5.30 Nm | 3.40 Nm | 5000 min-1 | 1.78 kW | multi-turn absolute encoder |
| AMP8543-Hx3z | 5.30 Nm | 3.40 Nm | 5000 min-1 | 1.78 kW | single-turn absolute encoder |
| AMP8543-Hx4z | 5.30 Nm | 3.40 Nm | 5000 min-1 | 1.78 kW | multi-turn absolute encoder |
| AMP8543-Ex1z | 5.40 Nm | 5.15 Nm | 2500 min-1 | 1.35 kW | single-turn absolute encoder |
| AMP8543-Ex2z | 5.40 Nm | 5.15 Nm | 2500 min-1 | 1.35 kW | multi-turn absolute encoder |
| AMP8543-Ex3z | 5.40 Nm | 5.15 Nm | 2500 min-1 | 1.35 kW | single-turn absolute encoder |
| AMP8543-Ex4z | 5.40 Nm | 5.15 Nm | 2500 min-1 | 1.35 kW | multi-turn absolute encoder |
| AMP8543-Kx1z | 4.70 Nm | — | 7000 min-1 | 0.37 kW | single-turn absolute encoder |
| AMP8543-Kx2z | 4.70 Nm | — | 7000 min-1 | 0.37 kW | multi-turn absolute encoder |
| AMP8543-Kx3z | 4.70 Nm | — | 7000 min-1 | 0.37 kW | single-turn absolute encoder |
| AMP8543-Kx4z | 4.70 Nm | — | 7000 min-1 | 0.37 kW | multi-turn absolute encoder |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 6.41 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ECP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
