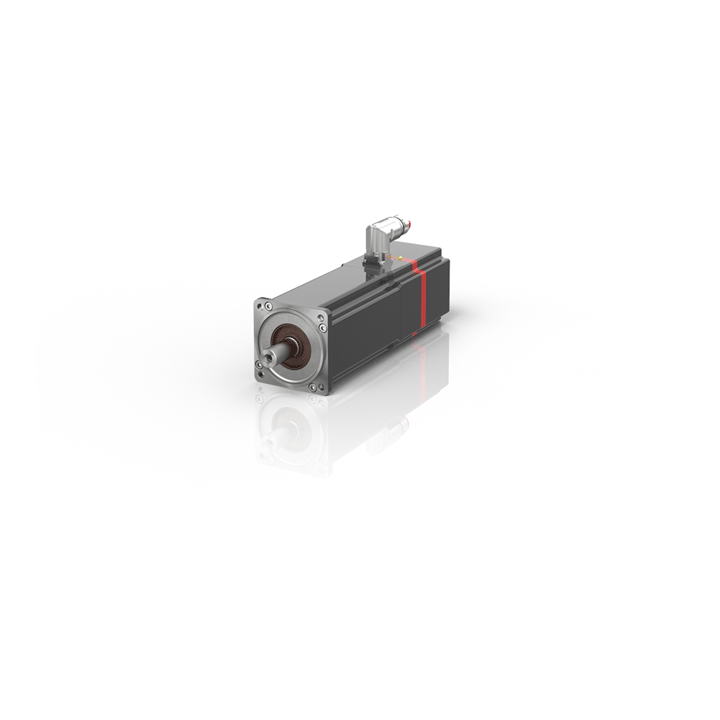

AMP8043 Parts
Compare AMP8043
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated speed | Rated power | Motor feedback | Connection technology |
|---|---|---|---|---|---|
| AMP8043-Ex1z | 5.40 Nm | 2500 min-1 | 1.35 kW | single-turn absolute encoder | ECP B23 plug |
| AMP8043-Ex2z | 5.40 Nm | 2500 min-1 | 1.35 kW | multi-turn absolute encoder | ECP B23 plug |
| AMP8043-Ex3z | 5.40 Nm | 2500 min-1 | 1.35 kW | single-turn absolute encoder | ECP B23 plug |
| AMP8043-Ex4z | 5.40 Nm | 2500 min-1 | 1.35 kW | multi-turn absolute encoder | ECP B23 plug |
| AMP8043-Hx1z | 5.30 Nm | 5000 min-1 | 1.78 kW | single-turn absolute encoder | ECP B23 plug |
| AMP8043-Hx2z | 5.30 Nm | 5000 min-1 | 1.78 kW | multi-turn absolute encoder | ECP B23 plug |
| AMP8043-Hx3z | 5.30 Nm | 5000 min-1 | 1.78 kW | single-turn absolute encoder | ECP B23 plug |
| AMP8043-Hx4z | 5.30 Nm | 5000 min-1 | 1.78 kW | multi-turn absolute encoder | ECP B23 plug |
| AMP8043-Kx1z | 4.70 Nm | 7000 min-1 | 0.37 kW | single-turn absolute encoder | ENP B23 plug |
| AMP8043-Kx2z | 4.70 Nm | 7000 min-1 | 0.37 kW | multi-turn absolute encoder | ENP B23 plug |
| AMP8043-Kx3z | 4.70 Nm | 7000 min-1 | 0.37 kW | single-turn absolute encoder | ENP B23 plug |
| AMP8043-Kx4z | 4.70 Nm | 7000 min-1 | 0.37 kW | multi-turn absolute encoder | ENP B23 plug |
Common to all listed parts
| DC link voltage | 0…848 V DC |
| Rotor moment of inertia | 2.87 kgcm² |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cULus, TÜV Süd |
| Protection rating | IP54, IP65 (shaft seal) |
