Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

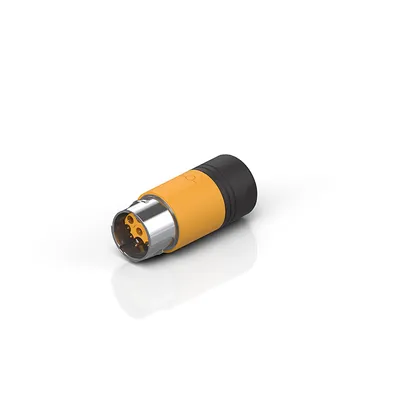

| MPN | Installation size | Connector type | Number of positions (face) | Wire termination | Max. wire cross-section |
|---|---|---|---|---|---|
| ZS4000-2102 | itec® (Series 915) | plug | Power: 3+PE, Signal: 5 | crimp connection | — |
| ZS4000-2103 | itec® (Series 915) | socket | Power: 3+PE, Signal: 5 | crimp connection | AWG16 (1.5 mm²) |

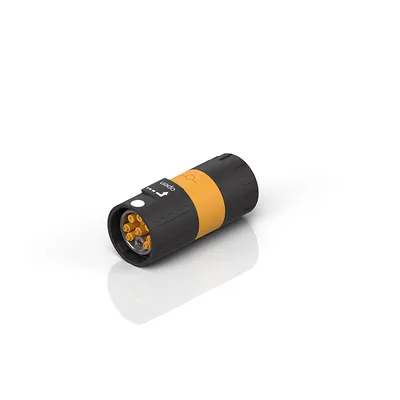

| ZS4000-2107 | itec® (Series 915) | plug | Power: 3+PE, Signal: 5 | crimp connection | — |

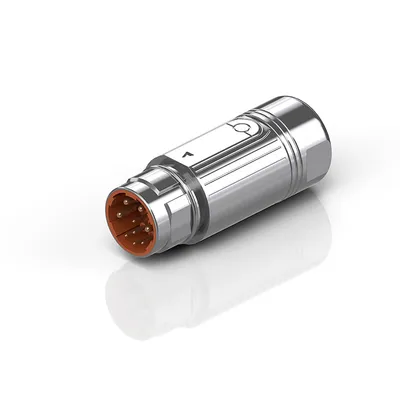

| ZS4000-2108 | M23 | socket | Power: 3+PE, Signal: 5 | crimp connection | — |

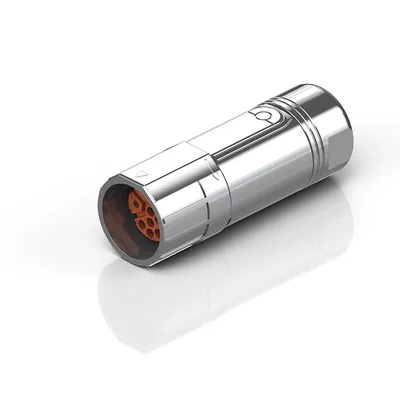

| ZS4000-2104 | M23 | plug | Power: 3+PE, Signal: 5 | crimp connection | — |

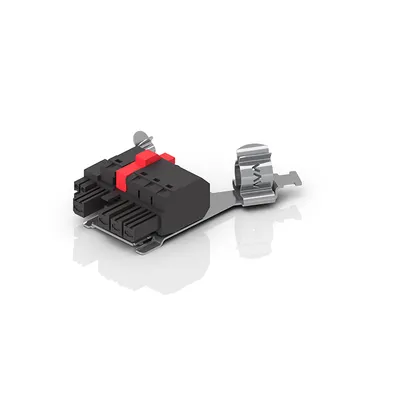

| ZS4800-2013 | Pitch dimension 7.62 mm | plug | 4-pin | Push-in | AWG24…AWG8 (0.5 mm²…10 mm²) |
| ZS4000-2119 | itec® (Series 915) | socket | Power: 3+PE, Signal: 5 | crimp connection | AWG16 (1.5 mm²) |

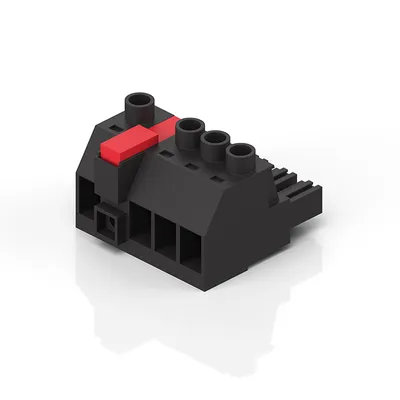

| ZS4800-2041 | Pitch dimension 10.16 mm | plug | 4-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

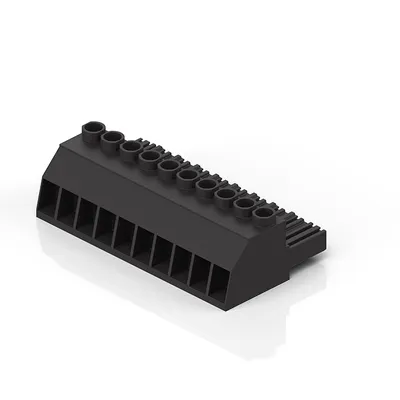

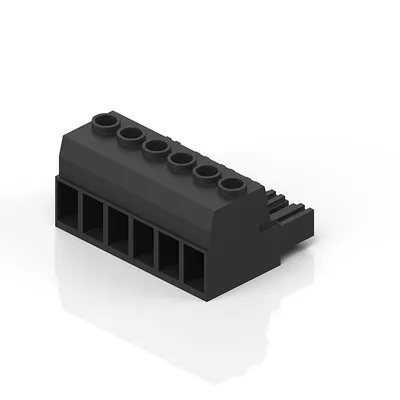

| ZS4800-2001 | Pitch dimension 7.62 mm | plug | 10-pin | Clamping yoke connection | AWG24…AWG8 (0.2 mm²…10 mm²) |
| ZS4800-2042 | Pitch dimension 10.16 mm | plug | 6-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

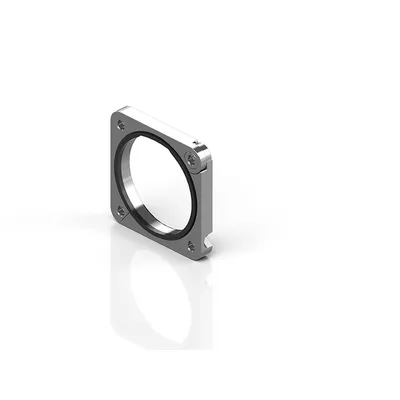

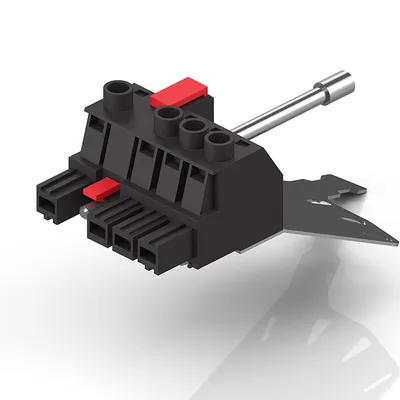

| ZS4000-2110 | M40 | wall/panel feed-through | — | — | — |
| ZS4800-2043 | — | plug | 4-pin | Clamping yoke connection | AWG22…AWG4 |
| ZS4500-2011 | D-sub | socket | 15-pin | solder connection | — |
| ZS4500-2043 | Pitch dimension 10.16 mm | plug | 4-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

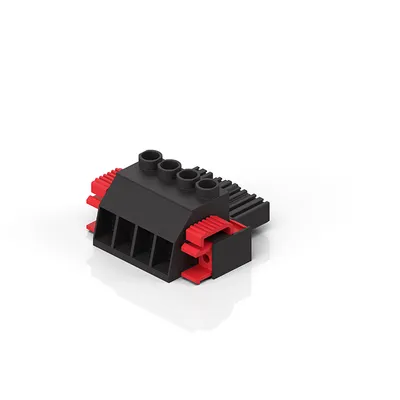

| ZS4500-2001 | Pitch dimension 7.62 mm | plug | 4-pin | Clamping yoke connection | AWG22…AWG10 (0.2 mm²…6 mm²) |

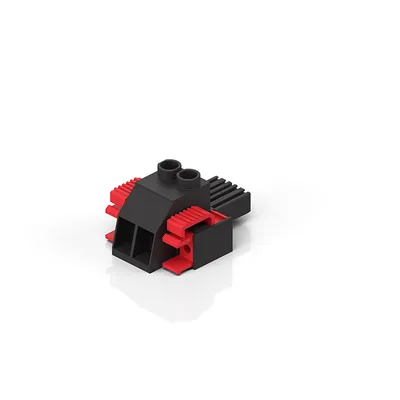

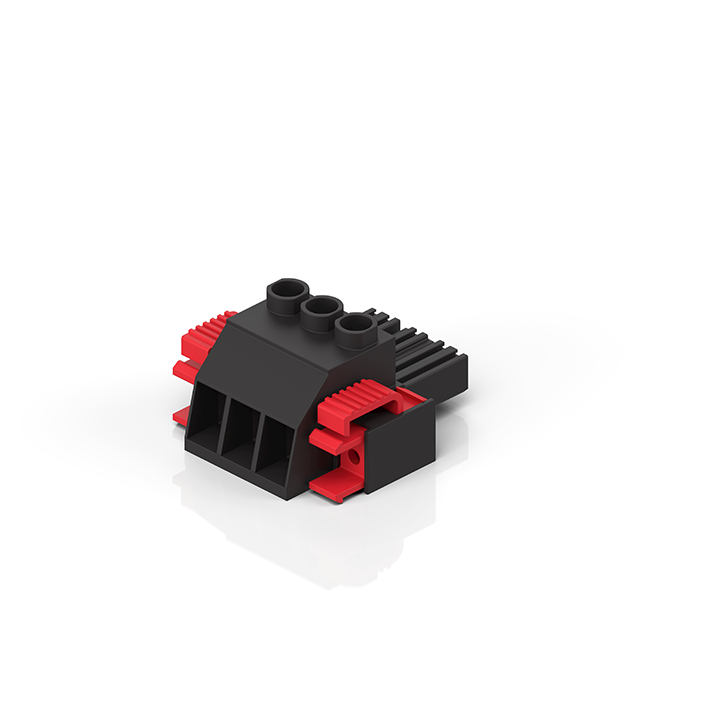

| ZS4500-2002 | Pitch dimension 7.62 mm | plug | 2-pin | Clamping yoke connection | AWG22…AWG10 (0.2 mm²…6 mm²) |
| ZS4500-2003 | Pitch dimension 7.62 mm | plug | 3-pin | Clamping yoke connection | AWG22…AWG10 (0.2 mm²…6 mm²) |

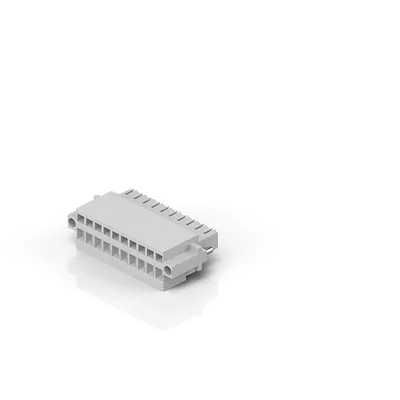

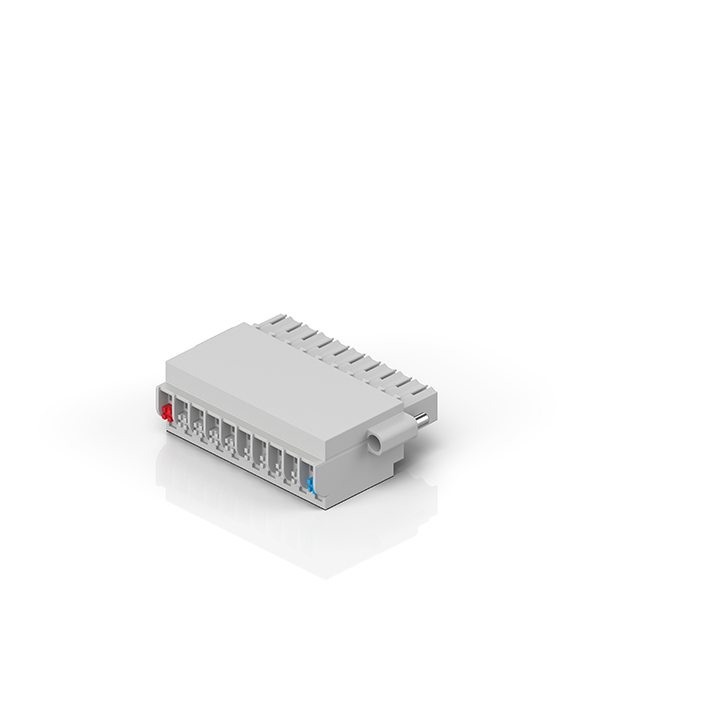

| ZS4500-2006 | Pitch dimension 3.50 mm | plug | 10-pin | Tension-clamp connection | AWG26…AWG14 (0.2 mm²…1.5 mm²) |
| ZS4500-2007 | Pitch dimension 3.50 mm | plug | 10-pin | Push-in | AWG26…AWG14 (0.2 mm²…1.5 mm²) |

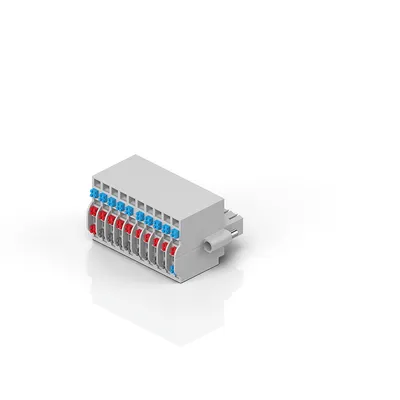

| ZS4500-2008 | Pitch dimension 3.50 mm | plug | 3-row, 10-pin | Push-in | AWG26…AWG14 (0.2 mm²…1.5 mm²) |

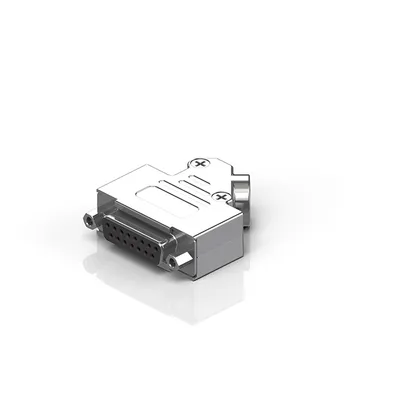

| ZS4500-2012 | D-sub | plug | 15-pin | solder connection | — |

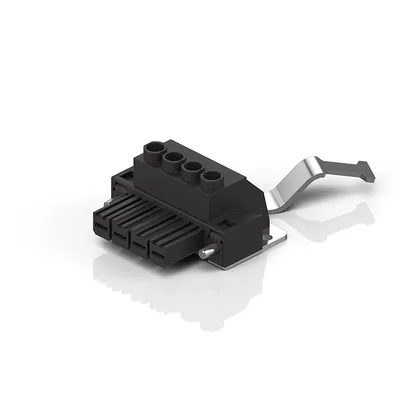

| ZS4500-2013 | Pitch dimension 7.62 mm | plug | 4-pin | Clamping yoke connection | AWG24…AWG8 (0.2 mm²…10 mm²) |

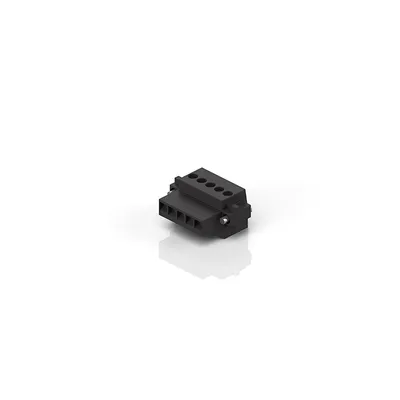

| ZS4500-2014 | Pitch dimension 3.50 mm | plug | 5-pin | Clamping yoke connection | AWG28…AWG14 (0.2 mm²…1.5 mm²) |
