Sensor connectors Parts
Beckhoff

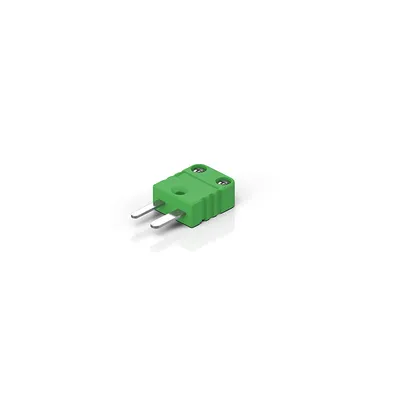

ZS3000-0101Thermocouple plug in miniature version, green, thermocouple: NiCr-Ni, type K according to DIN EN 60584
Compare Sensor connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installation size | Number of positions (face) | Max. wire cross-section | A1 | A2 |
|---|---|---|---|---|---|

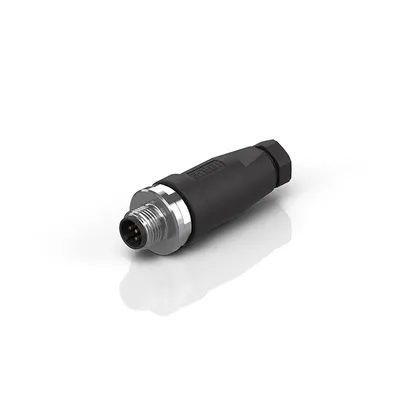

| ZS2000-3711 | M12 | 5-pin | max. 0.75 mm² (AWG18) | ~60.00 mm | Ø 20.00 mm |

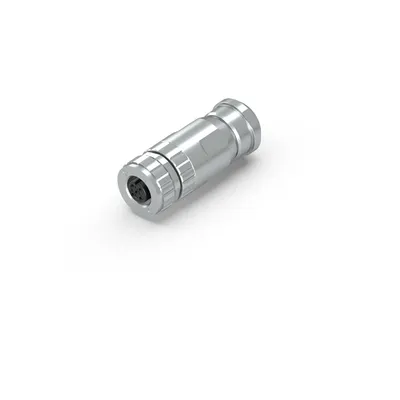

| ZS2000-6720 | M12 | 5-pin | AWG16 (1.5 mm²) | 52.50 mm | Ø 20.00 mm |

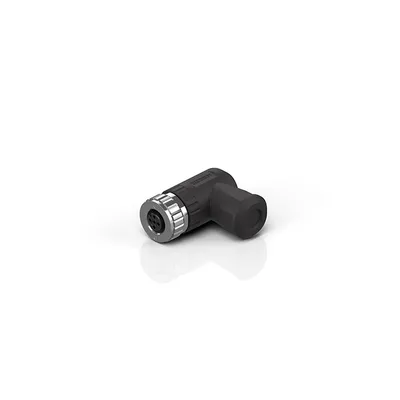

| ZS2000-2740 | M12 | 5-pin | AWG16 (1.5 mm²) | 42.00 mm | Ø 20.00 mm |

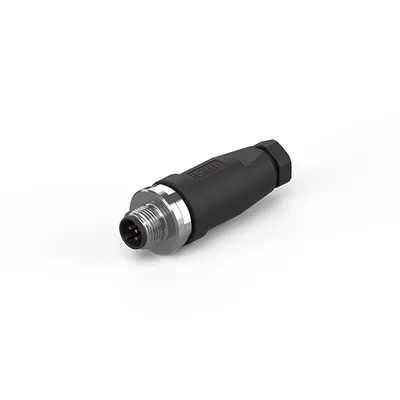

| ZS2000-3712 | M12 | 5-pin | max. 0.75 mm² (AWG18) | ~60.00 mm | Ø 20.00 mm |

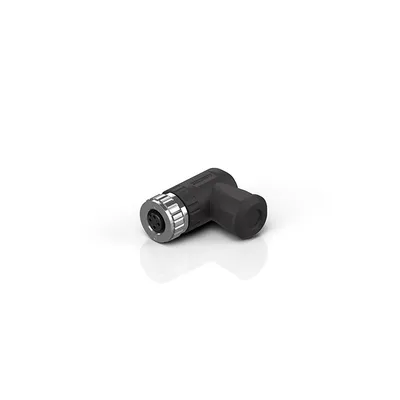

| ZS2000-2640 | M12 | 4-pin | AWG16 (1.5 mm²) | 42.00 mm | Ø 20.00 mm |

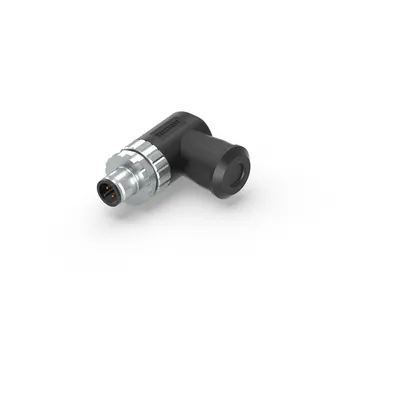

| ZS2000-2630 | M12 | 4-pin | AWG16 (1.5 mm²) | 35.00 mm | Ø 20.00 mm |

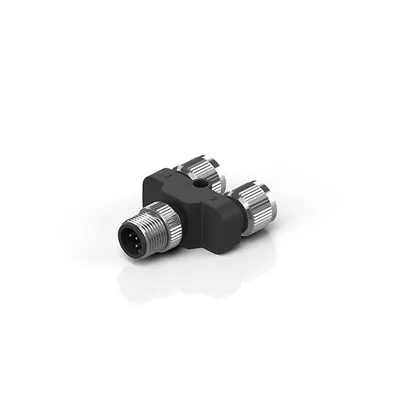

| ZS2000-4722 | M12 | 5-pin | — | — | — |

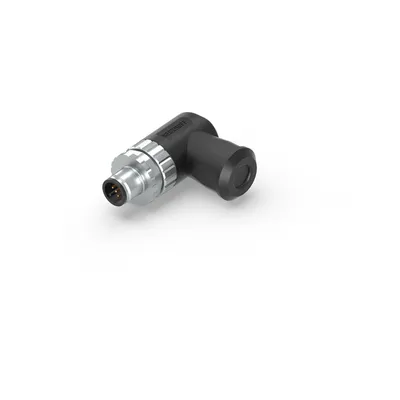

| ZS2000-2730 | M12 | 5-pin | AWG16 (1.5 mm²) | 46.00 mm | Ø 20.00 mm |

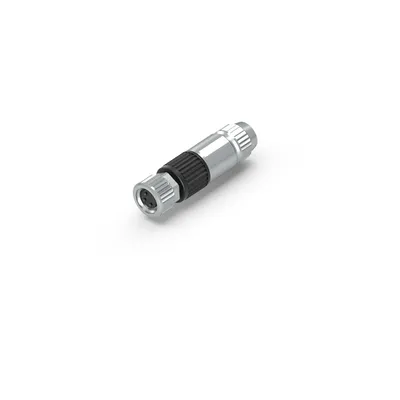

| ZS2000-1223 | M8 | 3-pin | AWG26 ... AWG22 (0.14 mm² ... 0.34 mm²) | 42.50 mm | 11.50 mm |
| ZS2000-6710 | M12 | 5-pin | max. 0.75 mm² (AWG18) | 57.00 mm | Ø 20.00 mm |

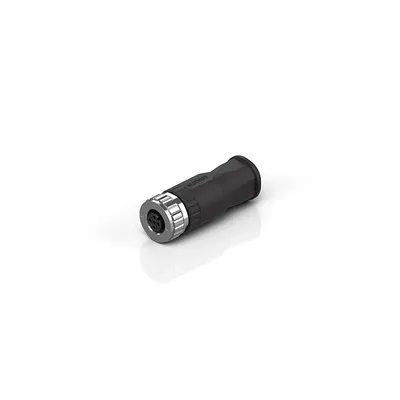

| ZS2000-2720 | M12 | 5-pin | AWG16 (1.5 mm²) | 57.00 mm | Ø 20,00 mm |
| ZS2000-4231 | M8 | 3-pin | AWG24 (0.25 mm²) | 34.60 mm | Ø 12.00 mm |
| ZS2000-2620 | M12 | 4-pin | AWG16 (1.5 mm²) | 57.00 mm | Ø 20.00 mm |
| ZS2000-6723 | M12 | 8-pin | AWG20 (0.5 mm²) | approx. 54 mm | Ø 20.00 mm |

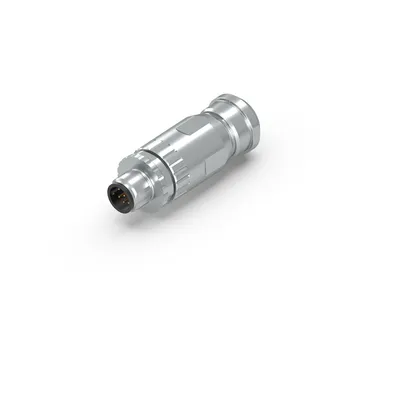

| ZS2000-6713 | M12 | 8-pin | AWG20 (0.5 mm²) | 49.00 mm | Ø 20.00 mm |

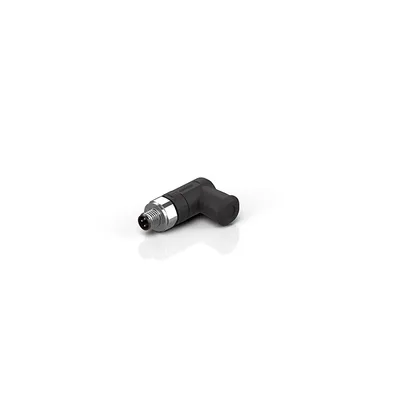

| ZS2000-2231 | M8 | 3-pin | AWG24 (0.25 mm²) | 25.00 mm | 28.00 mm |

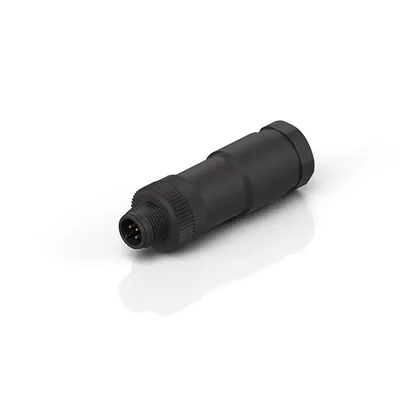

| ZS2000-2750 | M12 | 5-pin | max. 0.75 mm² (AWG18) | 63.00 mm | Ø 20.00 mm |
| ZS2000-4723 | M12 | 5-pin | — | — | — |

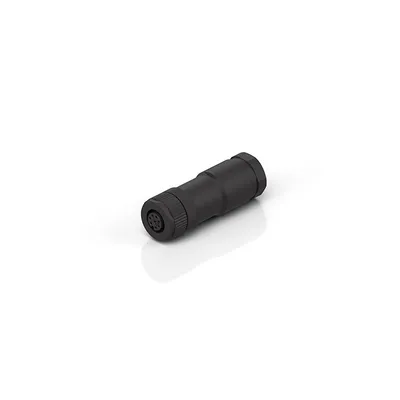

| ZS2000-2763 | M12 | 8-pin | AWG26...AWG20 (0.14 mm²...0.5 mm²) | 58.00 mm | Ø 20.00 mm |

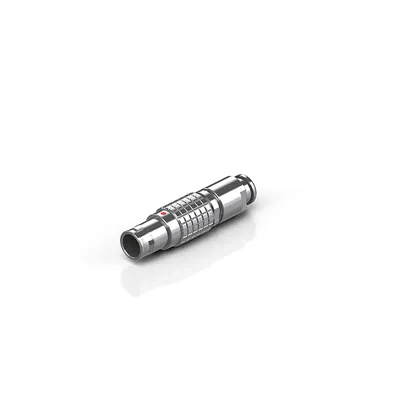

| ZS3000-0001 | LEMO push-pull | 8-pin | — | — | — |

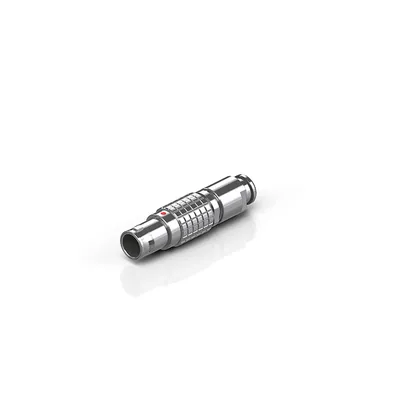

| ZS3000-0002 | LEMO push-pull | 8-pin | — | — | — |
| ZS3000-0003 | LEMO push-pull | 8-pin | — | — | — |
| ZS3000-0101 | Thermocouple plug in | — | — | — | — |
