Motor cables Parts
Compare Motor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section (power) | Cross-section (signal) | Material jacket | Outer cable diameter | Min. bending radius, fixed installation |
|---|---|---|---|---|---|
| ZK4509-0016-0zzz | 6 mm² (approx. AWG10) | 1 mm² (approx. AWG18) | TPU (thermoplastic polyurethane) | 17.6 mm ± 0.4 mm (0.6929" ± 0.0157") | 4 x outer cable diameter |

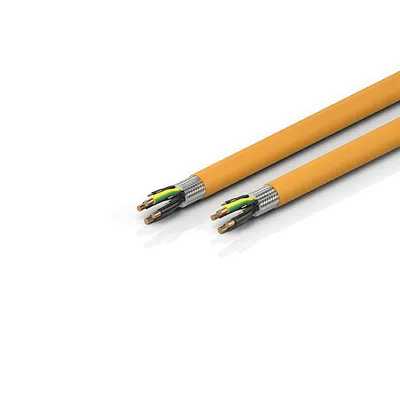

| ZK4509-0017-0zzz | 10 mm² (approx. AWG8) | 1 mm² (approx. AWG18) | TPU (thermoplastic polyurethane) | 20.3 mm ± 0.4 mm (0.7992" ± 0.0157") | 4 x outer cable diameter |
| ZK4509-0018-0zzz | 16 mm² (approx. AWG5) | 1.5 mm² (approx. AWG16) | PUR (polyurethane) | 23.0 mm ± 0.5 mm (0.9055" ± 0.0197") | 5 x outer cable diameter |
| ZK4509-0019-0zzz | 25 mm² (approx. AWG4) | 1.5 mm² (approx. AWG16) | PUR (polyurethane) | 28.0 mm (1.1024") | 4 x outer cable diameter |
| ZK4509-0019-1zzz | 35 mm² (approx. AWG2) | 1.5 mm² (approx. AWG16) | PUR (polyurethane) | 32.5 mm (1.2796") | 4 x outer cable diameter |
| ZK4509-0019-2zzz | 50 mm² (approx. AWG1) | 1.5 mm² (approx. AWG16) | PUR (polyurethane) | 37.0 mm (1.4567") | 4 x outer cable diameter |
| ZK4509-8025-zzzz | 4.00 mm² (approx. AWG12) | AWG22 (approx. 0.34 mm²) | TPU (thermoplastic polyurethane) | 15.9 mm ± 0.4 mm (0.6259" ± 0.0157") | 5 x outer cable diameter |
Common to all listed parts
| Use | drag-chain suitable |
| Jacket color | orange |
