SENTRON 3LD2 Load Transfer Switches Parts
Compare SENTRON 3LD2 Load Transfer Switches
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | height | width | depth | Net Weight |
|---|---|---|---|---|---|

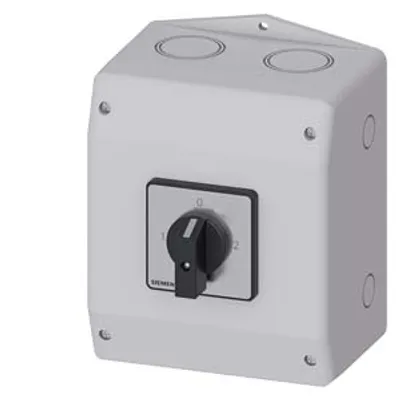

| 3LD2265-7UB01 | 0.98 W | 188 mm | 146 mm | 149 mm | 869 g |

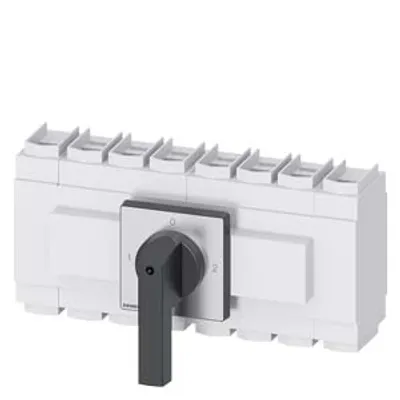

| 3LD2405-7UL01 | 13.33 W | 149 mm | 299 mm | 106 mm | 5.865 kg |

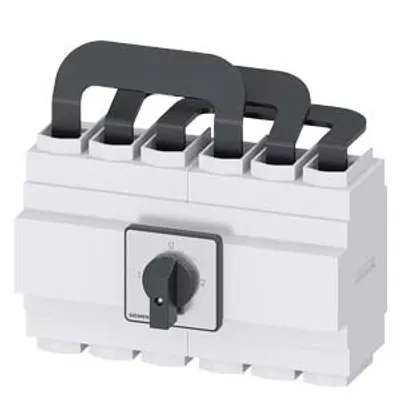

| 3LD2405-7UK01 | 13.33 W | 149 mm | 224 mm | 106 mm | 4.512 kg |

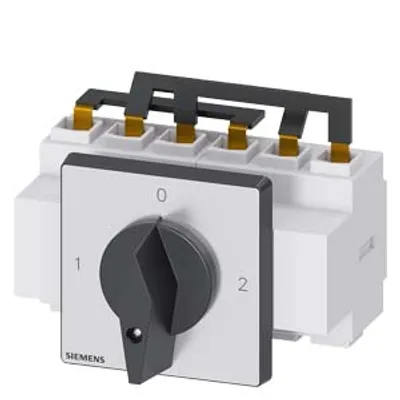

| 3LD2724-7UK01 | 2.77 W | 110 mm | 141 mm | 120.5 mm | 956 g |

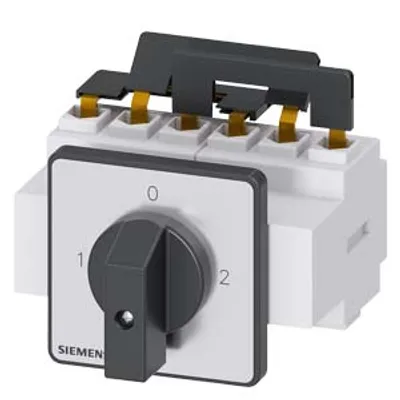

| 3LD2123-7UK01 | 0.6 W | 84 mm | 67 mm | 103 mm | 379 g |

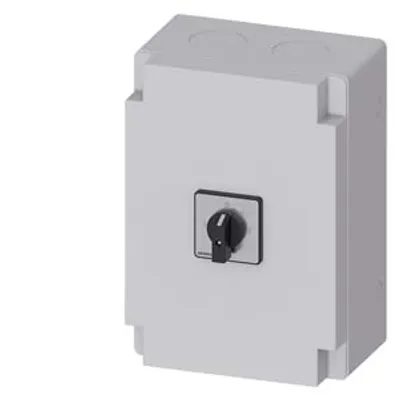

| 3LD2766-7UB01 | 2.77 W | 302 mm | 212 mm | 181 mm | 2.309 kg |
Common to all listed parts
| product designation | Switch disconnector |
| design of the product | Selector switch |
| display version for switch position indicator manual operation | 1 ON - 0 OFF - 2 ON |
| design of the actuating element | selector switch |
| color of the actuating element | black |
| design of handle | knob-operated mechanism, black |
| type of the driving mechanism motor drive | No |
| mechanical service life (operating cycles) typical | 100 000 |
