Beckhoff

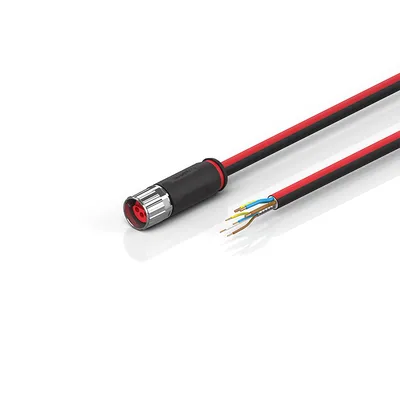

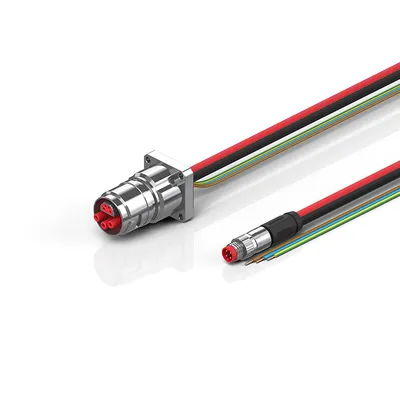

ZK7906-BK00-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Hybrid cables Parts
Beckhoff
ZK7906-AH00-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7906-AG00-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7906-1900-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7906-1819-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7906-1800-0xxxB17, ECP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff

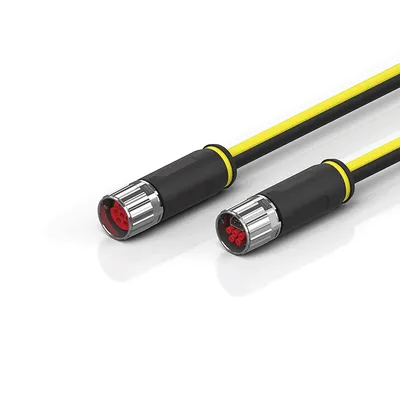

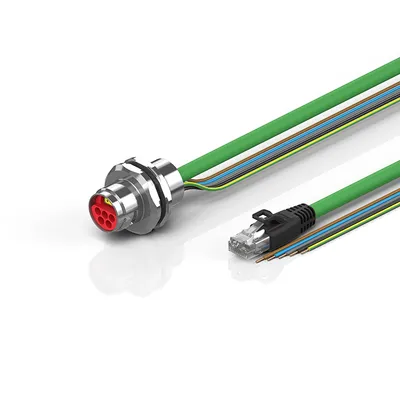

ZK7908-CB00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-CA00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AX00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AW00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-BZ00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-BY00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AV00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AU00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-BX00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-BW00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AT00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-AS00-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-3100-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-3031-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7908-3000-AxxxB17, ENP cable, PUR, 5 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff

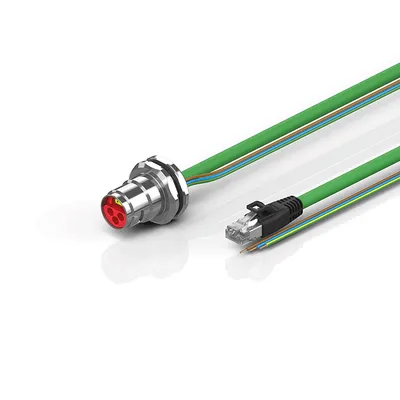

ZK7910-BP00-AxxxB17, ENP cable, PUR, 3 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7910-BO00-AxxxB17, ENP cable, PUR, 3 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Beckhoff
ZK7910-AL00-AxxxB17, ENP cable, PUR, 3 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Compare Hybrid cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Contact type | Number of positions (face) | Outer cable diameter | A2 | A4 |
|---|---|---|---|---|---|
| ZK7906-BK00-0xxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 25.00 mm | 37.00 mm |
| ZK7906-AH00-0xxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 25.00 mm | 19.00 mm |
| ZK7906-AG00-0xxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 25.00 mm | 23.00 mm |
| ZK7906-1900-0xxx | female+ female | pins 2+PE+4 | 10.0 mm ± 0.2 mm (0.3937" ± 0.0079") | 23.00 mm | — |
| ZK7906-1819-0xxx | female+ female | pins 2+PE+4 | 10.0 mm ± 0.2 mm (0.3937" ± 0.0079") | 23.00 mm | — |
| ZK7906-1800-0xxx | male+male | pins 2+PE+4 | 10.0 mm ± 0.2 mm (0.3937" ± 0.0079") | 23.00 mm | — |
| ZK7908-CB00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | WAF30 | 23.00 mm |
| ZK7908-CA00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | WAF30 | 27.00 mm |
| ZK7908-AX00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | WAF30 | 14.00 mm |
| ZK7908-AW00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | WAF30 | 18.00 mm |
| ZK7908-BZ00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 30.40 mm | 33.00 mm |
| ZK7908-BY00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 30.40 mm | 37.00 mm |
| ZK7908-AV00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 30.40 mm | 25.00 mm |
| ZK7908-AU00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 30.40 mm | 29.00 mm |
| ZK7908-BX00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 25.00 mm | 33.00 mm |
| ZK7908-BW00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 25.00 mm | 37.00 mm |
| ZK7908-AT00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 25.00 mm | 19.00 mm |
| ZK7908-AS00-Axxx | male | 4-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | 25.00 mm | 23.00 mm |
| ZK7908-3100-Axxx | female+male | pins 4+PE+4 | 11.0 mm ± 0.2 mm (0.4331" ± 0.0079") | 23.00 mm | — |
| ZK7908-3031-Axxx | female+male | pins 4+PE+4 | 11.0 mm ± 0.2 mm (0.4331" ± 0.0079") | 23.00 mm | — |
| ZK7908-3000-Axxx | male+female | pins 4+PE+4 | 11.0 mm ± 0.2 mm (0.4331" ± 0.0079") | 23.00 mm | — |
| ZK7910-BP00-Axxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | — | — |
| ZK7910-BO00-Axxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | — | — |
| ZK7910-AL00-Axxx | male | 3-wire | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") | — | — |
Common to all listed parts
| Connector type | plug |
| Wire termination | crimp connection |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Max. number of cycles | 3 million |
