EtherCAT and fieldbus cables Parts

Beckhoff

ZK1090-9191-6xxx

Industrial-Ethernet/EtherCAT patch cable, CAT5, PUR, 1 x 4 x AWG26, drag-chain suitable

Beckhoff

Z1100

Fiber-optic conductor for Bus Coupler BK2xxx (Lightbus)

Beckhoff

ZK1091-1001-0xxx

Fiber-optic cables for EK1501, EK1521, CU1521, (multimode 50/125 µm)

Beckhoff

ZK7001-0101-2xxx

EtherCAT P cable, AWG24, PUR, drag-chain suitable, for 40 mm bending radius

Beckhoff

ZK7001-0102-2xxx

EtherCAT P cable, AWG24, PUR, drag-chain suitable, for 40 mm bending radius

Beckhoff

ZK7001-0105-2xxx

EtherCAT P cable, AWG24, PUR, drag-chain suitable, for 40 mm bending radius

Beckhoff

ZK7000-0103-0xxx

EtherCAT P cable, AWG22, PUR, drag-chain suitable

Beckhoff

ZK1096-8191-0xxx

Industrial Ethernet/EtherCAT G/G10 cable, Cat.6/Cat.6A, PUR, 4 x 2 x AWG26, fixed installation

Beckhoff

ZK1096-8181-0xxx

Industrial Ethernet/EtherCAT G/G10 cable, Cat.6/Cat.6A, PUR, 4 x 2 x AWG26, fixed installation

Beckhoff

ZK1090-6891-4xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1096-8891-0xxx

Industrial Ethernet/EtherCAT G/G10 cable, Cat.6/Cat.6A, PUR, 4 x 2 x AWG26, fixed installation

Beckhoff

ZK7001-0100-2xxx

EtherCAT P cable, AWG24, PUR, drag-chain suitable, for 40 mm bending radius

Beckhoff

ZK7001-0303-2xxx

EtherCAT P cable, AWG24, PUR, drag-chain suitable, for 40 mm bending radius

Beckhoff

ZK7000-0102-1xxx

EtherCAT P cable, AWG22, PUR, fixed installation

Beckhoff

ZK1093-6161-2xxx

EtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances

Beckhoff

ZK1096-8691-0xxx

Industrial Ethernet/EtherCAT G/G10 cable, Cat.6/Cat.6A, PUR, 4 x 2 x AWG26, fixed installation

Beckhoff

ZK1090-3133-3xxx

EtherCAT cable, PVC, AWG26, fixed installation

Beckhoff

ZK1096-9191-3xxx

Industrial Ethernet/EtherCAT G/G10 patch cable, Cat.6A, PVC, 4 x 2 x AWG26, fixed installation

Beckhoff

ZK1093-6363-0xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Beckhoff

ZK1093-6363-4xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK7000-0202-1xxx

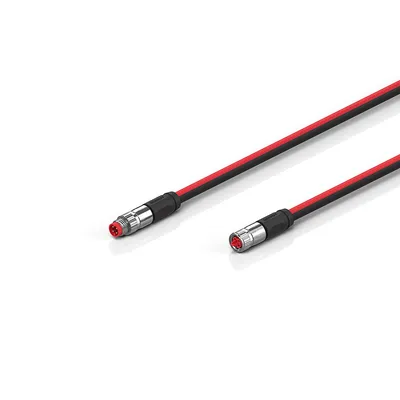

EtherCAT P cable, AWG22, PUR, fixed installation

Beckhoff

ZK7000-0202-0xxx

EtherCAT P cable, AWG22, PUR, drag-chain suitable

Beckhoff

ZK1093-3131-2xxx

EtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances

Beckhoff

ZK1093-6292-0xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Compare EtherCAT and fieldbus cables

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installation size	Outer cable diameter	A1	B1	A2
ZK1090-9191-6xxx	RJ45	5.4 mm ± 0.3 mm (0.213" ±0.0118")	44.0 mm	44.0 mm	—
ZK1091-1001-0xxx	SC/PC connector multimode	3.7 mm x 6,2 mm	—	—	—
ZK7001-0101-2xxx	M8	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")	41.00 mm	41.00 mm	Ø10.10 mm
ZK7001-0102-2xxx	M8	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")	41.00 mm	35.00 mm	Ø10.10 mm
ZK7001-0105-2xxx	M8	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")	41.00 mm	34.50 mm	Ø10.10 mm
ZK7000-0103-0xxx	M8	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")	41.00 mm	29.80 mm	—
ZK1096-8191-0xxx	RJ45	6.4 mm ± 0.3mm (0.252" ± 0.0118")	50.5 mm	45.5 mm	Ø 15.0 mm
ZK1096-8181-0xxx	M12	6.4 mm ± 0.3mm (0.252" ± 0.0118")	50.5 mm	50.5 mm	Ø 15.0 mm
ZK1090-6891-4xxx	RJ45	5.4 mm ± 0.3 mm (0.213" ±0.0118")	36.0 mm	44.0 mm	27.3 mm
ZK1096-8891-0xxx	RJ45	6.4 mm ± 0.3mm (0.252" ± 0.0118")	—	45.5 mm	—
ZK7001-0100-2xxx	open end	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")	41.00 mm	—	Ø10.10 mm
ZK7001-0303-2xxx	M8	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")	29.80 mm	29.80 mm	26.30 mm
ZK7000-0102-1xxx	M8	5.1 mm ± 0.15 mm (0.200787" ± 0.0059")	—	—	—
ZK1093-6161-2xxx	M12	3.65 mm ± 0.15 mm (0.1496" ± 0.0059")	50.00 mm	50.00 mm	19.30 mm
ZK1096-8691-0xxx	RJ45	6.4 mm ± 0.3mm (0.252" ± 0.0118")	48.5 mm	45.5 mm	Ø 21.5 mm
ZK1090-3133-3xxx	M8	4.9 mm ± 0.2mm (0.193" ± 0.0079")	41.00 mm	29.80 mm	Ø 10.1 mm
ZK1096-9191-3xxx	RJ45	6.2 mm ± 0.2mm (0.244" ± 0.0079")	42.00 mm	42.00 mm	—
ZK1093-6363-0xxx	M12	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")	35.30 mm	35.30 mm	32.50 mm
ZK1093-6363-4xxx	M12	5.4 mm ± 0.3 mm (0.213" ±0.0118")	35.30 mm	35.30 mm	32.50 mm
ZK7000-0202-1xxx	M8	5.1 mm ± 0.15 mm (0.200787" ± 0.0059")	35.00 mm	35.00 mm	Ø10.10 mm
ZK7000-0202-0xxx	M8	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")	35.00 mm	35.00 mm	Ø10.10 mm
ZK1093-3131-2xxx	M8	3.65 mm ± 0.15 mm (0.1496" ± 0.0059")	41.00 mm	41.00 mm	Ø 10.1 mm
ZK1093-6292-0xxx	RJ45	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")	43.00 mm	37.00 mm	M12 inner diameter, M16 outer diameter
