Segments Parts
Compare Segments
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power dissipation | DC bus capacitance | Dimensions – Width | Dimensions – Depth | Weight |
|---|---|---|---|---|---|

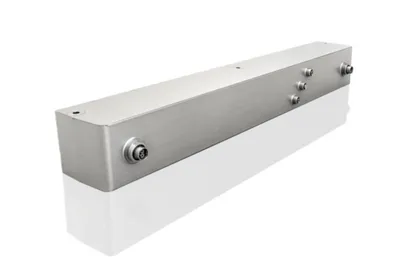

| 8F1I01.AA66.0100-1 | Max. 40 W | 1.48 mF ±20% | 658 mm | 114 mm | 11.8 kg |

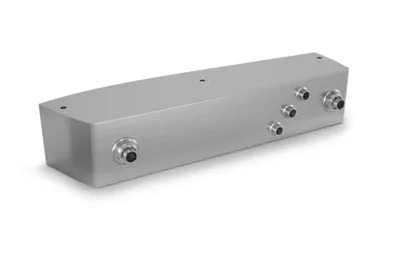

| 8F1I01.AB2B.0100-1 | Max. 30 W | 0.95 mF ±20% | 446 mm | 132 mm | 9.6 kg |

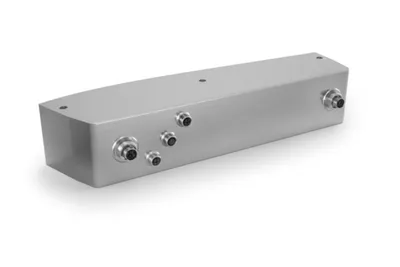

| 8F1I01.BA2B.0100-1 | Max. 30 W | 0.95 mF ±20% | 446 mm | 132 mm | 9.6 kg |

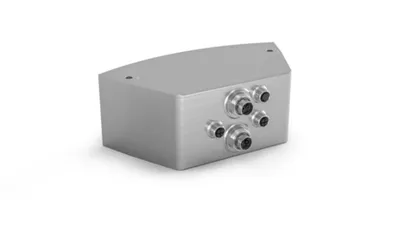

| 8F1I01.BB4B.0100-1 | Max. 17 W | 0.54 mF ±20% | 232 mm | 141 mm | 5.1 kg |

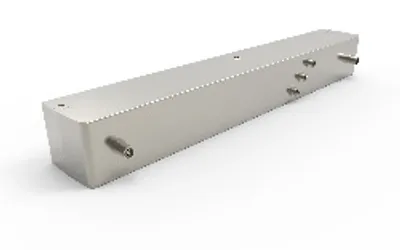

| 8F1I01.AA66.0000-1 | Max. 40 W | 1.48 mF ±20% | 658 mm | 114 mm | 11.8 kg |

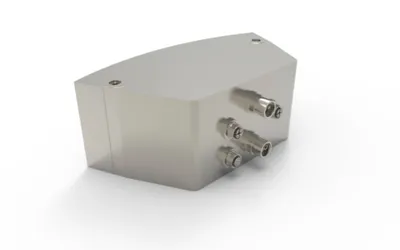

| 8F1I01.BB4B.0000-1 | Max. 17 W | 0.54 mF ±20% | 232 mm | 141 mm | 5.1 kg |

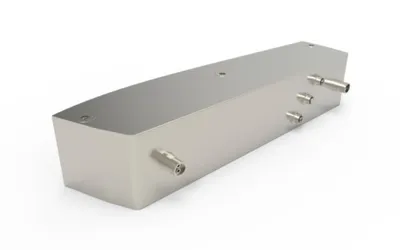

| 8F1I01.AB2B.0000-1 | Max. 30 W | 0.95 mF ±20% | 446 mm | 132 mm | 9.6 kg |

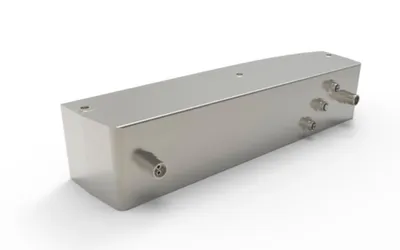

| 8F1I01.BA2B.0000-1 | Max. 30 W | 0.95 mF ±20% | 446 mm | 132 mm | 9.6 kg |
| 8F1I01.AA66.A000-1 | Max. 40 W | 1.48 mF ±20% | 658 mm | 114 mm | 11.8 kg |
| 8F1I01.AA8C.0100-1 | Max. 34 W | 1.08 mF ±20% | 300.8 mm | 208.6 mm | 11.1 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Input voltage | Max. 58 VDC |
| Input current | Max. 31 A |
| Switching frequency | 40 kHz |
| Max. line length | 30 m between 2 stations (note: Use of cables 8F1CP0xxx.xxxxx-0.) |
