PS9000 Parts

Beckhoff

Buffer module PS9000; output: 24 V DC, 20 A, 200 ms; input: 24 V DC

Beckhoff

Buffer module PS9000; output: 24 V DC, 40 A, 160 ms; input: 24 V DC

Beckhoff

Buffer module PS9000; output: 48 V DC, 20 A, 100 ms; input: 48 V DC

Beckhoff

MOSFET redundancy module PS9400; input: 12…28 V DC, 2 x 10 A; output: 12…28 V DC, 1 x 20 A

Beckhoff

MOSFET redundancy module PS9400; input: 12…28 V DC, 2 x 20 A; output: 12…28 V DC, 1 x 40 A

Beckhoff

MOSFET redundancy module PS9400; input: 24…56 V DC, 2 x 20 A; output: 24…56 V DC, 1 x 40 A

Beckhoff

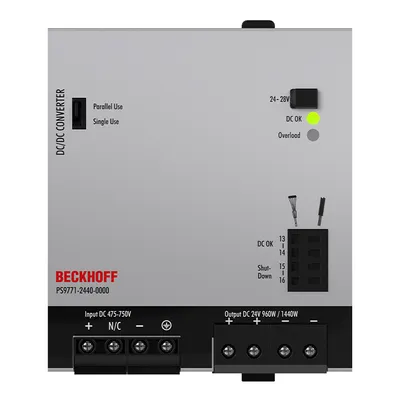

DC/DC converter PS9700; output: 24 V DC/40 A; input: 475…750 V DC

Beckhoff

DC/DC converter PS9700; output: 24 V DC/10 A; input: 18…35 V DC

Beckhoff

DC/DC converter PS9700; output: 24 V DC/10 A; input: 36…60 V DC

Compare PS9000

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Input voltage	Output current	Weight	Dimensions (W x H x D)	Input current
PS9011-2420-0001	DC 24 V	20 A	approx. 740 g	64 mm x 124 mm x 102 mm	—
PS9011-2440-0000	DC 24 V	40 A	approx. 1400 g	64 mm x 124 mm x 142 mm	—
PS9031-4820-0001	DC 48 V	20 A	approx. 740 g	64 mm x 124 mm x 102 mm	—
PS9401-2420-0000	DC 12…28 V	0…20 A	approx. 250 g	32 mm x 124 mm x 117 mm	2 x 0…10 A
PS9401-2440-0000	DC 12…28 V	0…40 A	approx. 340 g	36 mm x 124 mm x 127 mm	2 x 0…20 A
PS9421-4840-0000	DC 24…56 V	0…40 A	approx. 360 g	46 mm x 124 mm x 127 m	2 x 20 A
PS9771-2440-0000	475…750 V DC (-32.6%/+7%)	40 A	approx. 1500 g	110 mm x 124 mm x 127 mm	2.2…1.4 A
PS9711-2410-0000	24 V DC (-25%/+46%)	10 A	approx. 500 g	42 mm x 124 mm x 117 mm	10.5 A
PS9731-2410-0000	48 V DC (±25 %)	10 A	approx. 520 g	42 mm x 124 mm x 117 mm	5.4 A

Shock resistance	conforms to EN 60068-2-27
Vibration resistance	conforms to EN 60068-2-6
Protection rating	IP20
Material	aluminum
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
