IE2403Extension Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, IP20 connector
Digital-Kombi IE23xx, IE24xx Parts
Beckhoff
IE2302Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff
IE2301Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff
IE2312Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, M12
Beckhoff
IE2311Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, M8
Beckhoff

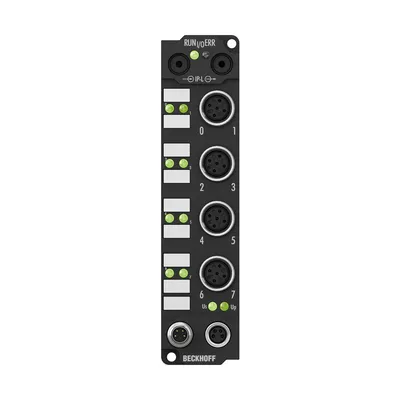

IE2322Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12
Beckhoff
IE2321Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8
Beckhoff
IE2332Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 2 A, M12
Beckhoff
IE2331Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 2 A, M8
Beckhoff
IE2401Extension Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, M8
Compare Digital-Kombi IE23xx, IE24xx
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of channels | Input/output connections | Input filter | Short-circuit current | Auxiliary power current |
|---|---|---|---|---|---|
| IE2403 | 8 inputs + 8 outputs | connector with spring-loaded system | 3.0 ms | typ. 1.5 A | typ. 20 mA per channel |
| IE2302 | 4 inputs + 4 outputs | M12, screw type | 3.0 ms | typ. 1.5 A | typ. 20 mA per channel |
| IE2301 | 4 inputs + 4 outputs | M8, screw type | 3.0 ms | typ. 1.5 A | typ. 20 mA per channel |
| IE2312 | 4 inputs + 4 outputs | M12, screw type | 0.2 ms | typ. 1.5 A | typ. 20 mA per channel |
| IE2311 | 4 inputs + 4 outputs | M8, screw type | 0.2 ms | typ. 1.5 A | typ. 20 mA per channel |
| IE2322 | 4 inputs + 4 outputs | M12, screw type | 3.0 ms | typ. 4 A | typ. 30 mA per channel |
| IE2321 | 4 inputs + 4 outputs | M8, screw type | 3.0 ms | typ. 4 A | typ. 30 mA per channel |
| IE2332 | 4 inputs + 4 outputs | M12, screw type | 0.2 ms | typ. 4 A | typ. 30 mA per channel |
| IE2331 | 4 inputs + 4 outputs | M8, screw type | 0.2 ms | typ. 4 A | typ. 30 mA per channel |
| IE2401 | 8 inputs + 8 outputs | M8, screw type | 3.0 ms | typ. 1.5 A | typ. 20 mA per channel |
Common to all listed parts
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Current consumption from US (without sensor current) | 25 mA |
| Operating temperature | 0…55°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
