BKxxxx | Bus Coupler Parts




Compare BKxxxx | Bus Coupler
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Bus Terminals | Max. number of bytes fieldbus | Data transfer rates | Weight | Operating temperature |
|---|---|---|---|---|---|
| BK4000 | 64 | 64 byte input and 64 byte output | 500 kbaud | approx. 170 g | 0…55°C |
| BK2020 | 64 (255 with K-bus extension) | 512 byte input and 512 byte output | 2.5 Mbaud | approx. 150 g | 0…55°C |
| BK2000 | 64 | 512 byte input and 512 byte output | 2.5 Mbaud | approx. 150 g | 0…55°C |

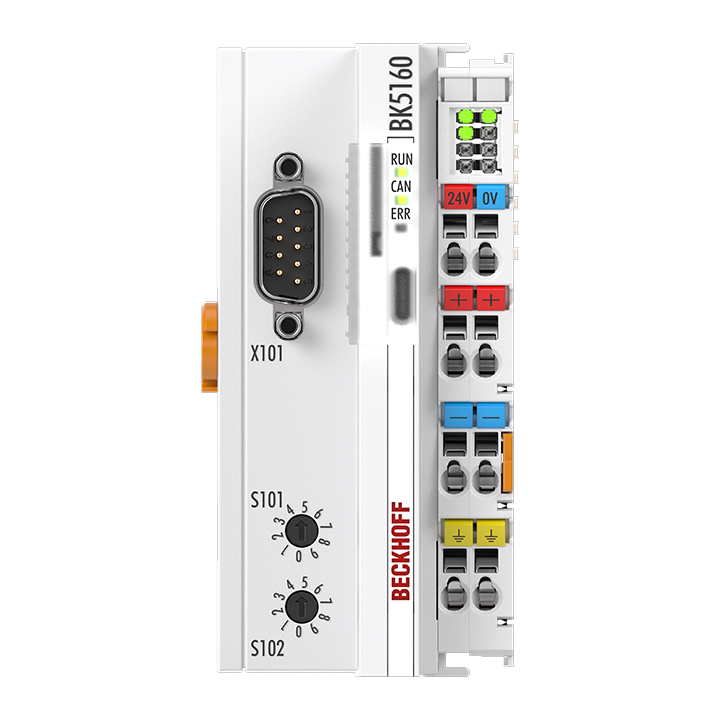

| BK5160 | 64 (255 with K-bus extension) | 16 Tx/Rx PDOs | automatic detection up to 1 Mbaud | approx. 135 g | -25…+60°C |
Common to all listed parts
| Power supply | 24 V DC (-15%/+20%) |
| Current supply K-bus | 1750 mA |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
