Home / I/O / EtherCAT plug-in modules / EJ2xxx | Digital output

EJ2xxx | Digital output Parts

Beckhoff EJ2918 – EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic

Beckhoff

EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic

Beckhoff EJ2914 – EtherCAT plug-in module, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic

Beckhoff

EtherCAT plug-in module, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic

Beckhoff EJ2889 – EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff

EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff EJ2008 – EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A

Beckhoff

EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A

Beckhoff EJ2809 – EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff

EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff EJ2502 – EtherCAT plug-in module, 2-channel PWM output, 24 V DC, 0.5 A

Beckhoff

EtherCAT plug-in module, 2-channel PWM output, 24 V DC, 0.5 A

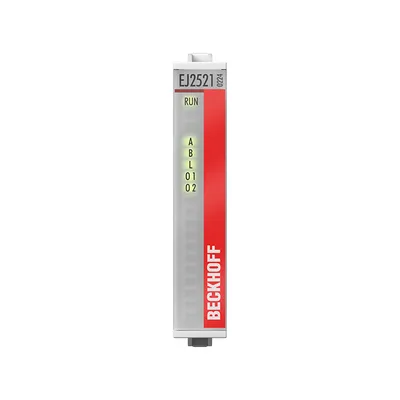

Beckhoff EJ2521-0224 – EtherCAT plug-in module, 1-channel pulse train output, 24 V DC, 1 A, with capture/compare input/output

Beckhoff

EtherCAT plug-in module, 1-channel pulse train output, 24 V DC, 1 A, with capture/compare input/output

Beckhoff EJ2128 – EtherCAT plug-in module, 8-channel digital output, 3.3 V DC/5 V DC, 20 mA

Beckhoff

EtherCAT plug-in module, 8-channel digital output, 3.3 V DC/5 V DC, 20 mA

Beckhoff EJ2522 – EtherCAT plug-in module, 2-channel pulse train output, incr. enc. simulation, RS422, 50 mA

Beckhoff

EtherCAT plug-in module, 2-channel pulse train output, incr. enc. simulation, RS422, 50 mA

Beckhoff EJ2262 – EtherCAT plug-in module, 2-channel digital output, 24 V DC, 0.5 A, oversampling

Beckhoff

EtherCAT plug-in module, 2-channel digital output, 24 V DC, 0.5 A, oversampling

Beckhoff EJ2564 – EtherCAT plug-in module, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common anode

Beckhoff

EtherCAT plug-in module, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common anode

Compare EJ2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Current consumption E-bus	Weight	Position of the coding pins	Load type	Auxiliary power current
EJ2918	typ. 310 mA	approx. 62 g	4, 6	—	—
EJ2914	typ. 260 mA	approx. 50 g	4, 6	—	—
EJ2889	typ. 130 mA	approx. 30 g	1, 4	ohmic, inductive, lamp load	typ. 30 mA + load
EJ2008	typ. 90 mA	approx. 30 g	1, 4	ohmic, inductive, lamp load	no data
EJ2809	typ. 110 mA	approx. 30 g	1, 4	ohmic, inductive, lamp load	typ. 30 mA + load
EJ2502	typ. 110 mA	approx. 30 g	1, 4	ohmic, inductive, lamp load	typ. 10 mA + load
EJ2521-0224	typ. 135 mA	approx. 30 g	1, 4	ohmic, inductive	—
EJ2128	typ. 80 mA	approx. 30 g	3, 4	ohmic, lamp load	typ. 12 mA + load
EJ2522	typ. 180 mA	approx. 50 g	1, 4	ohmic, min. 220 Ω	typ. 50 mA (load dependent)
EJ2262	typ. 135 mA	approx. 30 g	1, 4	ohmic, inductive, lamp load	typ. 10 mA + load
EJ2564	typ. 85 mA	approx. 30 g	2, 6	LED (ohmic)	—

Common to all listed parts

Design form	EtherCAT I/O plug-in module
Material	polycarbonate
Installation	on signal distribution board
Locking	latching lug in circuit board cut-out
