ER3xxx | Analog input Parts

Showing 1–5 of 5 parts
Beckhoff ER3174-0002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, zinc die-cast
Beckhoff
ER3174-0002

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, zinc die-cast

Beckhoff ER3184-0002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12, zinc die-cast
Beckhoff
ER3184-0002

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12, zinc die-cast

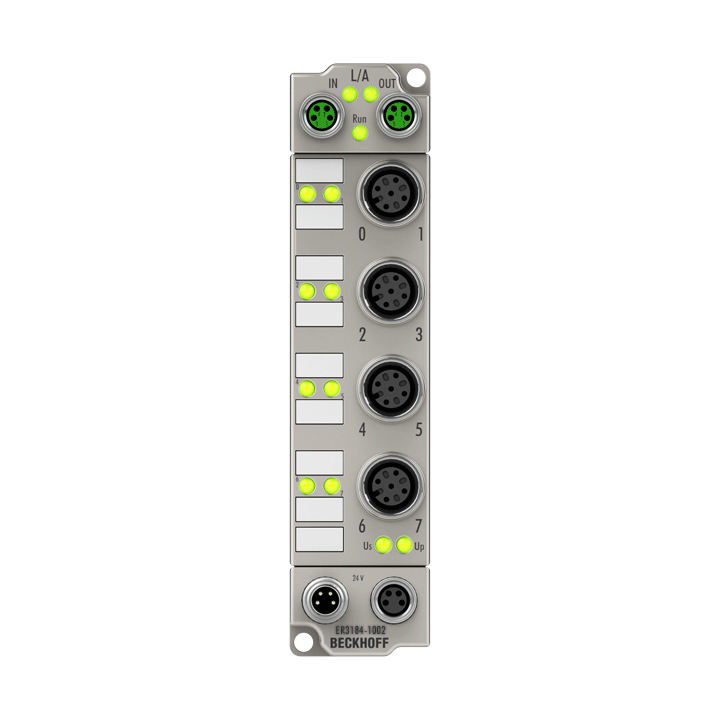

Beckhoff ER3184-1002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12, zinc die-cast
Beckhoff
ER3184-1002

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12, zinc die-cast

Beckhoff ER3204-0002 – EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12, zinc die-cast
Beckhoff
ER3204-0002

EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12, zinc die-cast

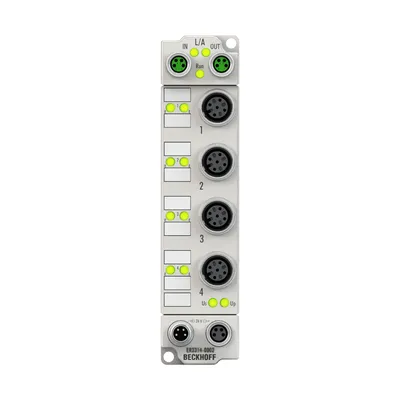

Beckhoff ER3314-0002 – EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, zinc die-cast
Beckhoff
ER3314-0002

EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, zinc die-cast

Compare ER3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNResolutionDistributed clocksInput filterSensor supply
ER3174-000216 bit (incl. sign)yesconfigurablefrom load supply voltage UP
ER3184-000216 bit (incl. sign)yesconfigurablefrom load supply voltage UP
ER3184-100216 bit (incl. sign)yesconfigurablefrom load supply voltage UP
ER3204-00020.1°C per digit–5 variations, configurable–
ER3314-00020.1°C per digit–5 variations, configurable–

Common to all listed parts

ProtocolEtherCAT
Bus interface2 x M8 socket, 4-pin, a-coded, shielded
Nominal voltage24 V DC (-15%/+20%)
Current consumption from US120 mA
Electrical isolation500 V
Weightapprox. 265 g
Operating temperature-25…+60°C
Storage temperature-40…+85°C
