CP27xx Parts
Compare CP27xx
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Memory | Ethernet | Interfaces | Operating system |
|---|---|---|---|---|
| CP27xx-0010 | 2 GB DDR3L RAM | 2 x 100/1000BASE-T on-board | 4 x USB 2.0, 1 x DVI | Windows Embedded Compact 7, English |
| CP27xx-0020 | 4 GB DDR4 RAM | 2 x 100/1000BASE-T on-board | 2 x USB 3.0, 2 x USB 2.0, 1 x DVI | – |
| CP27xx-0030 | 4 GB DDR4 RAM | 2 x 100/1000/2500BASE-T on-board | 2 x USB 3.1 Gen. 2, 2 x USB 2.0, 1 x DVI | – |
Common to all listed parts

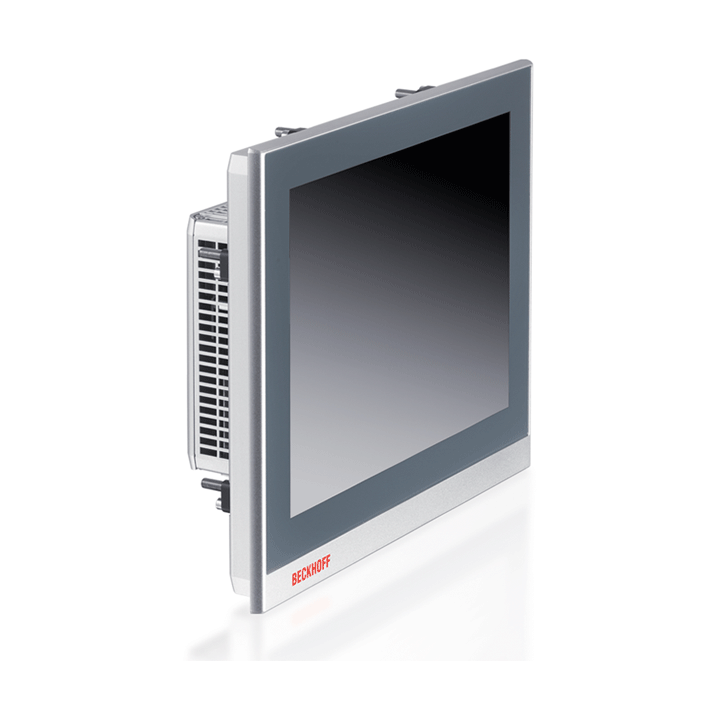

| Device type | Fanless multi-touch built-in Panel PC |
| Housing | aluminum housing with glass front |
| Slots for hard disk/flash | 2 slots for CFast |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Protection rating | front side IP65, rear side IP20 |
| Operating temperature | 0…55°C |
| Touch screen | multi-finger touch screen |
| PCIe®/PCI™ slots | – |
