SCALANCE XF-200 managed Parts
Compare SCALANCE XF-200 managed
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product type designation | number of electrical connections — for network components or terminal equipment | type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | MTBF |
|---|---|---|---|---|---|

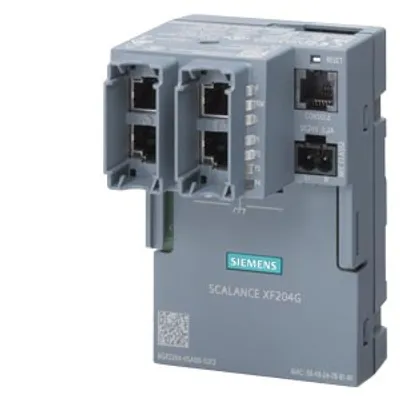

| 6GK5204-0GA00-1UF2 | XF204G | 4; RJ45 | 4.3 W | 0.2 A | 73 a |

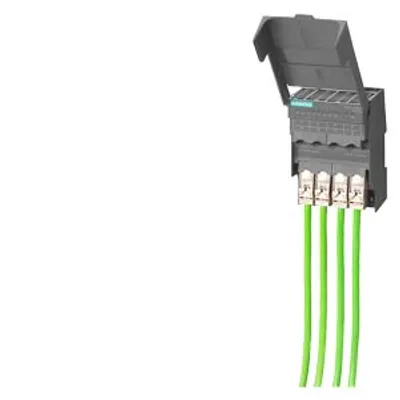

| 6GK5208-0BA00-2AF2 | XF208 | 8 | 3.12 W | 0.13 A | 54.8 a |

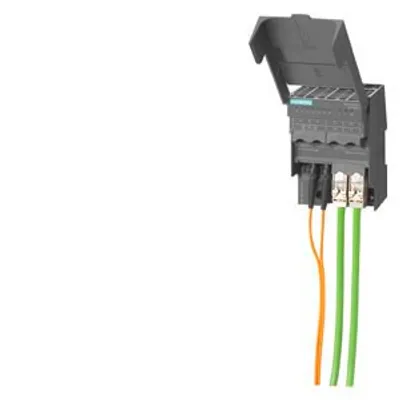

| 6GK5206-1BC00-2AF2 | XF206-1 | 6 | 4.08 W | 0.17 A | 43.52 a |

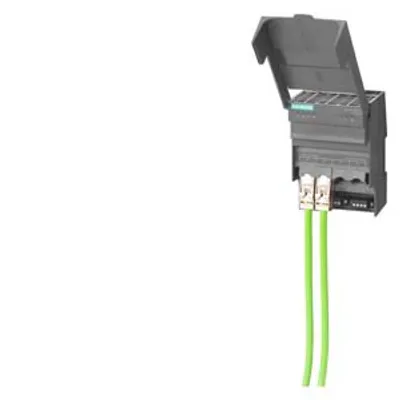

| 6GK5204-0BA00-2AF2 | XF204 | 4 | 2.64 W | 0.11 A | 48.03 a |
Common to all listed parts
| number of electrical connections — for power supply | 1 |
| design of the removable storage — C-PLUG | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| fastening method — 35 mm DIN-rail mounting | Yes |
