194E Load Switches Parts
























Compare 194E Load Switches
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Size | Pole Configuration | Configuration | Left Side Modifications | Right Side Modifications |
|---|---|---|---|---|---|

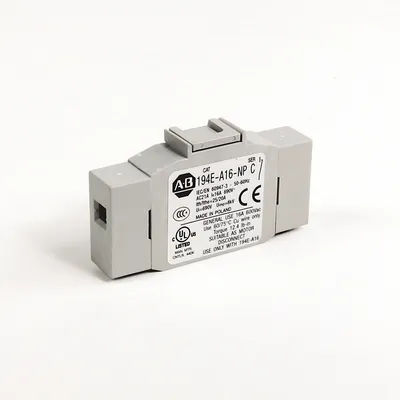

| 194E-A16-1753-4N | 16A | 3 Poles | OFF-ON 90° | — | — |
| 194E-A16-1753-4G | 16A | 3 Poles | OFF-ON 90° | — | — |
| 194E-A16-1753-4A | 16A | 3 Poles | OFF-ON 90° | — | — |
| 194E-A100-3753 | 100A | 3 Poles | Changeover 1-0-2 90° | — | — |

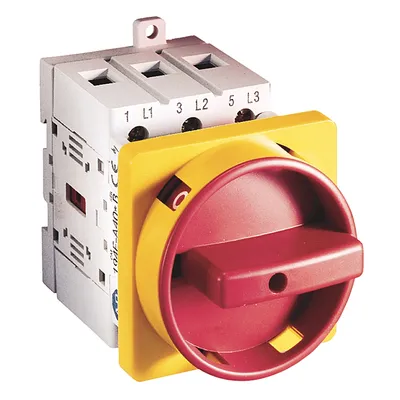

| 194E-A100-1756 | 100A | 6 Poles | OFF-ON 90° | — | — |

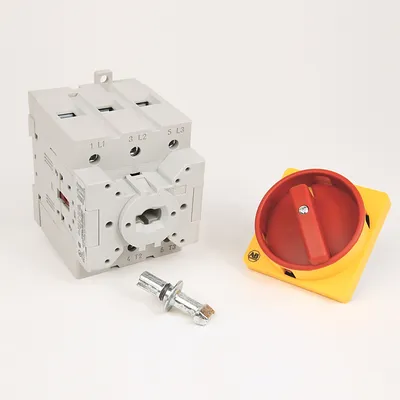

| 194E-A100-1753-6N | 100A | 3 Poles | OFF-ON 90° | — | — |
| 194E-A100-1753-6A | 100A | 3 Poles | OFF-ON 90° | — | — |
| 194E-KA20-PE-P11 | 25A | 3 Poles | OFF-ON 90° | Earthing Terminal (Ground) | Auxiliary Contact (1 N.O. 1 N.C.) |
| 194E-KA20-PD10-NP | 25A | 3 Poles | OFF-ON 90° | Auxiliary Contact (1 N.O.E.B.) | Power Pole |
| 194E-KA20-P22-P22 | 25A | 3 Poles | OFF-ON 90° | Auxiliary Contact (2 N.O. 2 N.C.) | Auxiliary Contact (2 N.O. 2 N.C.) |
| 194E-KA32X-6 | 32A | 6 Poles | OFF-ON 90° | No Modification | No Modification |
| 194E-KA32EX-P22-6 | 32A | 6 Poles | OFF-ON 90° | Auxiliary Contact (2 N.O. 2 N.C.) | No Modification |
| 194E-KA32EX-P11-PE-6 | 32A | 6 Poles | OFF-ON 90° | Auxiliary Contact (1 N.O. 1 N.C.) | Earthing Terminal (Ground) |

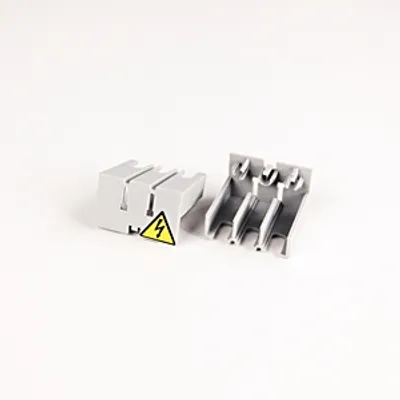

| 194E-KA32E-TN-PE | 32A | 3 Poles | OFF-ON 90° | Neutral Terminal (Unswitched) | Earthing Terminal (Ground) |
| 194E-KA32E-PE-TN | 32A | 3 Poles | OFF-ON 90° | Earthing Terminal (Ground) | Neutral Terminal (Unswitched) |
| 194E-KA32E-P22 | 32A | 3 Poles | OFF-ON 90° | Auxiliary Contact (2 N.O. 2 N.C.) | No Modification |
| 194E-KA20-P11-PE | 25A | 3 Poles | OFF-ON 90° | Auxiliary Contact (1 N.O. 1 N.C.) | Earthing Terminal (Ground) |

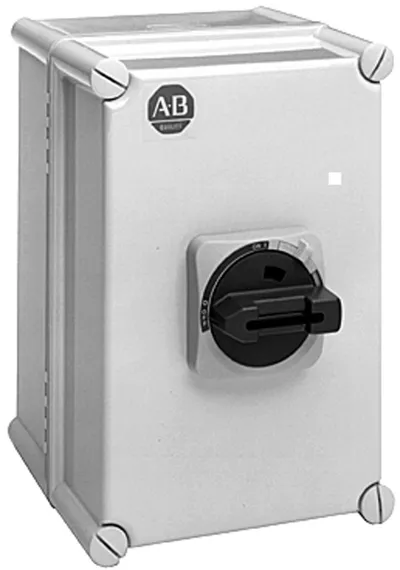

| 194E-KA20-P11-P11 | 25A | 3 Poles | OFF-ON 90° | Auxiliary Contact (1 N.O. 1 N.C.) | Auxiliary Contact (1 N.O. 1 N.C.) |
| 194E-KA20 | 25A | 3 Poles | OFF-ON 90° | No Modification | No Modification |
| 194E-KA16X-PD10-6 | 16A | 6 Poles | OFF-ON 90° | Auxiliary Contact (1 N.O.E.B.) | No Modification |
| 194E-KA16X-P22-6 | 16A | 6 Poles | OFF-ON 90° | Auxiliary Contact (2 N.O. 2 N.C.) | No Modification |
Common to all listed parts
| Installation | Base / DIN Rail |
