SIRIUS 3RS2 temperature monitoring relays Parts
Available on requestSiemens 3RS2900-1AW30 – Sensor extension module for 3RS26/8 Temperature monitoring…MPN: 3RS2900-1AW30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2900-1AA30 – Sensor extension module for 3RS26/8 Temperature monitoring…MPN: 3RS2900-1AA30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2800-2BA40 – Temperature monitoring relay with display and IO-Link for…MPN: 3RS2800-2BA40 · Siemens
Price on request
Request a quote

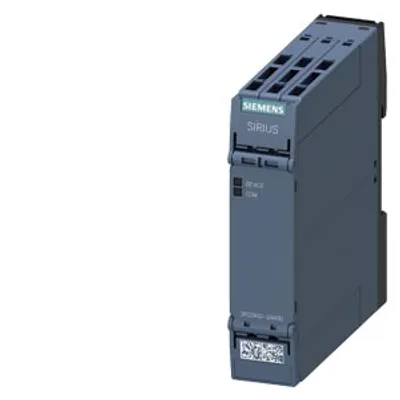

Available on requestSiemens 3RS2900-2AW30 – Sensor extension module for 3RS26/8 Temperature monitoring…MPN: 3RS2900-2AW30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2900-2AA30 – Sensor extension module for 3RS26/8 Temperature monitoring…MPN: 3RS2900-2AA30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2500-2AA30 – Temperature monitoring relay Pt100, thermocouple JMPN: 3RS2500-2AA30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2500-1AW30 – Temperature monitoring relay Pt100, thermocouple JMPN: 3RS2500-1AW30 · Siemens
Price on request
Request a quote
Available on requestSiemens 3RS2500-1AA30 – Temperature monitoring relay Pt100, thermocouple JMPN: 3RS2500-1AA30 · Siemens
Price on request
Request a quoteCompare SIRIUS 3RS2 temperature monitoring relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | measurable temperature — full-scale value | Net Weight | number of CO contacts for auxiliary contacts | PFHD with high demand rate according to IEC 62061 | certificate of suitability relating to ATEX |
|---|---|---|---|---|---|
| 3RS2900-1AW30 | 750 °C | 0.151 kg | 0 | 2.9E-7 1/h | Yes, with 3RS26/3RS28 digital device |
| 3RS2900-1AA30 | 750 °C | 0.145 kg | 0 | 2.6E-7 1/h | Yes, with 3RS26/3RS28 digital device |
| 3RS2800-2BA40 | 1 800 °C | 0.154 kg | 2 | 3.9E-7 1/h | Yes, with 3RS29 sensor expansion module |
| 3RS2900-2AW30 | 750 °C | 0.14 kg | 0 | 2.9E-7 1/h | Yes, with 3RS26/3RS28 digital device |
| 3RS2900-2AA30 | 750 °C | 0.146 kg | 0 | 2.6E-7 1/h | Yes, with 3RS26/3RS28 digital device |
| 3RS2500-2AA30 | 1 000 °C | 0.13 kg | 1 | — | No |
| 3RS2500-1AW30 | 1 000 °C | 0.149 kg | 1 | — | No |
| 3RS2500-1AA30 | 1 000 °C | 0.142 kg | 1 | — | No |
Common to all listed parts
| product type designation | 3RS2 |
| product function | temperature monitoring |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| shock resistance according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
