Manifold directional control valves Parts

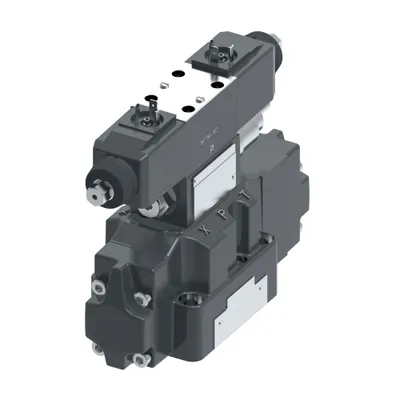

Danfoss

02-147391

KDG5V 7 2C180N X H MU H110, KDG5V72C180NXHMUH110

Danfoss

02-147364

DG4V 3 22B MU H7 60, DG4V322BMUH760

Danfoss

02-147347

KDG5V 5 2C90N EX H MU H110, KDG5V52C90NEXHMUH110

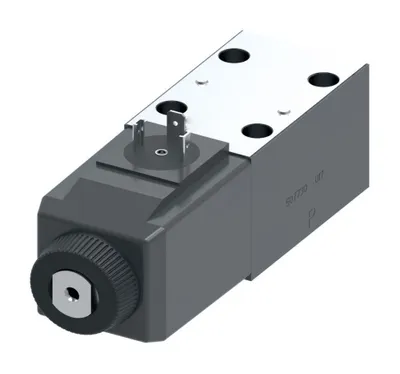

Danfoss

02-147319

DG4V 3 22AL MU A6 60, DG4V322ALMUA660

Danfoss

02-147289

KDG4V-3-33C30X-H-M-U-G7-60, KDG4V333C30XHMUG760

Danfoss

02-147284

KDG5V 7 2C180N EX H MU H1 10, KDG5V72C180NEXHMUH110

Danfoss

02-147247

KDG4V 5 2C65S Z MU1 H6 30, KDG4V52C65SZMU1H630

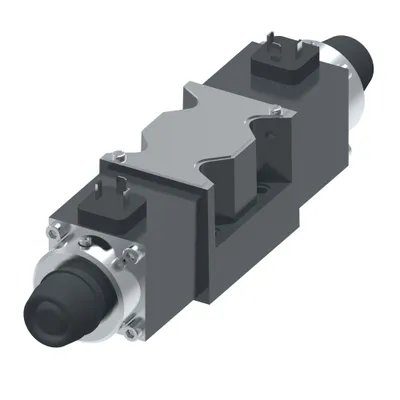

Danfoss

02-147171

KDG4V 5 2C65S H MU H6 30, KDG4V52C65SHMUH630

Danfoss

02-147108

KDG4V 3 33C30X H MU H7 60, KDG4V333C30XHMUH760

Danfoss

02-147019

DG4V 3 22A M U D6 60, DG4V322AMUD660

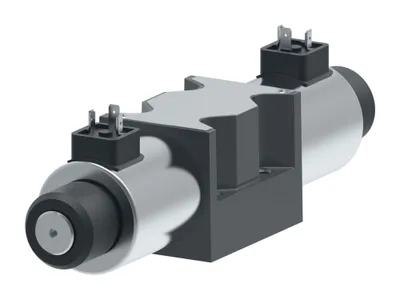

Danfoss

02-146952

DG4V 5 3C M U NN6 20, DG4V53CMUNN620

Danfoss

02-146947

DG4V 3 24AL M U HL7 60, DG4V324ALMUHL760

Danfoss

02-146928

KDG4V 3 33C13N Z M U H760, KDG4V333C13NZMUH760

Danfoss

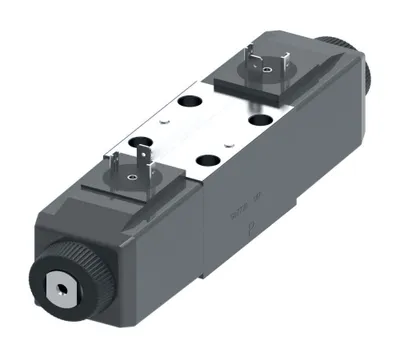

02-146927

KDG4V 3 33C07N Z M U H760, KDG4V333C07NZMUH760

Danfoss

02-146926

KDG4V 3 33C03F Z M U H760, KDG4V333C03FZMUH760

Danfoss

02-146925

KDG4V 3 2C28S Z M U H7 60, KDG4V32C28SZMUH760

Danfoss

02-146924

KDG4V 3 2C03F Z MU H7 60, KDG4V32C03FZMUH760

Danfoss

02-146909

DG4V 3 7BL M U HL7 60, DG4V37BLMUHL760

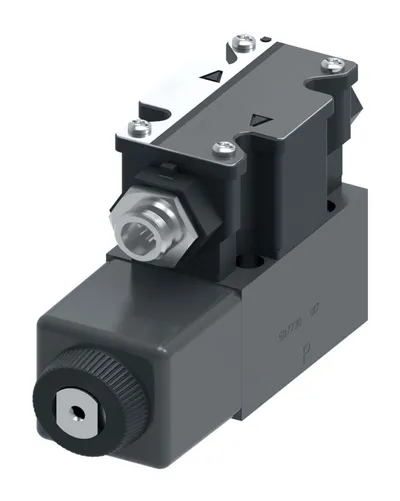

Danfoss

02-146904

DG4V 3 2A M FPA5WL H7 60, DG4V32AMFPA5WLH760

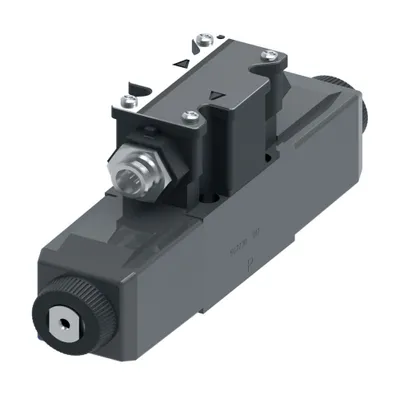

Danfoss

02-146885

DG4V 3 6C M FPA5WL H7 60, DG4V36CMFPA5WLH760

Danfoss

02-146878

DG4V 3 6C VM FPA5WL B6 6 0, DG4V36CVMFPA5WLB660

Danfoss

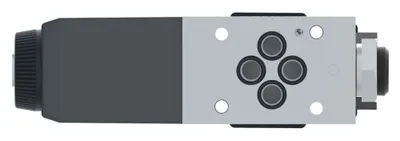

02-146856

DG4V 3 22A M FW H7 60, DG4V322AMFWH760

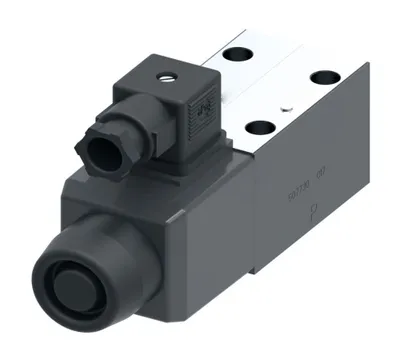

Danfoss

02-146785

DG4V-3-2A-H-M-U1-B6-60-EN38, DG4V32AHMU1B660EN38

Danfoss

02-146722

KDG4V 3 2C13N Z M U H7 60, KDG4V32C13NZMUH760

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product length in	Product length mm	Spool Type
02-147391	KDG5V72C180NXHMUH110	8.800	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-147364	DG4V322BMUH760	3.420	6.140	155.956	Spool 22
02-147347	KDG5V52C90NEXHMUH110	8.470	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-147319	DG4V322ALMUA660	3.420	5.750	146.050	Spool 22
02-147289	KDG4V333C30XHMUG760	3.400	9.370	237.998	P blocked, A & B to tank
02-147284	KDG5V72C180NEXHMUH110	8.800	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-147247	KDG4V52C65SZMU1H630	4.180	10.040	255.016	ISO4401-10/NFPA D10/CETOP 10/NG32
02-147171	KDG4V52C65SHMUH630	4.180	10.040	255.016	ISO4401-10/NFPA D10/CETOP 10/NG32
02-147108	KDG4V333C30XHMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-147019	DG4V322AMUD660	3.420	5.750	146.050	Spool 22
02-146952	DG4V53CMUNN620	3.650	9.680	245.872	Spool 3
02-146947	DG4V324ALMUHL760	3.420	6.140	155.956	Spool 24
02-146928	KDG4V333C13NZMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-146927	KDG4V333C07NZMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-146926	KDG4V333C03FZMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-146925	KDG4V32C28SZMUH760	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-146924	KDG4V32C03FZMUH760	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-146909	DG4V37BLMUHL760	3.420	6.140	155.956	Spool 7
02-146904	DG4V32AMFPA5WLH760	3.570	6.140	155.956	Spool 2
02-146885	DG4V36CMFPA5WLH760	3.570	8.660	219.964	Spool 6
02-146878	DG4V36CVMFPA5WLB660	3.570	7.870	199.898	Spool 6
02-146856	DG4V322AMFWH760	3.570	6.140	155.956	Spool 22
02-146785	DG4V32AHMU1B660EN38	3.420	5.750	146.050	Spool 2
02-146722	KDG4V32C13NZMUH760	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32

Common to all listed parts

Working temp min C	-20
Working temp min F	-4
