Manifold directional control valves Parts
Compare Manifold directional control valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 02-319313 | 180.00 | 48.00 | 100.00 | 26.40 | KDG5V72C180N100MUH110 |
| 02-319240 | — | — | — | — | DG4V30BMFPA3WLB660 |
| 02-319162 | — | — | — | — | DG4V36CHMU1B660EN38 |

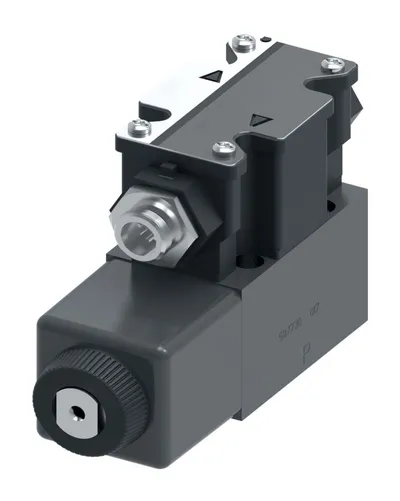

| 02-318612 | — | — | — | — | DG4V30AMFPA5WLB660 |
| 02-318526 | 7.00 | 1.80 | 7.00 | 1.80 | KDG4V32C07NMUH760 |

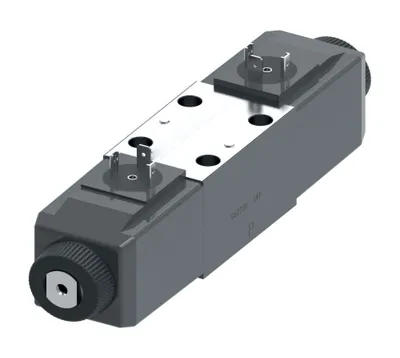

| 02-318525 | 20.00 | 5.30 | 20.00 | 5.30 | KDG4V32C20NMUG760 |

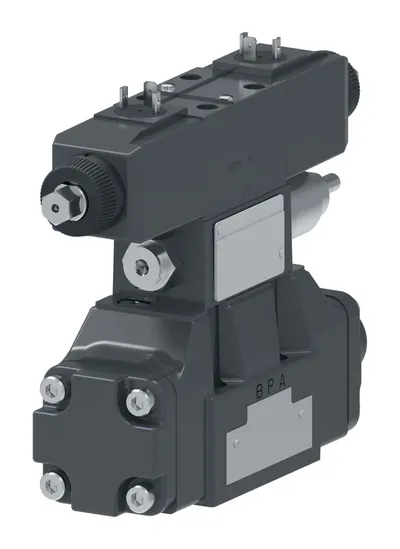

| 02-318522 | 90.00 | 24.00 | 90.00 | 24.00 | KDG5V52C90NXMUH110 |

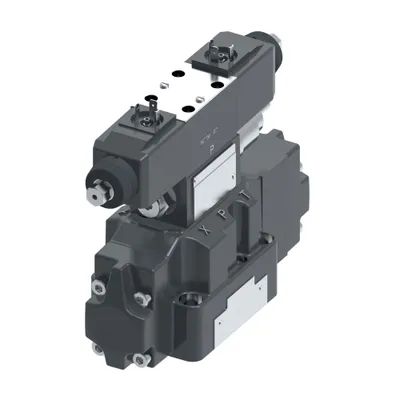

| 02-318387 | 170.00 | 45.00 | 170.00 | 45.00 | KDG5V733C170NXVMUH110 |
| 02-318377 | 20.00 | 5.30 | 10.00 | 2.70 | KDG4V333C20N10MUH760 |
| 02-318376 | 13.00 | 3.40 | 13.00 | 3.40 | KDG4V333C13NMUH760 |
| 02-318375 | 7.00 | 1.80 | 7.00 | 1.80 | KDG4V333C07NMUH760 |
| 02-318364 | 20.00 | 5.30 | 10.00 | 2.70 | KDG4V32C20N10ZMUH760 |
| 02-318320 | 20.00 | 5.30 | 20.00 | 5.30 | KDG4V32C20NHMUG760 |
| 02-318305 | 13.00 | 3.40 | 13.00 | 3.40 | KDG4V32C13NVMUH760 |
| 02-318243 | 170.00 | 45.00 | 170.00 | 45.00 | KDG5V733C170NEMUH110 |

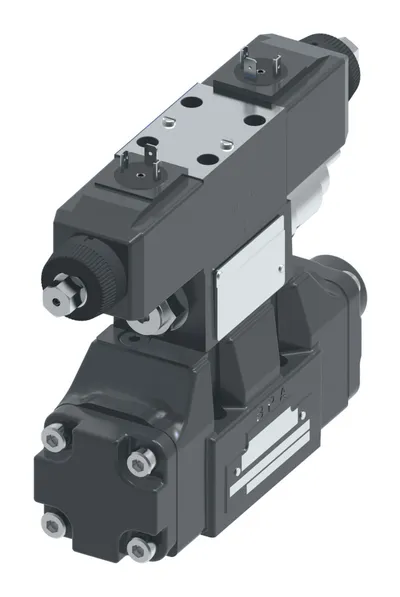

| 02-318242 | 80.00 | 21.00 | 80.00 | 21.00 | KDG5V533C80NXMUH110 |

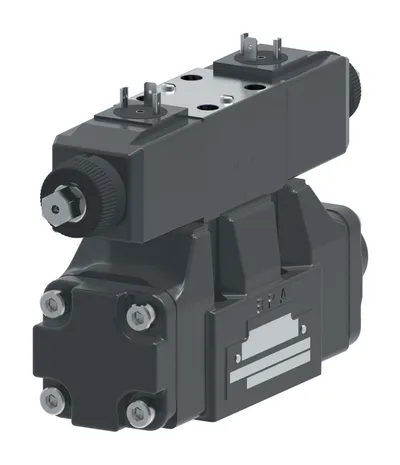

| 02-318228 | 80.00 | 21.00 | 80.00 | 21.00 | KDG5V533C80NMUH110 |
| 02-318206 | 180.00 | 48.00 | 180.00 | 48.00 | KDG5V72C180NMUH110 |

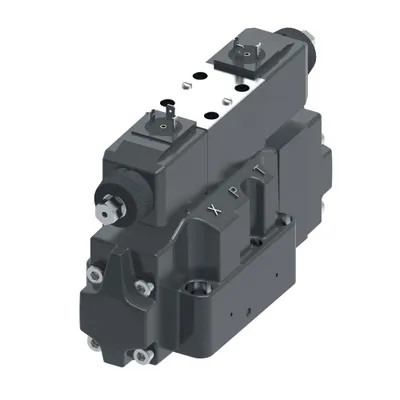

| 02-318195 | 180.00 | 48.00 | 180.00 | 48.00 | KDG5V72C180NTMUH110 |

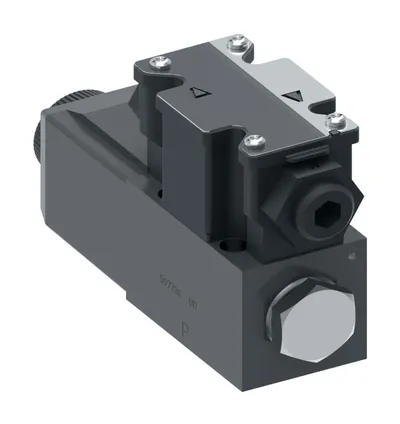

| 02-317989 | — | — | — | — | DG4V30AMFWB660EN21 |
| 02-317962 | — | — | — | — | DG4V30BMUH760EN21 |

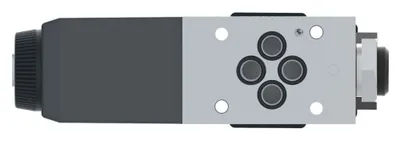

| 02-317877 | — | — | — | — | DG4V32AMFWH760EN21 |
| 02-317856 | 19.00 | 5.00 | 19.00 | 5.00 | KDG4V3S2C19NHMUH560 |

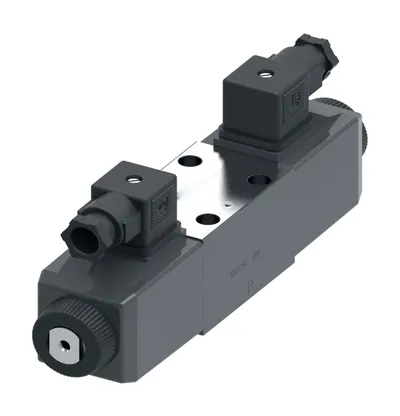

| 02-317509 | 8.00 | 2.10 | 8.00 | 2.10 | KDG4V3S2C08NMU1H560 |
Common to all listed parts
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
