3RW55 Failsafe soft starters Parts
Compare 3RW55 Failsafe soft starters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 40 °C rated value | operational current — at 40 °C rated value minimum | operational current — at 50 °C rated value | operational current — at 60 °C rated value |
|---|---|---|---|---|---|
| 3RW5516-1HF04 | 2.001 kg | 32 A | 6.5 A | 28.4 A | 26 A |
| 3RW5515-1HF04 | 2.218 kg | 25 A | 5 A | 22.3 A | 19.6 A |
| 3RW5543-6HF14 | 9.563 kg | 210 A | 42 A | 186 A | 170 A |
| 3RW5543-6HF04 | 9.55 kg | 210 A | 42 A | 186 A | 170 A |
| 3RW5527-3HF14 | 6.525 kg | 93 A | 19 A | 82.5 A | 75.5 A |

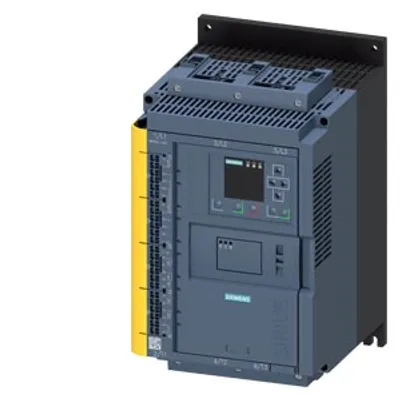

| 3RW5527-3HF04 | 6.478 kg | 93 A | 19 A | 82.5 A | 75.5 A |
| 3RW5527-1HF14 | 6.513 kg | 93 A | 19 A | 82.5 A | 75.5 A |
| 3RW5525-3HF14 | 5.302 kg | 63 A | 13 A | 55.5 A | 50.5 A |
| 3RW5525-3HF04 | 5.284 kg | 63 A | 13 A | 55.5 A | 50.5 A |
| 3RW5515-3HF14 | 2.21 kg | 25 A | 5 A | 22.3 A | 19.6 A |

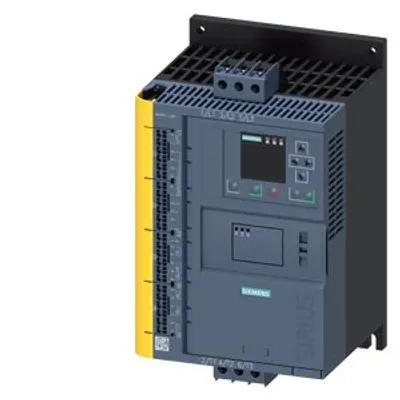

| 3RW5515-3HF04 | 2.195 kg | 25 A | 5 A | 22.3 A | 19.6 A |
| 3RW5545-6HF14 | 9.361 kg | 315 A | 63 A | 279 A | 255 A |
| 3RW5545-6HF04 | 9.722 kg | 315 A | 63 A | 279 A | 255 A |
| 3RW5544-6HF14 | 9.659 kg | 250 A | 50 A | 220 A | 200 A |
| 3RW5544-6HF04 | 9.696 kg | 250 A | 50 A | 220 A | 200 A |

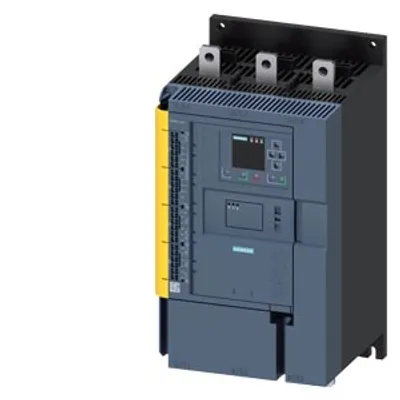

| 3RW5548-2HF14 | 11.539 kg | 570 A | 114 A | 504 A | 460 A |
| 3RW5548-2HF04 | 10.245 kg | 570 A | 114 A | 504 A | 460 A |
| 3RW5515-1HF14 | 2.205 kg | 25 A | 5 A | 22.3 A | 19.6 A |
| 3RW5513-1HF04 | 2.192 kg | 13 A | 2.5 A | 11.5 A | 10.5 A |
| 3RW5536-6HF14 | 8.698 kg | 171 A | 34 A | 153 A | 141 A |
| 3RW5536-6HF04 | 8.694 kg | 171 A | 34 A | 153 A | 141 A |
| 3RW5536-2HF14 | 8.686 kg | 171 A | 34 A | 153 A | 141 A |
| 3RW5534-2HF14 | 6.496 kg | 113 A | 23 A | 101 A | 89 A |

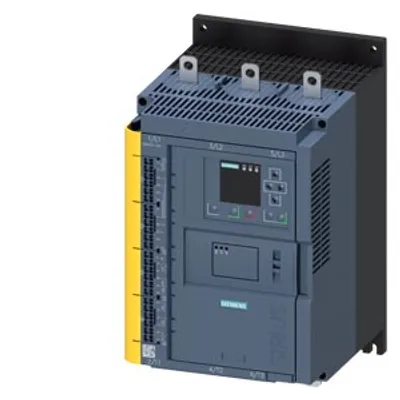

| 3RW5534-2HF04 | 6.465 kg | 113 A | 23 A | 101 A | 89 A |
Common to all listed parts
| product category | Hybrid switching devices |
| product designation | Failsafe soft starters |
| product type designation | 3RW55 |
| manufacturer's article number — of high feature HMI module usable | 3RW5980-0HF00 |
| manufacturer's article number — of communication module PROFINET standard usable | 3RW5980-0CS00 |
| manufacturer's article number — of communication module PROFINET high-feature usable | 3RW5950-0CH00 |
| manufacturer's article number — of communication module PROFIBUS usable | 3RW5980-0CP00 |
| manufacturer's article number — of communication module Modbus TCP usable | 3RW5980-0CT00 |
