Enclosure width 56 mm, XL Parts
Compare Enclosure width 56 mm, XL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — of the supplied switching contacts | Net Weight | minimum actuating force in directions of actuation | length of the sensor | manufacturer's article number — of the supplied basic switch |
|---|---|---|---|---|---|

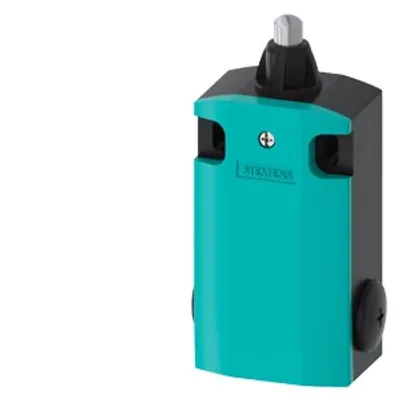

| 3SE5162-0EC02 | 1x 3SE5000-0MA00, 1x 3SE5060-0BA00 | 0.458 kg | 30 N | 125.3 mm | — |

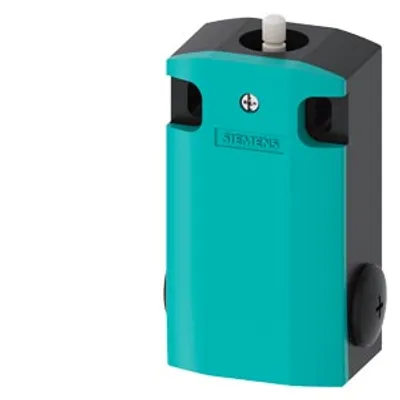

| 3SE5162-0DA00-1CA0 | 1x 3SE5000-0MA00, 1x 3SE5060-0MA00 | 0.429 kg | 30 N | 107.7 mm | — |

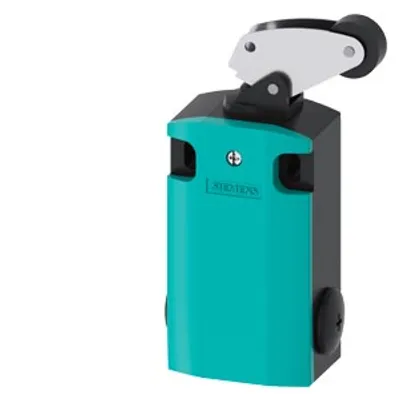

| 3SE5162-0CF01 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.481 kg | 10 N | 140 mm | 3SE5162-0CA00 |
| 3SE5162-0CE02 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.481 kg | 15 N | 141 mm | 3SE5162-0CA00 |
| 3SE5162-0CE01 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 477.99 g | 15 N | 141 mm | 3SE5162-0CA00 |

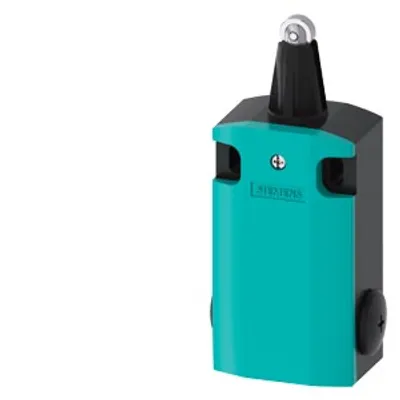

| 3SE5162-0CD02 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.48 kg | 30 N | 138.3 mm | 3SE5162-0CA00 |

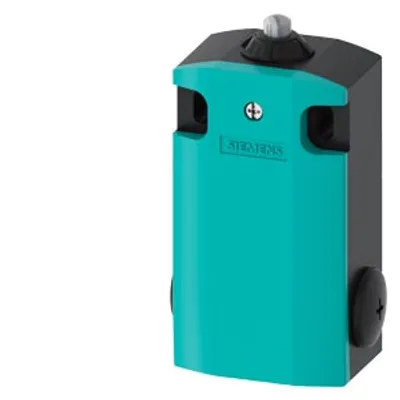

| 3SE5162-0CB01 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.443 kg | 30 N | 111.5 mm | 3SE5162-0CA00 |
| 3SE5162-0CA00-1CA0 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.423 kg | 30 N | 107.7 mm | — |
| 3SE5162-0CA00-1AJ0 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.423 kg | 30 N | 107.7 mm | 3SE5162-0CA00-1AJ0 |
| 3SE5162-0CA00 | 1x 3SE5000-0CA00, 1x 3SE5060-0CA00 | 0.418 kg | 30 N | 107.7 mm | — |

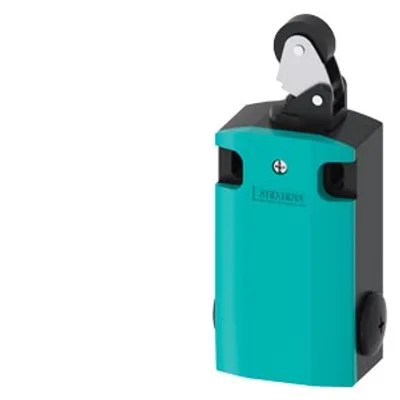

| 3SE5162-0BE01 | 1x 3SE5000-0BA00, 1x 3SE5060-0BA00 | 0.451 kg | 15 N | 141 mm | 3SE5162-0BA00 |
| 3SE5162-0BD02 | 1x 3SE5000-0BA00, 1x 3SE5060-0BA00 | 0.484 kg | 30 N | 138.3 mm | 3SE5162-0BA00 |
| 3SE5162-0BA00-1CA0 | 1x 3SE5000-0BA00, 1x 3SE5060-0BA00 | 0.413 kg | 30 N | 107.7 mm | — |
| 3SE5162-0BA00-1AJ0 | 1x 3SE5000-0BA00, 1x 3SE5060-0BA00 | 0.423 kg | 30 N | 107.7 mm | 3SE5162-0BA00-1AJ0 |
| 3SE5162-0BA00 | 1x 3SE5000-0BA00, 1x 3SE5060-0BA00 | 0.433 kg | 30 N | 107.7 mm | — |
Common to all listed parts
| product type designation | 3SE5 |
| product function positive opening | Yes |
| degree of pollution | class 3 |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 5 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
