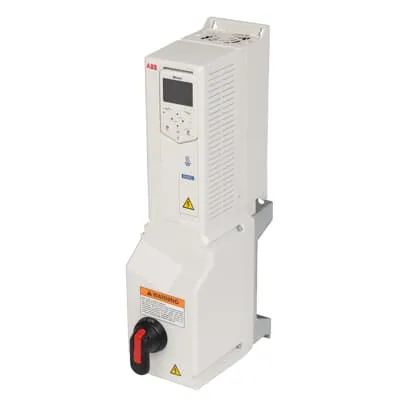

HVAC drive with circuit breaker disconnect US Parts
Compare HVAC drive with circuit breaker disconnect US
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product Net Weight | Enclosure Type NEMA | Input Voltage (Uin) | Output Current, Light-Overload Use (UL) | Output Power, Light-Overload Use (UL) |
|---|---|---|---|---|---|
| ACH580-PCR-273A-2 | 359 lb | Type1 | 208 … 240 V | 273 A | 100 Hp |
| ACH580-PCR-031A-2+B056 | 0 kg | Type12 | 208 … 240 V | 30.8 A | 10 Hp |
| ACH580-PCR-011A-6+B058 | 0 kg | Type3R | 500 … 600 V | 2.7 A | 2 Hp |
| ACH580-PCR-017A-6+B058 | 0 kg | Type3R | 500 … 600 V | 32 A | 30 Hp |
| ACH580-PCR-022A-6+B058 | 0 kg | Type3R | 500 … 600 V | 3.9 A | 3 Hp |
| ACH580-PCR-07A5-2+B056 | 0 kg | Type12 | 208 … 240 V | 7.5 A | 2 Hp |
| ACH580-PCR-06A6-2+B056 | 0 kg | Type12 | 208 … 240 V | 6.6 A | 1.5 Hp |
| ACH580-PCR-024A-2+B056 | 0 kg | Type12 | 208 … 240 V | 24.2 A | 7.5 Hp |
| ACH580-PCR-017A-2+B056 | 0 kg | Type12 | 208 … 240 V | 16.7 A | 5 Hp |
| ACH580-PCR-10A6-2+B056 | 0 kg | Type12 | 208 … 240 V | 10.6 A | 3 Hp |
| ACH580-PCR-046A-2+B056 | 0 kg | Type12 | 208 … 240 V | 46.2 A | 15 Hp |
| ACH580-PCR-032A-6+B058 | 0 kg | Type3R | 500 … 600 V | 52 A | 50 Hp |
| ACH580-PCR-059A-2+B056 | 0 kg | Type12 | 208 … 240 V | 59.4 A | 20 Hp |
| ACH580-PCR-027A-6+B058 | 0 kg | Type3R | 500 … 600 V | 41 A | 40 Hp |
| ACH580-PCR-09A0-6+B058 | 0 kg | Type3R | 500 … 600 V | 27 A | 25 Hp |
| ACH580-PCR-022A-6 | 60 lb | Type1 | 500 … 600 V | 3.9 A | 3 Hp |
| ACH580-PCR-273A-2+B058 | 0 kg | Type3R | 208 … 240 V | 273 A | 100 Hp |
| ACH580-PCR-211A-2+B058 | 0 kg | Type3R | 208 … 240 V | 211 A | 75 Hp |
| ACH580-PCR-032A-6 | 60 lb | Type1 | 500 … 600 V | 52 A | 50 Hp |
| ACH580-PCR-041A-6 | 117 lb | Type1 | 500 … 600 V | 62 A | 60 Hp |
| ACH580-PCR-062A-6 | 117 lb | Type1 | 500 … 600 V | 77 A | 75 Hp |
| ACH580-PCR-017A-6 | 22 lb | Type1 | 500 … 600 V | 32 A | 30 Hp |
| ACH580-PCR-027A-6 | 60 lb | Type1 | 500 … 600 V | 41 A | 40 Hp |
| ACH580-PCR-052A-6 | 117 lb | Type1 | 500 … 600 V | 6.1 A | 5 Hp |
Common to all listed parts
| Customs Tariff Number | 85044080 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
| Frequency (f) | 50/60 Hz |
