HVAC drive with disconnect US Parts

ABB

ACH580-PDR-273A-2+B056

HVAC drive with disconnect US, UL: Pld 100 Hp, 273 A ( )

ABB

ACH580-PDR-04A6-2+B058

HVAC drive with disconnect US, UL: Pld 1 Hp, 4.6 A ( )

ABB

ACH580-PDR-031A-2+B058

HVAC drive with disconnect US, UL: Pld 10 Hp, 30.8 A ( )

ABB

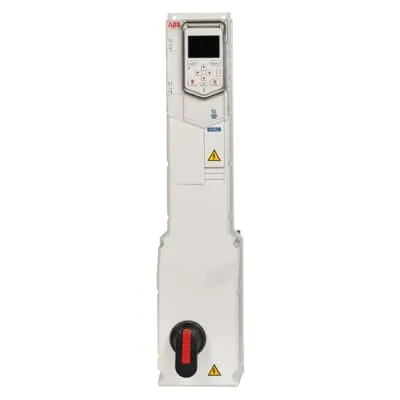

ACH580-PDR-169A-2+B056

HVAC drive with disconnect US, UL: Pld 60 Hp, 169 A ( )

ABB

ACH580-PDR-07A5-2+B058

HVAC drive with disconnect US, UL: Pld 2 Hp, 7.5 A ( )

ABB

ACH580-PDR-211A-2+B056

HVAC drive with disconnect US, UL: Pld 75 Hp, 211 A ( )

ABB

ACH580-PDR-017A-2+B058

HVAC drive with disconnect US, UL: Pld 5 Hp, 16.7 A ( )

ABB

ACH580-PDR-06A6-2+B058

HVAC drive with disconnect US, UL: Pld 1.5 Hp, 6.6 A ( )

ABB

ACH580-PDR-10A6-2+B058

HVAC drive with disconnect US, UL: Pld 3 Hp, 10.6 A ( )

ABB

ACH580-PDR-024A-2+B058

HVAC drive with disconnect US, UL: Pld 7.5 Hp, 24.2 A ( )

ABB

ACH580-PDR-156A-4+B056

HVAC drive with disconnect US, UL: Pld 125 Hp, 156 A ( )

ABB

ACH580-PDR-03A0-4+B058

HVAC drive with disconnect US, UL: Pld 1.5 Hp, 3 A ( )

ABB

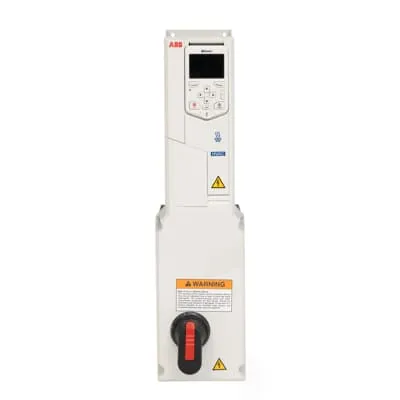

ACH580-PDR-031A-2

HVAC drive with disconnect US, UL: Pld 10 Hp, 30.8 A

ABB

ACH580-PDR-024A-2

HVAC drive with disconnect US, UL: Pld 7.5 Hp, 24.2 A

ABB

ACH580-PDR-017A-2

HVAC drive with disconnect US, UL: Pld 5 Hp, 16.7 A

ABB

ACH580-PDR-046A-2

HVAC drive with disconnect US, UL: Pld 15 Hp, 46.2 A

ABB

ACH580-PDR-041A-6+B056

HVAC drive with disconnect US, UL: Pld 40 Hp, 41 A ( )

ABB

ACH580-PDR-011A-6+B056

HVAC drive with disconnect US, UL: Pld 10 Hp, 11 A ( )

ABB

ACH580-PDR-06A1-6

HVAC drive with disconnect US, UL: Pld 5 Hp, 6.1 A

ABB

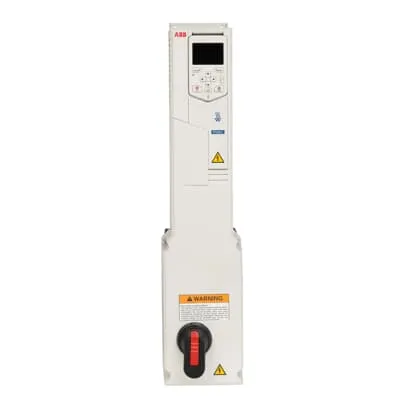

ACH580-PDR-09A0-6

HVAC drive with disconnect US, UL: Pld 7.5 Hp, 9 A

ABB

ACH580-PDR-011A-6

HVAC drive with disconnect US, UL: Pld 10 Hp, 11 A

ABB

ACH580-PDR-03A5-4+B058

HVAC drive with disconnect US, UL: Pld 2 Hp, 3.5 A ( )

ABB

ACH580-PDR-143A-2+B058

HVAC drive with disconnect US, UL: Pld 50 Hp, 143 A ( )

ABB

ACH580-PDR-169A-2+B058

HVAC drive with disconnect US, UL: Pld 60 Hp, 169 A ( )

Compare HVAC drive with disconnect US

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product Net Weight	Enclosure Type NEMA	Input Voltage (Uin)	Output Current, Light-Overload Use (UL)	Output Power, Light-Overload Use (UL)
ACH580-PDR-273A-2+B056	0 kg	Type12	208 … 240 V	273 A	100 Hp
ACH580-PDR-04A6-2+B058	0 kg	Type3R	208 … 240 V	4.6 A	1 Hp
ACH580-PDR-031A-2+B058	0 kg	Type3R	208 … 240 V	30.8 A	10 Hp
ACH580-PDR-169A-2+B056	0 kg	Type12	208 … 240 V	169 A	60 Hp
ACH580-PDR-07A5-2+B058	0 kg	Type3R	208 … 240 V	7.5 A	2 Hp
ACH580-PDR-211A-2+B056	0 kg	Type12	208 … 240 V	211 A	75 Hp
ACH580-PDR-017A-2+B058	0 kg	Type3R	208 … 240 V	16.7 A	5 Hp
ACH580-PDR-06A6-2+B058	0 kg	Type3R	208 … 240 V	6.6 A	1.5 Hp
ACH580-PDR-10A6-2+B058	0 kg	Type3R	208 … 240 V	10.6 A	3 Hp
ACH580-PDR-024A-2+B058	0 kg	Type3R	208 … 240 V	24.2 A	7.5 Hp
ACH580-PDR-156A-4+B056	0 kg	Type12	380 … 480 V	156 A	125 Hp
ACH580-PDR-03A0-4+B058	0 kg	Type3R	380 … 480 V	3 A	1.5 Hp
ACH580-PDR-031A-2	22 lb	Type1	208 … 240 V	30.8 A	10 Hp
ACH580-PDR-024A-2	22 lb	Type1	208 … 240 V	24.2 A	7.5 Hp
ACH580-PDR-017A-2	18.1 lb	Type1	208 … 240 V	16.7 A	5 Hp
ACH580-PDR-046A-2	39 lb	Type1	208 … 240 V	46.2 A	15 Hp
ACH580-PDR-041A-6+B056	0 kg	Type12	500 … 600 V	41 A	40 Hp
ACH580-PDR-011A-6+B056	0 kg	Type12	500 … 600 V	11 A	10 Hp
ACH580-PDR-06A1-6	22 lb	Type1	500 … 600 V	6.1 A	5 Hp
ACH580-PDR-09A0-6	22 lb	Type1	500 … 600 V	9 A	7.5 Hp
ACH580-PDR-011A-6	22 lb	Type1	500 … 600 V	11 A	10 Hp
ACH580-PDR-03A5-4+B058	0 kg	Type3R	380 … 480 V	3.5 A	2 Hp
ACH580-PDR-143A-2+B058	0 kg	Type3R	208 … 240 V	143 A	50 Hp
ACH580-PDR-169A-2+B058	0 kg	Type3R	208 … 240 V	169 A	60 Hp

Common to all listed parts

Customs Tariff Number	85044080
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Number of Phases	3-phase
Frequency (f)	50/60 Hz
