HVAC packaged drive with e-clipse bypass and circuit breaker disconnect US Parts
Compare HVAC packaged drive with e-clipse bypass and circuit breaker disconnect US
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product Net Weight | Enclosure Type NEMA | Input Voltage (Uin) | Output Current, Light-Overload Use (UL) | Output Power, Light-Overload Use (UL) |
|---|---|---|---|---|---|
| ACH580-BCR-114A-2+B056 | 0 kg | Type12 | 208 … 240 V | 114 A | 40 Hp |
| ACH580-BCR-024A-2+B056 | 0 kg | Type12 | 208 … 240 V | 24.2 A | 7.5 Hp |
| ACH580-BCR-10A6-2+B056 | 84 lb | Type12 | 208 … 240 V | 10.6 A | 3 Hp |
| ACH580-BCR-143A-2+B056 | 0 kg | Type12 | 208 … 240 V | 143 A | 50 Hp |
| ACH580-BCR-075A-2+B056 | 0 kg | Type12 | 208 … 240 V | 74.8 A | 25 Hp |
| ACH580-BCR-017A-2+B056 | 84 lb | Type12 | 208 … 240 V | 16.7 A | 5 Hp |
| ACH580-BCR-143A-2+B058 | 0 kg | Type3R | 208 … 240 V | 143 A | 50 Hp |
| ACH580-BCR-169A-2+B058 | 0 kg | Type3R | 208 … 240 V | 169 A | 60 Hp |

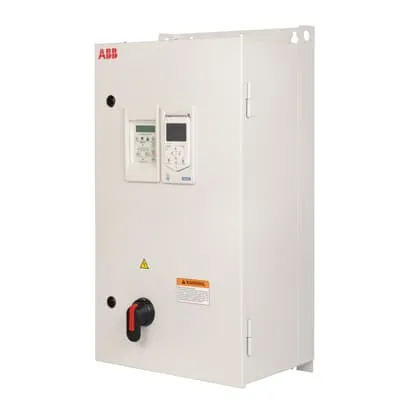

| ACH580-BCR-414A-4+B058 | 0 kg | Type3R | 440 … 480 V | 414 A | 350 Hp |
| ACH580-BCR-273A-2+B058 | 0 kg | Type3R | 208 … 240 V | 273 A | 100 Hp |
| ACH580-BCR-062A-6+B056 | 0 kg | Type12 | 500 … 600 V | 62 A | 60 Hp |
| ACH580-BCR-041A-6+B056 | 0 kg | Type12 | 500 … 600 V | 41 A | 40 Hp |
| ACH580-BCR-144A-6+B056 | 0 kg | Type12 | 500 … 600 V | 144 A | 150 Hp |
| ACH580-BCR-02A7-6+B058 | 0 kg | Type3R | 500 … 600 V | 2.7 A | 2 Hp |
| ACH580-BCR-03A9-6+B058 | 0 kg | Type3R | 500 … 600 V | 3.9 A | 3 Hp |
| ACH580-BCR-06A1-6+B058 | 0 kg | Type3R | 500 … 600 V | 6.1 A | 5 Hp |
| ACH580-BCR-114A-2+B058 | 0 kg | Type3R | 208 … 240 V | 114 A | 40 Hp |
| ACH580-BCR-077A-6+B058 | 0 kg | Type3R | 500 … 600 V | 77 A | 75 Hp |
| ACH580-BCR-144A-6+B058 | 0 kg | Type3R | 500 … 600 V | 144 A | 150 Hp |
| ACH580-BCR-099A-6+B058 | 0 kg | Type3R | 500 … 600 V | 99 A | 100 Hp |
| ACH580-BCR-125A-6+B058 | 0 kg | Type3R | 500 … 600 V | 125 A | 125 Hp |
| ACH580-BCR-062A-6+B058 | 0 kg | Type3R | 500 … 600 V | 62 A | 60 Hp |

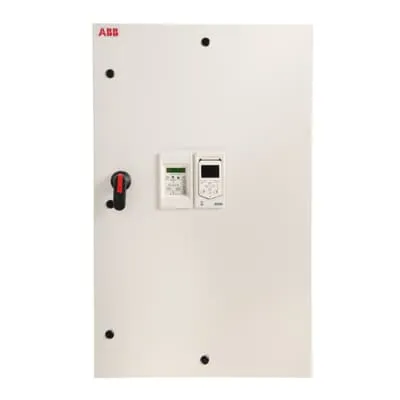

| ACH580-BCR-027A-4 | 139 lb | Type1 | 440 … 480 V | 27 A | 20 Hp |
| ACH580-BCR-02A1-4+B056 | 0 kg | Type12 | 440 … 480 V | 2.1 A | 1 Hp |
Common to all listed parts
| Customs Tariff Number | 85044080 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
| Frequency (f) | 50/60 Hz |
