Single drive module Parts
Compare Single drive module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Current, Heavy-Duty Use (IHD) | Output Power, Normal Use (Pn) | Output Power, Heavy-Duty Use (PHD) |
|---|---|---|---|---|---|
| ACS880-04-505A-3+E208+N5700 | 505 A | 485 A | 361 A | 250 kW | 200 kW |

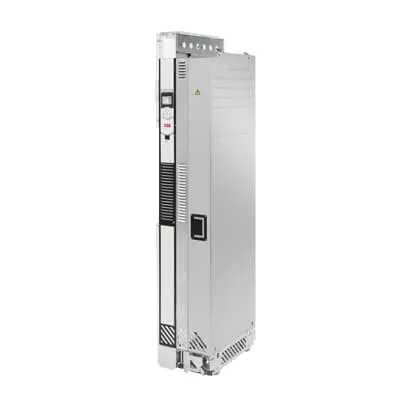

| ACS880-04-522A-7 | 522 A | 505 A | 455 A | 500 kW | 450 kW |

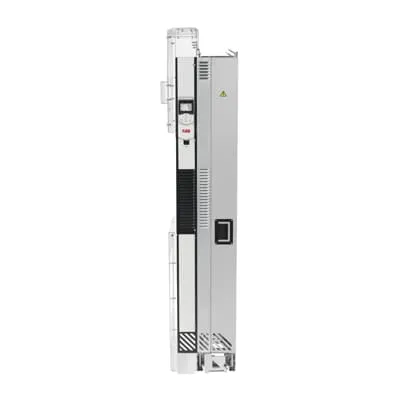

| ACS880-04-650A-7+D150+E200+P905 | 650 A | 630 A | 571 A | 630 kW | 560 kW |
| ACS880-04-590A-7+E200+H356+P905 | 590 A | 571 A | 505 A | 560 kW | 500 kW |

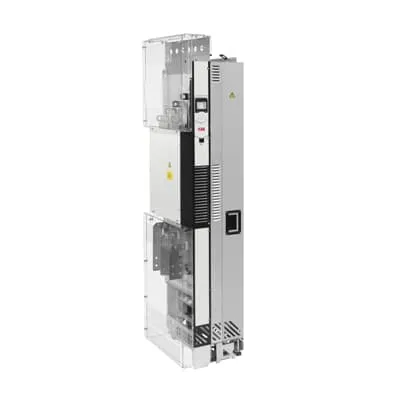

| ACS880-04-650A-7+D150 | 650 A | 630 A | 571 A | 630 kW | 560 kW |
| ACS880-04-721A-7+D150+H356 | 721 A | 705 A | 571 A | 710 kW | 560 kW |
| ACS880-04-650A-7+D150+H356 | 650 A | 630 A | 571 A | 630 kW | 560 kW |
| ACS880-04-635A-5+D150 | 635 A | 623 A | 477 A | 450 kW | 315 kW |

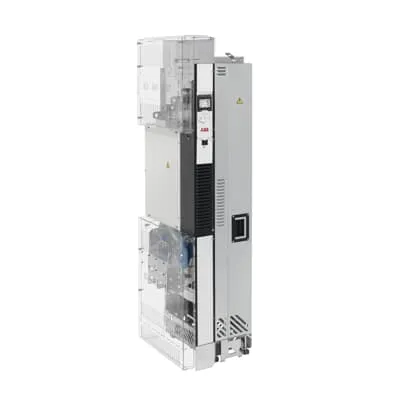

| ACS880-04-330A-7+D150 | 330 A | 320 A | 255 A | 315 kW | 250 kW |
| ACS880-04-635A-5+D150+H356 | 635 A | 623 A | 477 A | 450 kW | 315 kW |
| ACS880-04-635A-5+D150+P905 | 635 A | 623 A | 477 A | 450 kW | 315 kW |
| ACS880-04-585A-3+D150 | 820 A | 810 A | 625 A | 450 kW | 355 kW |
| ACS880-04-650A-3+D150 | 880 A | 865 A | 725 A | 500 kW | 400 kW |
| ACS880-04-430A-7+D150+P905 | 430 A | 420 A | 360 A | 400 kW | 350 kW |
| ACS880-04-370A-7+D150+H356 | 370 A | 360 A | 325 A | 355 kW | 315 kW |
| ACS880-04-650A-7+D150+P905 | 650 A | 630 A | 571 A | 630 kW | 560 kW |
| ACS880-04-721A-7+D150+P905 | 721 A | 705 A | 571 A | 710 kW | 560 kW |
| ACS880-04-585A-3+H356+P905 | 820 A | 810 A | 625 A | 450 kW | 355 kW |
| ACS880-04-650A-3+H356+P905 | 880 A | 865 A | 725 A | 500 kW | 400 kW |
| ACS880-04-583A-5+P905+D150 | 583 A | 573 A | 414 A | 400 kW | 250 kW |
| ACS880-04-430A-7+D150+H356+P905 | 430 A | 420 A | 360 A | 400 kW | 350 kW |
| ACS880-04-370A-7+D150+H356+P905 | 370 A | 360 A | 325 A | 355 kW | 315 kW |
| ACS880-04-370A-7+D150+P905 | 370 A | 360 A | 325 A | 355 kW | 315 kW |
| ACS880-04-590A-7+D150+P905 | 590 A | 571 A | 505 A | 560 kW | 500 kW |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 47.5 ... 63 Hz |
