3K switch disconnectors Parts

Siemens

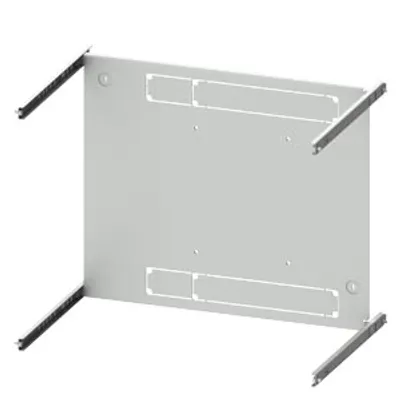

8PQ6000-2BA68

Mounting plate 3KL715, 3KA715, 3 or 4-pole

Siemens

8PQ6000-2BA67

Mounting plate 3KL715, 3KA715, 3 or 4-pole

Siemens

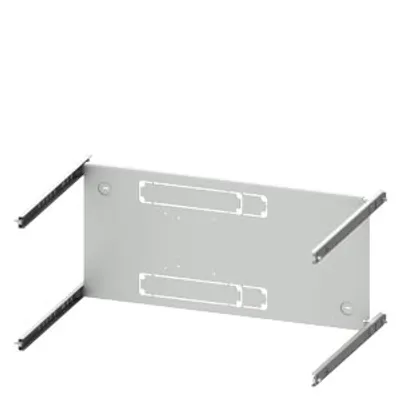

8PQ6000-2BA66

Mounting plate 3KL5 (125 A), vertical, 3 or 4-pole

Siemens

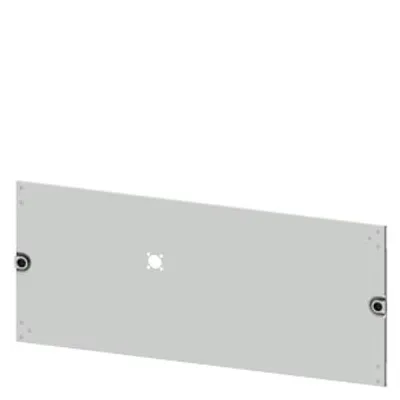

8PQ2030-8BA02

Cover 3KL713, 3KA713, 3 or 4-pole, H: 300 mm W: 800 mm

Siemens

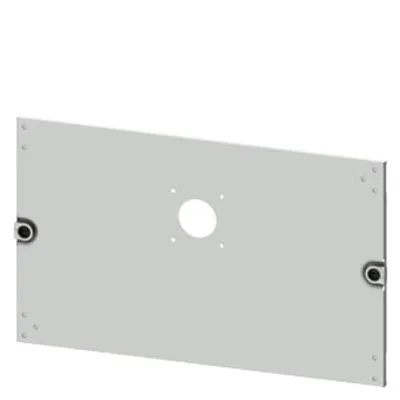

8PQ2030-6BA06

Cover 3KL5 up to 125 A, 3 or 4-pole, H: 300 mm W: 600 mm

Siemens

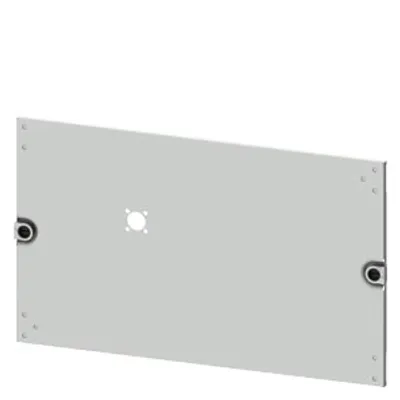

8PQ2030-6BA05

Cover 3KL713, 3KA713, 3 or 4-pole, H: 300 mm W: 600 mm

Siemens

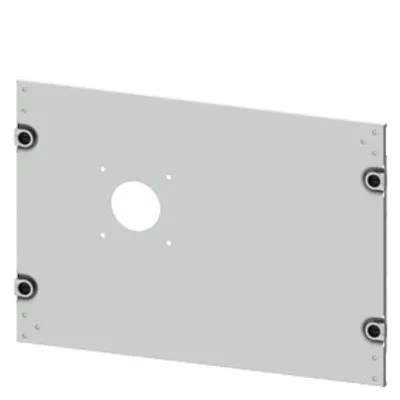

8PQ2035-6BA10

Cover 3KL5 up to 400 A, 3 or 4-pole, H: 350 mm W: 600 mm

Siemens

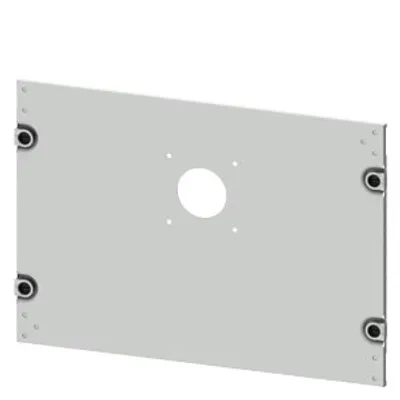

8PQ2035-6BA08

Cover 3KL5 up to 400 A, 3 or 4-pole, H: 350 mm W: 600 mm

Siemens

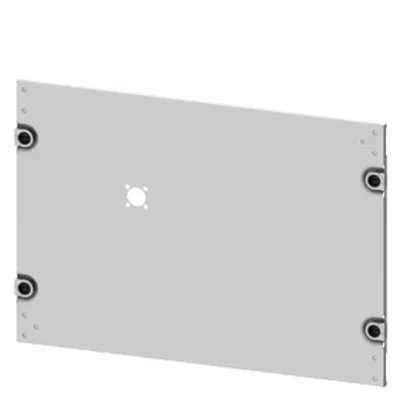

8PQ2035-6BA07

Cover 3KL714, 3KA714, 3 or 4-pole, H: 350 mm W: 600 mm

Siemens

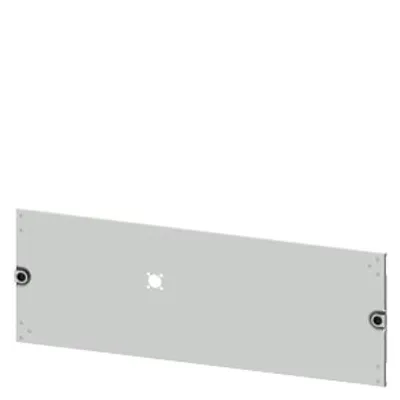

8PQ2025-8BA02

Cover 3KL712, 3KA712, 3 or 4-pole, H: 250 mm W: 800 mm

Siemens

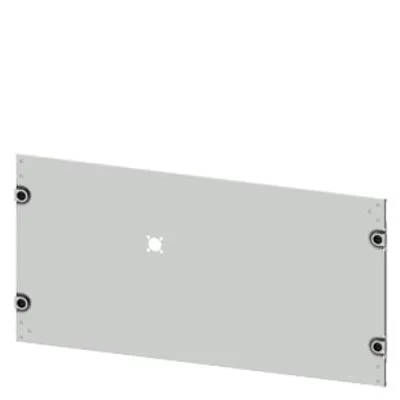

8PQ2035-8BA04

Cover 3KL714, 3KA714, 3 or 4-pole, H: 350 mm W: 800 mm

Siemens

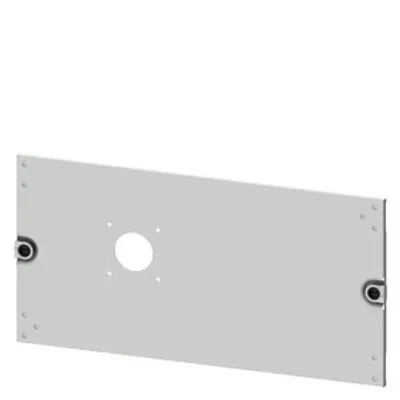

8PQ2025-6BA05

Cover 3KL5 up to 125 A, 3 or 4-pole, H: 250 mm W: 600 mm

Siemens

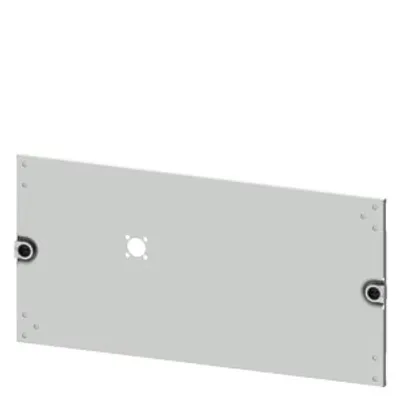

8PQ2025-6BA04

Cover 3KL712, 3KA712, 3 or 4-pole, H: 250 mm W: 600 mm

Siemens

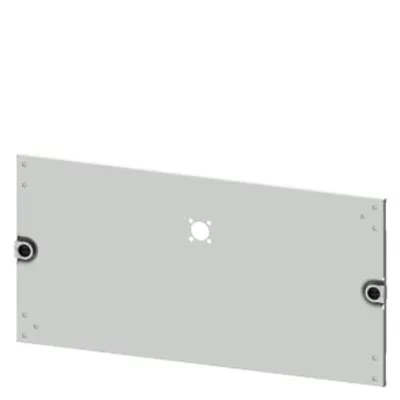

8PQ2025-6BA03

Cover 3KL712, 3KA712, 3 or 4-pole, H: 250 mm W: 600 mm

Siemens

8PQ6000-2BA72

Mounting plate 3KL5 (400 A), vertical, 3 or 4-pole

Siemens

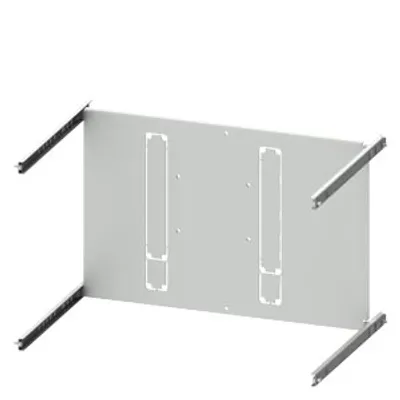

8PQ6000-2BA71

Mounting plate 3KL5 (400 A), horizontal, 3 or 4-pole

Siemens

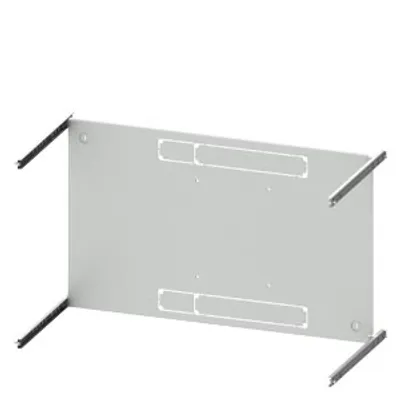

8PQ6000-2BA70

Mounting plate 3KL715, 3KA715, 3 or 4-pole

Siemens

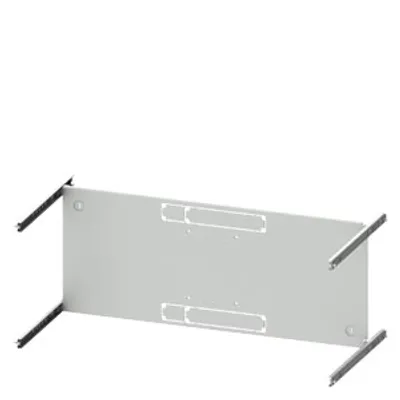

8PQ6000-2BA61

Mounting plate 3KL713, 3KA713, 3 or 4-pole

Siemens

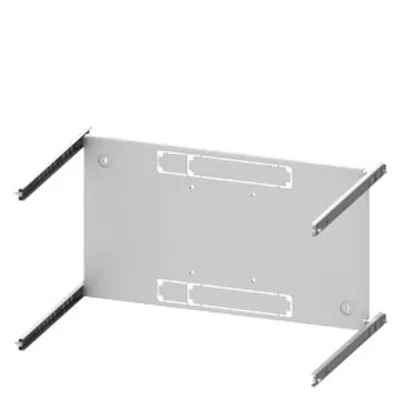

8PQ6000-2BA60

Mounting plate 3KL713, 3KA713, 3 or 4-pole

Siemens

8PQ6000-2BA58

Mounting plate 3KL713, 3KA713, 3 or 4-pole

Siemens

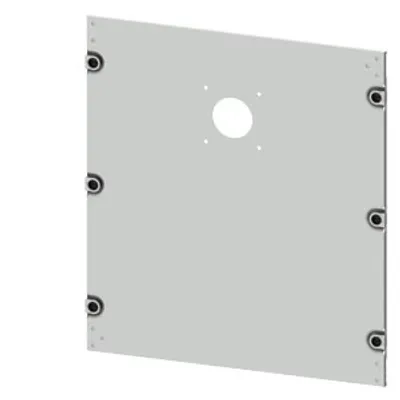

8PQ2055-6BA02

Cover 3KL61 up to 630 A, 3 or 4-pole, H: 550 mm W: 600 mm

Compare 3K switch disconnectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	height	width	installation width for cabinet installation	mounting height for device equipment can be used	Net Weight
8PQ2030-8BA02	300 mm	800 mm	800 mm	300 mm	1.77 kg
8PQ2030-6BA06	300 mm	600 mm	600 mm	300 mm	1.28 kg
8PQ2030-6BA05	300 mm	600 mm	600 mm	300 mm	1.28 kg
8PQ2035-6BA10	350 mm	600 mm	600 mm	350 mm	1.49 kg
8PQ2035-6BA08	350 mm	600 mm	600 mm	350 mm	1.49 kg
8PQ2035-6BA07	350 mm	600 mm	600 mm	350 mm	1.49 kg
8PQ2025-8BA02	250 mm	800 mm	800 mm	250 mm	1.49 kg
8PQ2035-8BA04	350 mm	800 mm	800 mm	350 mm	2.311 kg
8PQ2025-6BA05	250 mm	600 mm	600 mm	250 mm	1.08 kg
8PQ2025-6BA04	250 mm	600 mm	600 mm	250 mm	1.345 kg
8PQ2025-6BA03	250 mm	600 mm	600 mm	250 mm	1.08 kg
8PQ2055-6BA02	550 mm	600 mm	600 mm	550 mm	2.31 kg

Common to all listed parts

design of the surface	powder-coated
depth	10 mm
material	sheet-steel
reference code according to IEC 81346-2	UC
