Enclosure – Panelling sections Parts

Showing 1–18 of 18 parts

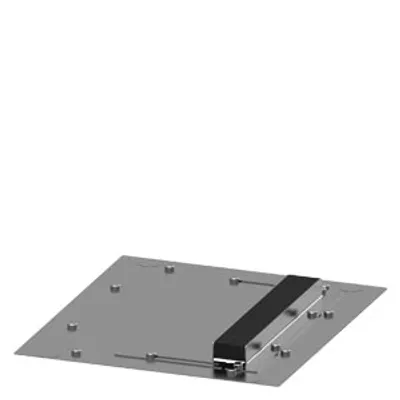

Siemens 8PQ2300-4BA14 – Roof plate with cable entry IP40, W: 350 mm D: 400 mm
Siemens
8PQ2300-4BA14

Roof plate with cable entry IP40, W: 350 mm D: 400 mm

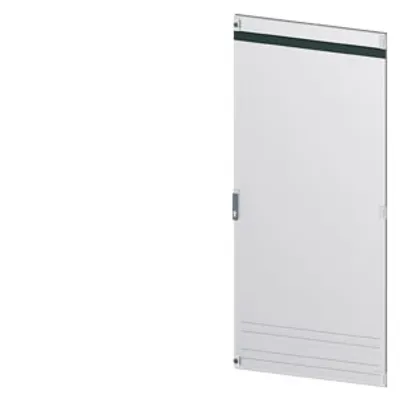

Siemens 8PQ2197-0BA41 – Door IP40, W: 850 mm lock: rotary handle for profile semicylinder hinge: right
Siemens
8PQ2197-0BA41

Door IP40, W: 850 mm lock: rotary handle for profile…

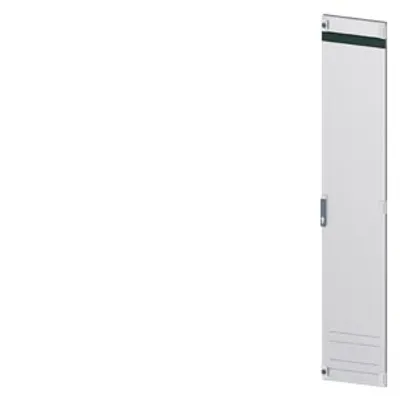

Siemens 8PQ2197-0BA40 – Door IP40, W: 350 mm lock: rotary handle for profile semicylinder hinge: right
Siemens
8PQ2197-0BA40

Door IP40, W: 350 mm lock: rotary handle for profile…

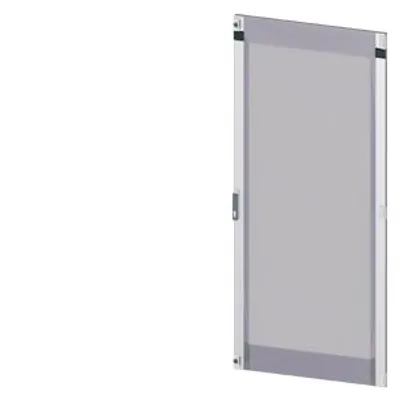

Siemens 8PQ2197-0BA38 – Glass door Giugiaro IP55, W: 850 mm, lock: rotary handle for profile semicylinder, hinge: right
Siemens
8PQ2197-0BA38

Glass door Giugiaro IP55, W: 850 mm

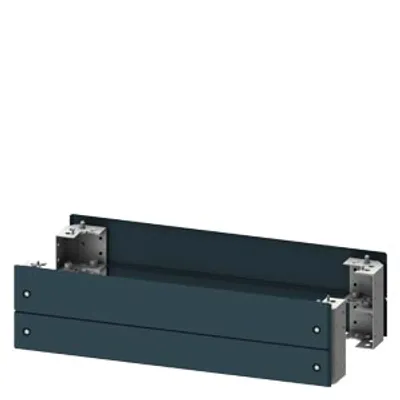

Siemens 8PQ1020-0BA02 – Bases with cover H: 200 mm W: 850 mm
Siemens
8PQ1020-0BA02

Bases with cover H: 200 mm W: 850 mm

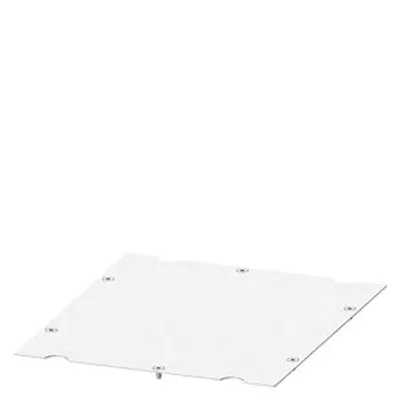

Siemens 8PQ2300-4BA16 – Floor plate IP55, W: 350 mm D: 400 mm
Siemens
8PQ2300-4BA16

Floor plate IP55, W: 350 mm D: 400 mm

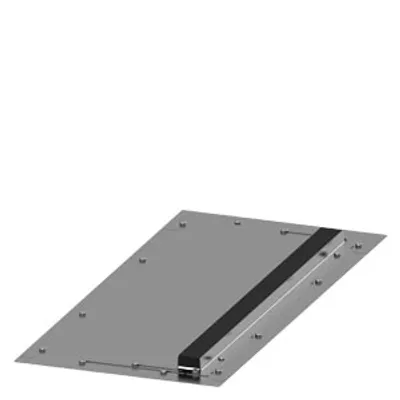

Siemens 8PQ2300-4BA15 – Roof plate with cable entry IP40, W: 850 mm D: 400 mm
Siemens
8PQ2300-4BA15

Roof plate with cable entry IP40, W: 850 mm D: 400 mm

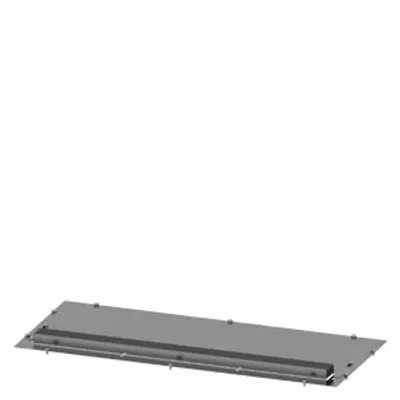

Siemens 8PQ2300-4BA20 – Floor plate with cable entry IP40, W: 850 mm D: 400 mm
Siemens
8PQ2300-4BA20

Floor plate with cable entry IP40, W: 850 mm D: 400 mm

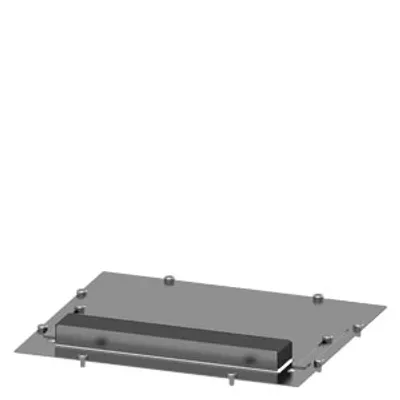

Siemens 8PQ2300-4BA18 – Floor plate with cable entry IP40, W: 350 mm D: 400 mm
Siemens
8PQ2300-4BA18

Floor plate with cable entry IP40, W: 350 mm D: 400 mm

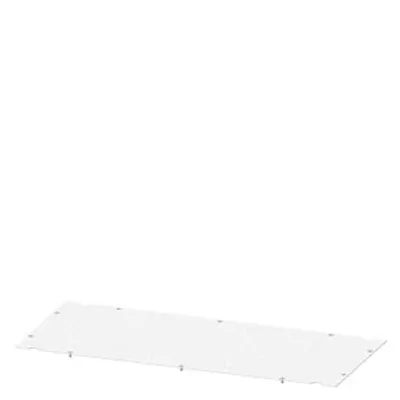

Siemens 8PQ2300-4BA17 – Floor plate IP55, W: 850 mm D: 400 mm
Siemens
8PQ2300-4BA17

Floor plate IP55, W: 850 mm D: 400 mm

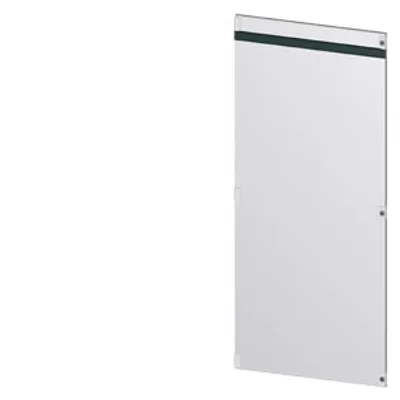

Siemens 8PQ2197-0BA07 – Door IP55, W: 850 mm lock: double-bit, hinge: left
Siemens
8PQ2197-0BA07

Door IP55, W: 850 mm lock: double-bit, hinge: left

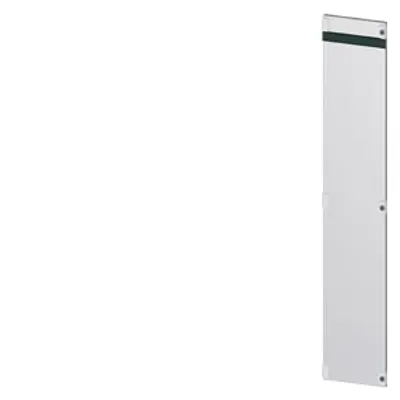

Siemens 8PQ2197-0BA06 – Door IP55, W: 350 mm lock: double-bit, hinge: left
Siemens
8PQ2197-0BA06

Door IP55, W: 350 mm lock: double-bit, hinge: left

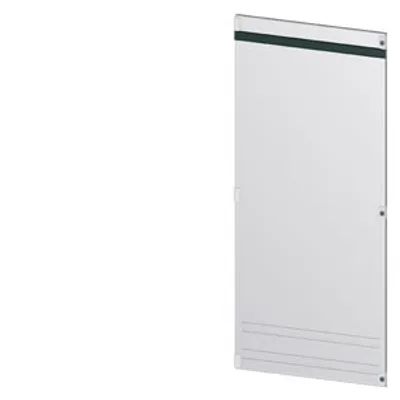

Siemens 8PQ2197-0BA04 – Door IP40, W: 850 mm lock: double-bit, hinge: left
Siemens
8PQ2197-0BA04

Door IP40, W: 850 mm lock: double-bit, hinge: left

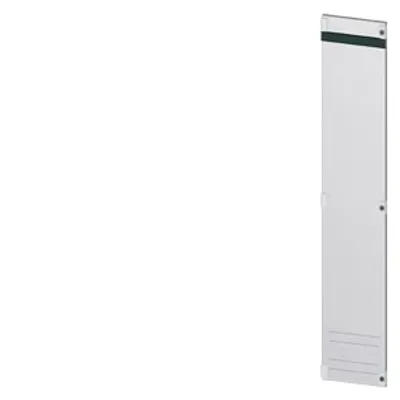

Siemens 8PQ2197-0BA03 – Door IP40, W: 350 mm lock: double-bit, hinge: left
Siemens
8PQ2197-0BA03

Door IP40, W: 350 mm lock: double-bit, hinge: left

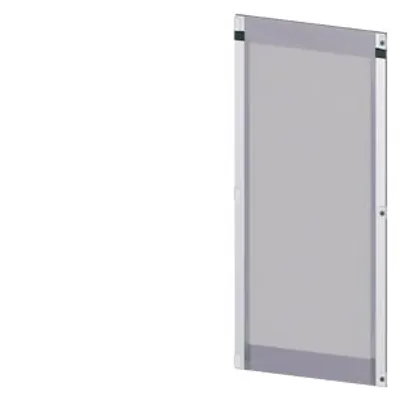

Siemens 8PQ2197-0BA01 – Glass door Giugiaro IP55, W: 850 mm, lock: double-bit, hinge: left
Siemens
8PQ2197-0BA01

Glass door Giugiaro IP55, W: 850 mm, lock: double-bit

Compare Enclosure – Panelling sections

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNproduct designationdesign of the productcolorheightNet Weight
8PQ2300-4BA14top plateWith cable entrymiscellaneous25.5 mm1.985 kg
8PQ2197-0BA41Door—light grey2 000 mm25.6 kg
8PQ2197-0BA40Door—light grey2 000 mm12.1 kg
8PQ2197-0BA38Transparent doorIP55light grey2 000 mm28.5 kg
8PQ1020-0BA02Baseheight 200 mmblue green basic200 mm9.728 kg
8PQ2300-4BA16bottom plateIP55 unventilatedmiscellaneous1.5 mm1.3 kg
8PQ2300-4BA15top plateWith cable entrymiscellaneous25.5 mm4.775 kg

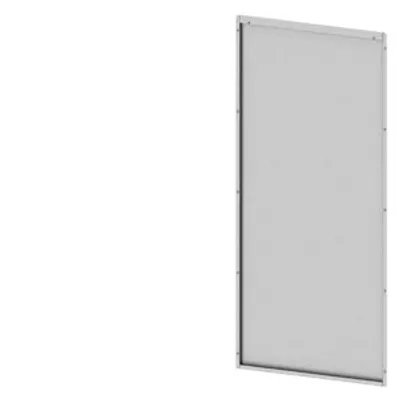

8PQ2420-0BA04Rear panelALPHAlight grey2 000 mm23.6 kg

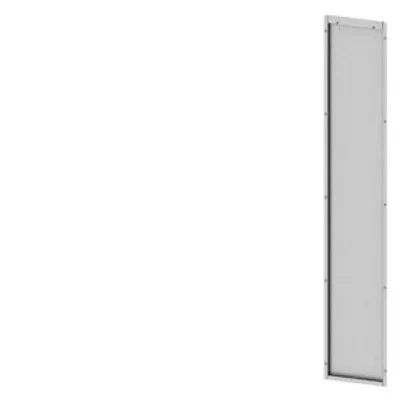

8PQ2420-0BA03Rear panelALPHAlight grey2 000 mm10.5 kg

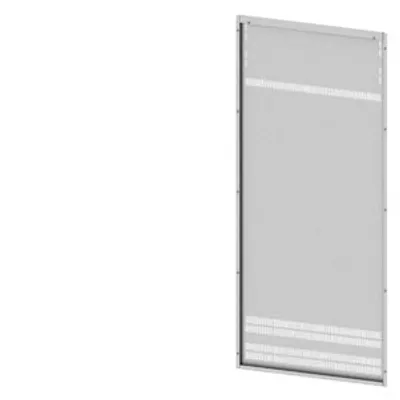

8PQ2420-0BA02Rear panelALPHAmiscellaneous2 000 mm21.8 kg
8PQ2300-4BA20bottom platecable entrymiscellaneous25.5 mm3.705 kg
8PQ2300-4BA18bottom platecable entrymiscellaneous25.5 mm1.46 kg
8PQ2300-4BA17bottom plateIP55 unventilatedmiscellaneous1.5 mm3.671 kg
8PQ2197-0BA07DoorIP55light grey2 000 mm27.91 kg
8PQ2197-0BA06DoorIP55light grey2 000 mm14.3 kg
8PQ2197-0BA04DoorIP40light grey2 000 mm25.47 kg
8PQ2197-0BA03DoorIP40light grey2 000 mm11.82 kg
8PQ2197-0BA01Transparent doorIP55light grey2 000 mm28 kg

Common to all listed parts

materialsheet-steel
